CA/CE-Series GigE Area Scan Camera·User Manual

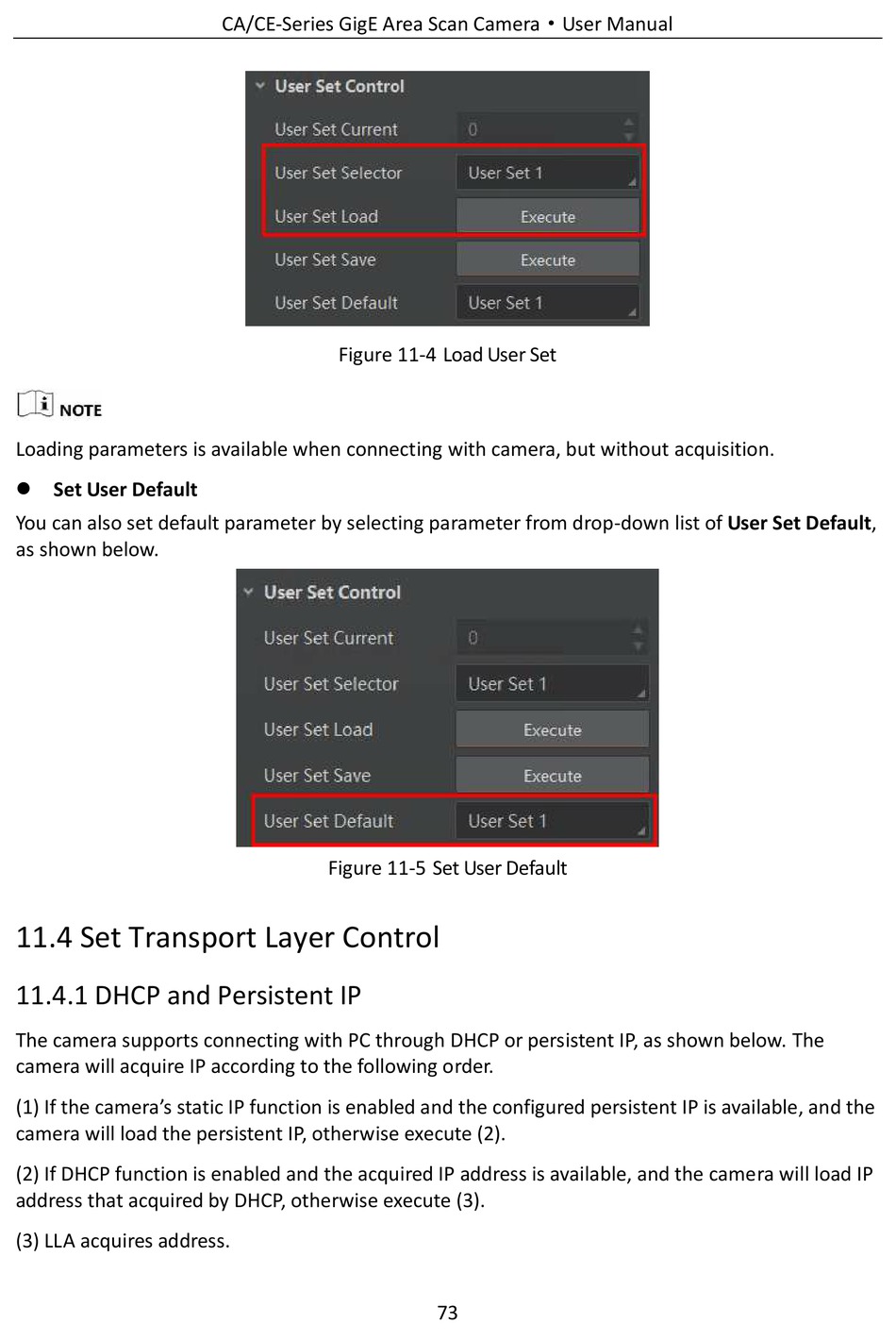

Figure 11-4 Load User Set
Loading parameters is available when connecting with camera, but without acquisition.
 Set User Default
You can also set default parameter by selecting parameter from drop-down list of User Set Default,
as shown below.
Figure 11-5 Set User Default

11.4 Set Transport Layer Control

11.4.1 DHCP and Persistent IP

The camera supports connecting with PC through DHCP or persistent IP, as shown below. The
camera will acquire IP according to the following order.
(1) If the camera's static IP function is enabled and the configured persistent IP is available, and the
camera will load the persistent IP, otherwise execute (2).
(2) If DHCP function is enabled and the acquired IP address is available, and the camera will load IP
address that acquired by DHCP, otherwise execute (3).
(3) LLA acquires address.
73
