CA/CE-Series GigE Area Scan Camera·User Manual

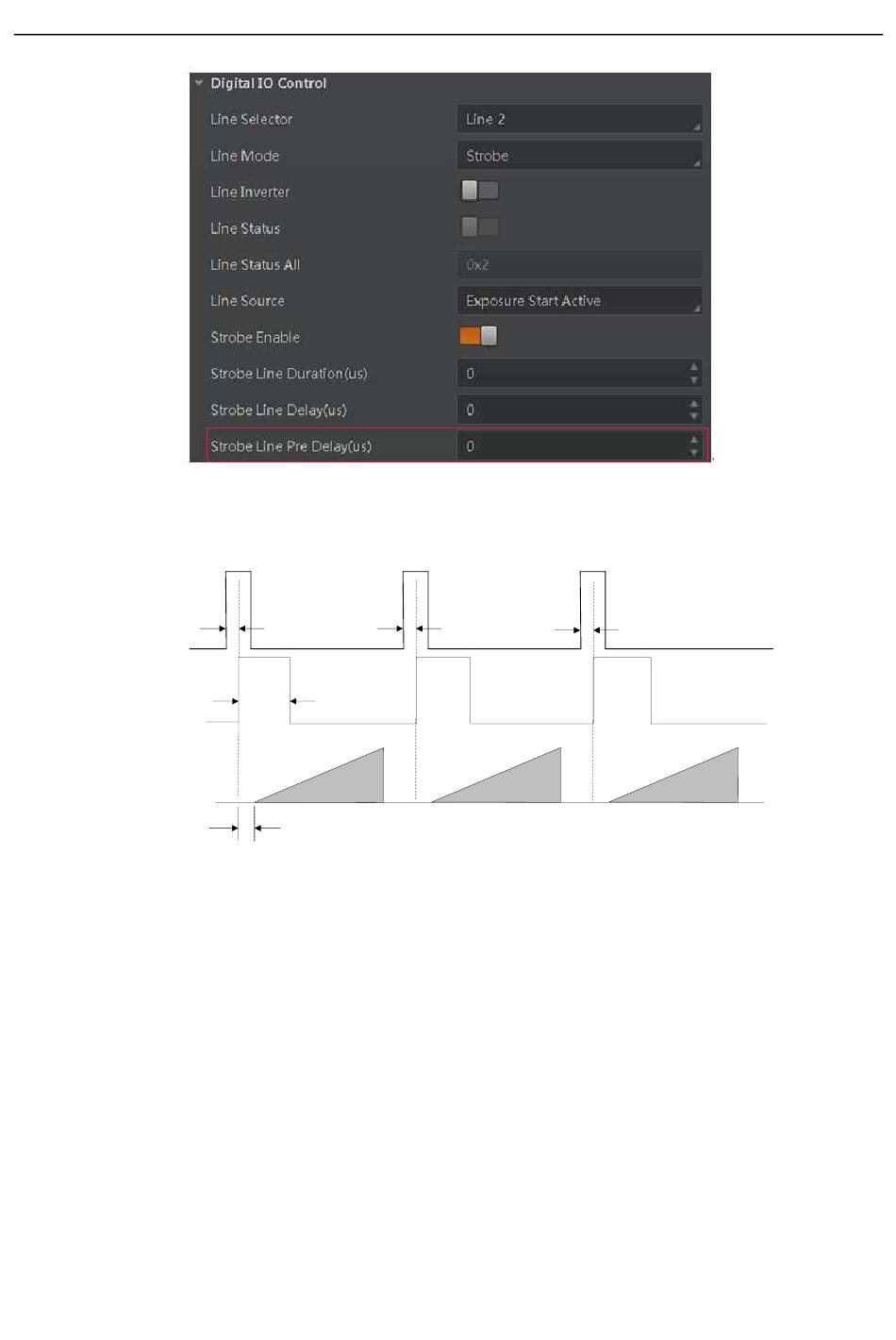

Figure 8-7 Set Strobe Line Pre Delay
The sequence diagram of strobe line pre delay is shown below.
Trigger_in 3
Trigger_in 2
Trigger_in 1
Trigger Trigger
Trigger
delay delay
delay
Duration
Strobe
Exposure Exposure Exposure
1 2 3
Sensor
exposure
Strobe pre delay
Figure 8-8 Sequence Diagram of Strobe Line Pre Delay
