The CA/CE-series GigE area scan camera has 3 kinds of appearance, and here we take type I as an
example for interface introduction.

1.2 Power and I/O Interface

The description of the 6-pin power and I/O interface is shown in Table 1-2.
Illustration
CA/CE-Series GigE Area Scan Camera·User Manual
1

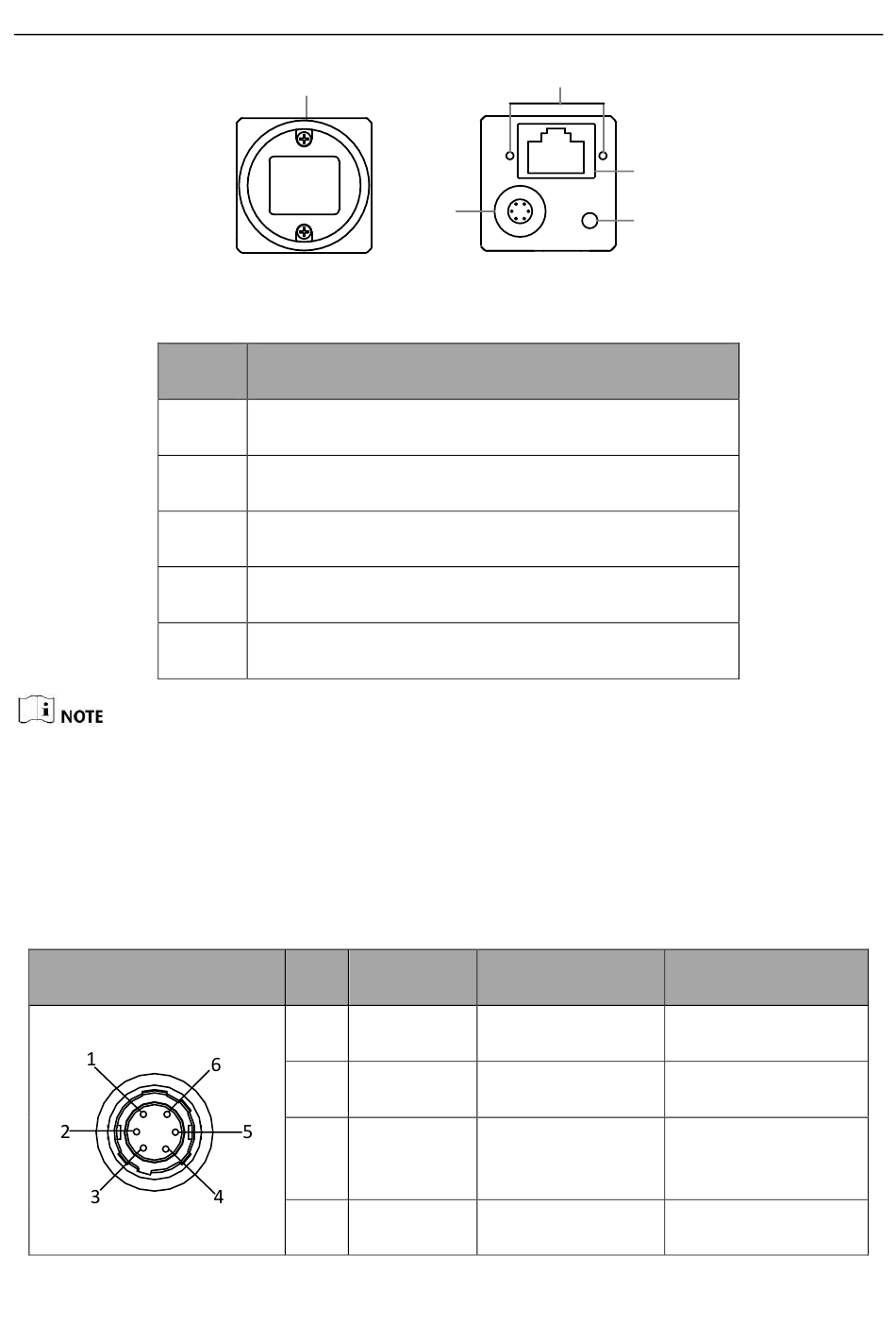

Figure 1-4 Interface (Type I)
Table 1-1 Interface Description
Description
Lens mount
6-pin power and I/O interface
M2 screw holes for securing network cable
RJ45 Gigabit Ethernet interface
LED indicator
Table 1-2 Pin Definition
Signal
No.
1 DC_PWR
2 Opt-Iso In
3 GPIO
4 Opt-Iso Out
3
2
I/O Signal Source
--
Line 0 signal line
Line 2 signal line
Line 1 signal line
2
4
5
Description
DC Power
Opto-isolated input
Can be configured as
input or output
Opto-isolated output
