10.6 Set Binning

The purpose of setting binning is to enhance sensibility. With binning, multiple sensor pixels are
combined as a single pixel to reduce resolution and improve image brightness. You can set binning
as shown below.
Steps:
1. Click Image Format Control.
2. Select proper value in Binning Horizontal and Binning Vertical.
 Binning Horizontal refers to the image's width, and Binning Vertical refers to the image's
height.
 For different models of camera, the binning function may be different, please refer to the
actual one you got.
CA/CE-Series GigE Area Scan Camera·User Manual

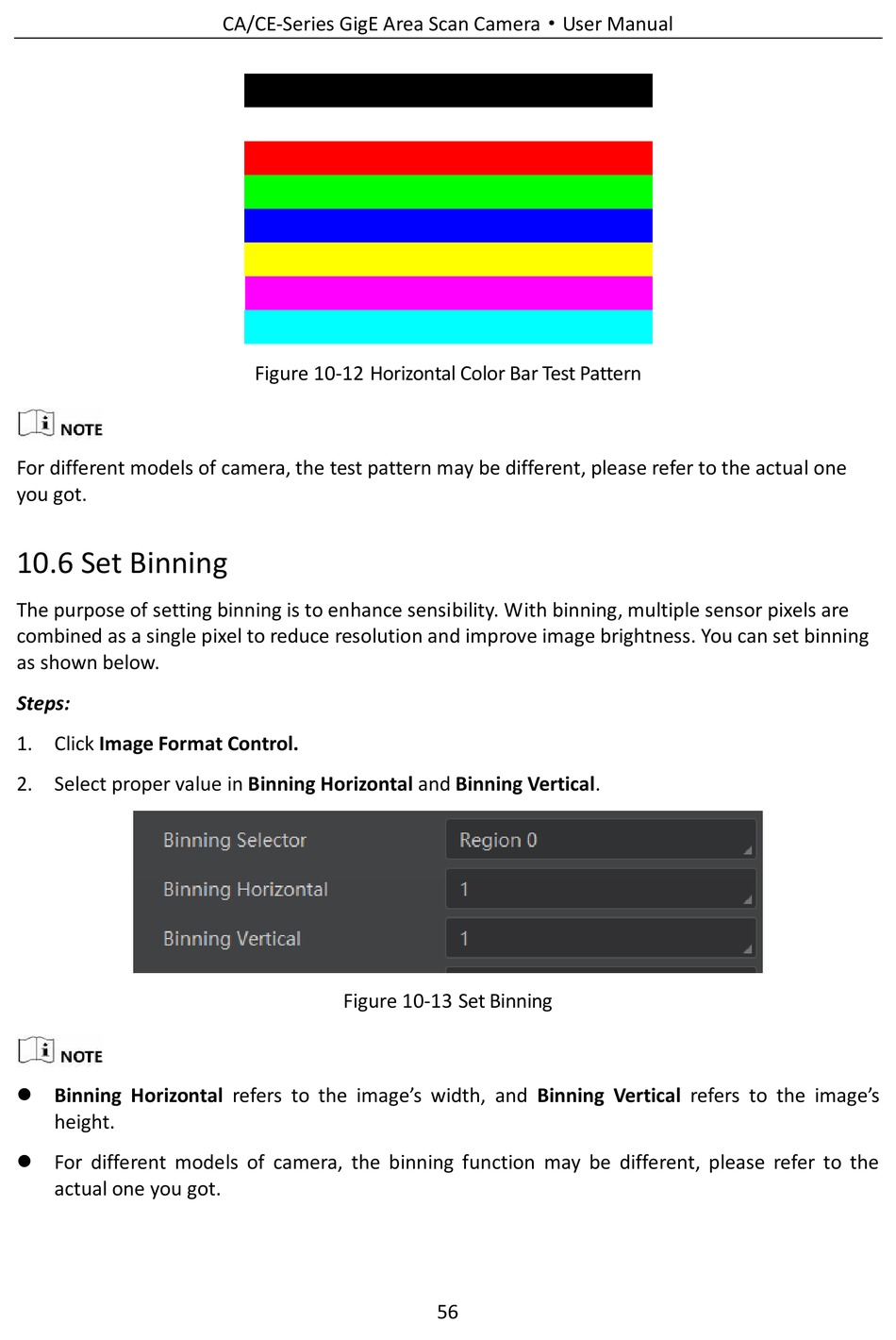

Figure 10-12 Horizontal Color Bar Test Pattern
