 The AOI function is available only when the camera's exposure mode is set as Once or
Continuous, and white balance mode is set as Once or Continuous.
 The effective regional exposure and regional white balance area is where AOI overlaps with
the image. If there is no overlap, the effective area will be the entire image.

10.17 Set LUT

A Look-Up Table (LUT) is a customized grayscale-mapping table. You can stretch, amplify the
grayscale range that interests you. The mapping can be linear or customized curve. You can set LUT
as shown below.
Steps:
1. Click LUT Control.
2. Enable LUT Enable.
3. Enter proper value in LUT Index according to actual demands, and its range is from 0 to 1023.
4. Enter proper value in LUT Value according to actual demands, and its range is from 0 to 4095.
 You cannot use Gamma correction function and LUT function at the same time.
 In the format of Bayer, the color camera does not have LUT function.

10.18 Set Embedded Information in Image

The camera supports adding and embedding the collection information to the image data. You can
set in the client software and define which information to be embedded in the image data.
Embedded information includes following categories: Timestamp, Gain, Exposure, Brightness Info,
White Balance, Frame Counter, Ext Triggering Count, Line Input Output, and ROI Position.
CA/CE-Series GigE Area Scan Camera·User Manual

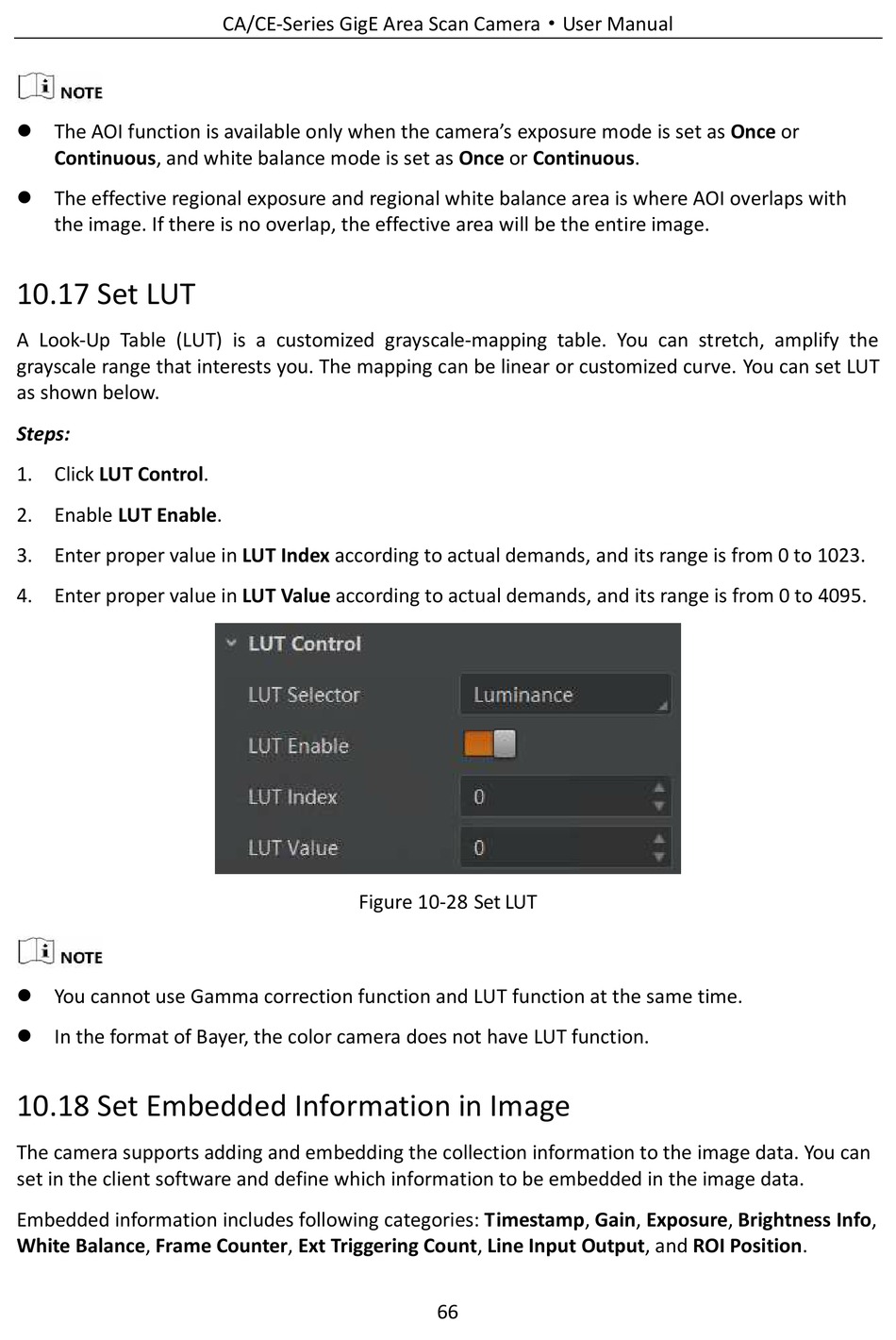

Figure 10-28 Set LUT
66
