5.1 Main Window

After connecting to the camera, the MVS client can read the camera attributes and display them in
tree format. The main window and the description of the client are shown in Figure 5-1 and Table
5-1 respectively.
For specific main window of the MVS client, please refer to the actual one you got.
No. Area Name
1 Menu Bar
2 Control Toolbar
3 Device List Panel
CA/CE-Series GigE Area Scan Camera·User Manual

Chapter 5 Camera Settings

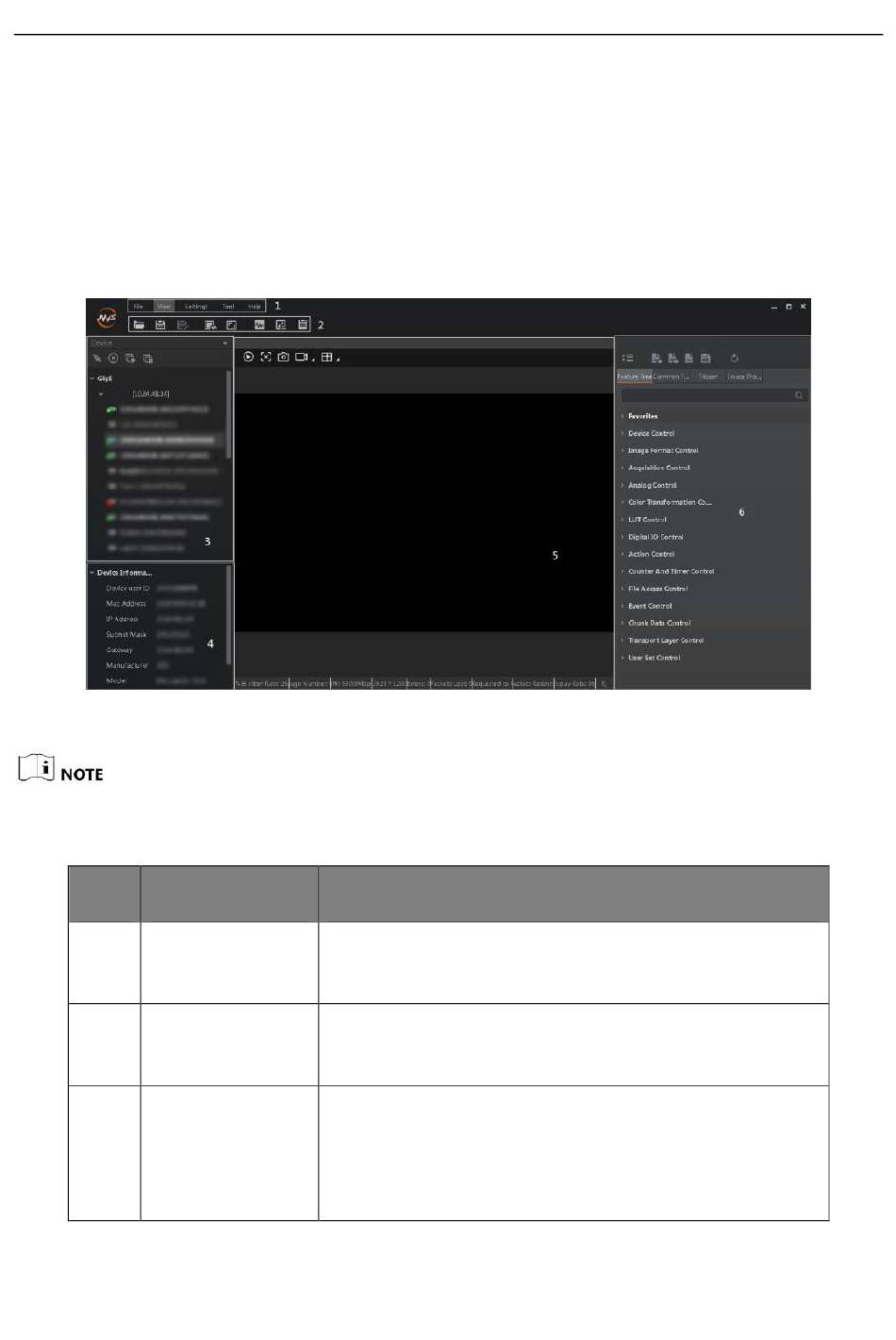

Figure 5-1 Main Window of the MVS Client
Table 5-1 Description of the Main Window
Description
Function modules including File, View, Settings, Tool,
and Help.
The control toolbar provides quick operations for
camera images.
Display the GigE Vision cameras, USB3 Vision cameras,
and Camera Link cameras. And provide icons for
connecting/disconnecting camera, start/stop
acquisition, and refreshing device list.
