No. Name
Exposure Start Active
1
Acquisition Start
2
Active
Acquisition Stop
3
Active
Frame Burst Start
4
Active
Frame Burst End
5
Active
Soft Trigger Out
6
Hard Trigger Active
7
Count Active
8
Timer Active
9
Regarding strobe signal, you can also set its duration, delay and pre delay.
 Set Strobe Line Duration
You can set strobe line duration as shown below.
Steps:
1. Click Digital IO Control > Strobe Line Duration.
2. Enter proper value in Strobe Line Duration.
CA/CE-Series GigE Area Scan Camera·User Manual

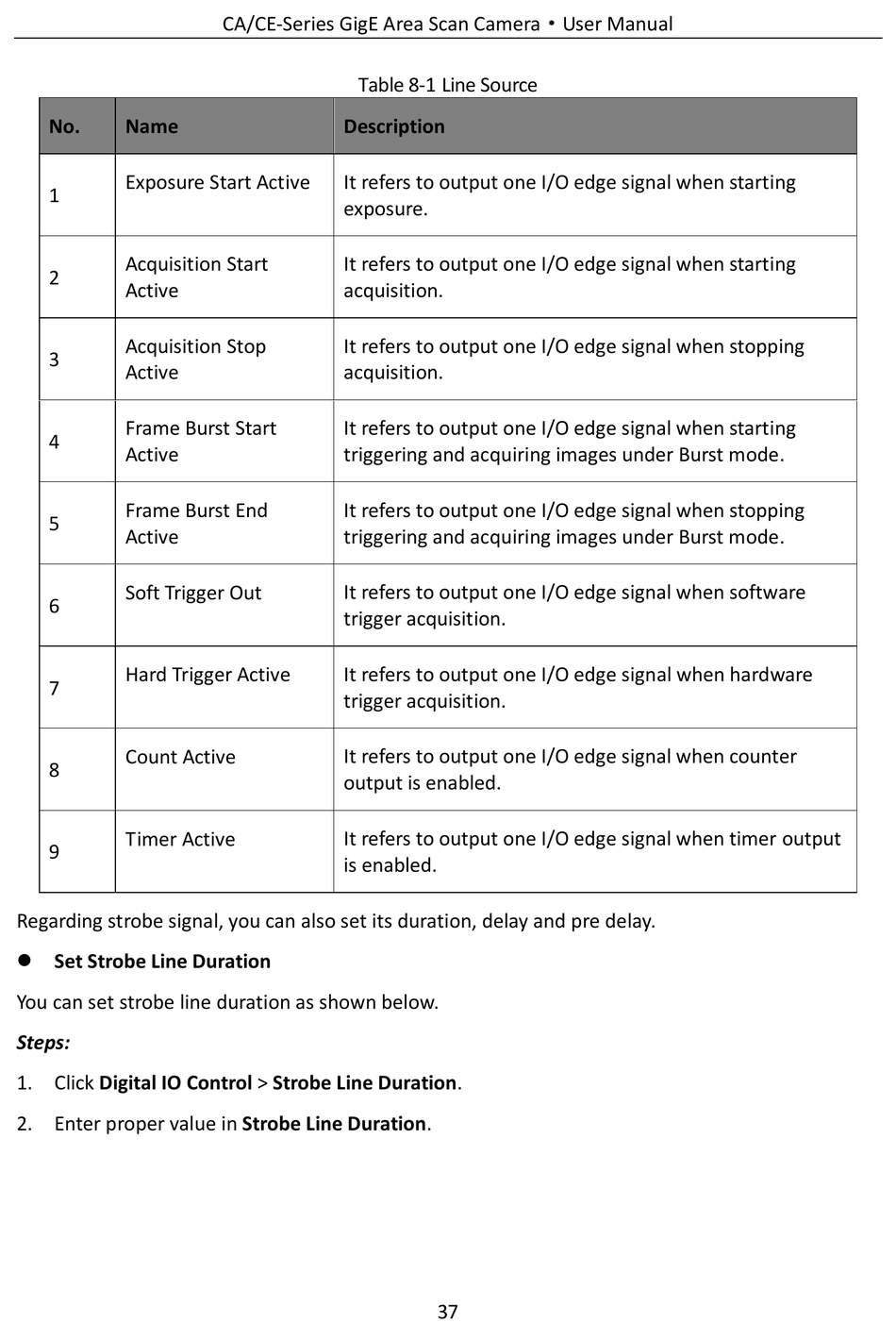

Table 8-1 Line Source
Description
It refers to output one I/O edge signal when starting
exposure.
It refers to output one I/O edge signal when starting
acquisition.
It refers to output one I/O edge signal when stopping
acquisition.
It refers to output one I/O edge signal when starting
triggering and acquiring images under Burst mode.
It refers to output one I/O edge signal when stopping
triggering and acquiring images under Burst mode.
It refers to output one I/O edge signal when software
trigger acquisition.
It refers to output one I/O edge signal when hardware
trigger acquisition.
It refers to output one I/O edge signal when counter
output is enabled.
It refers to output one I/O edge signal when timer output
is enabled.
