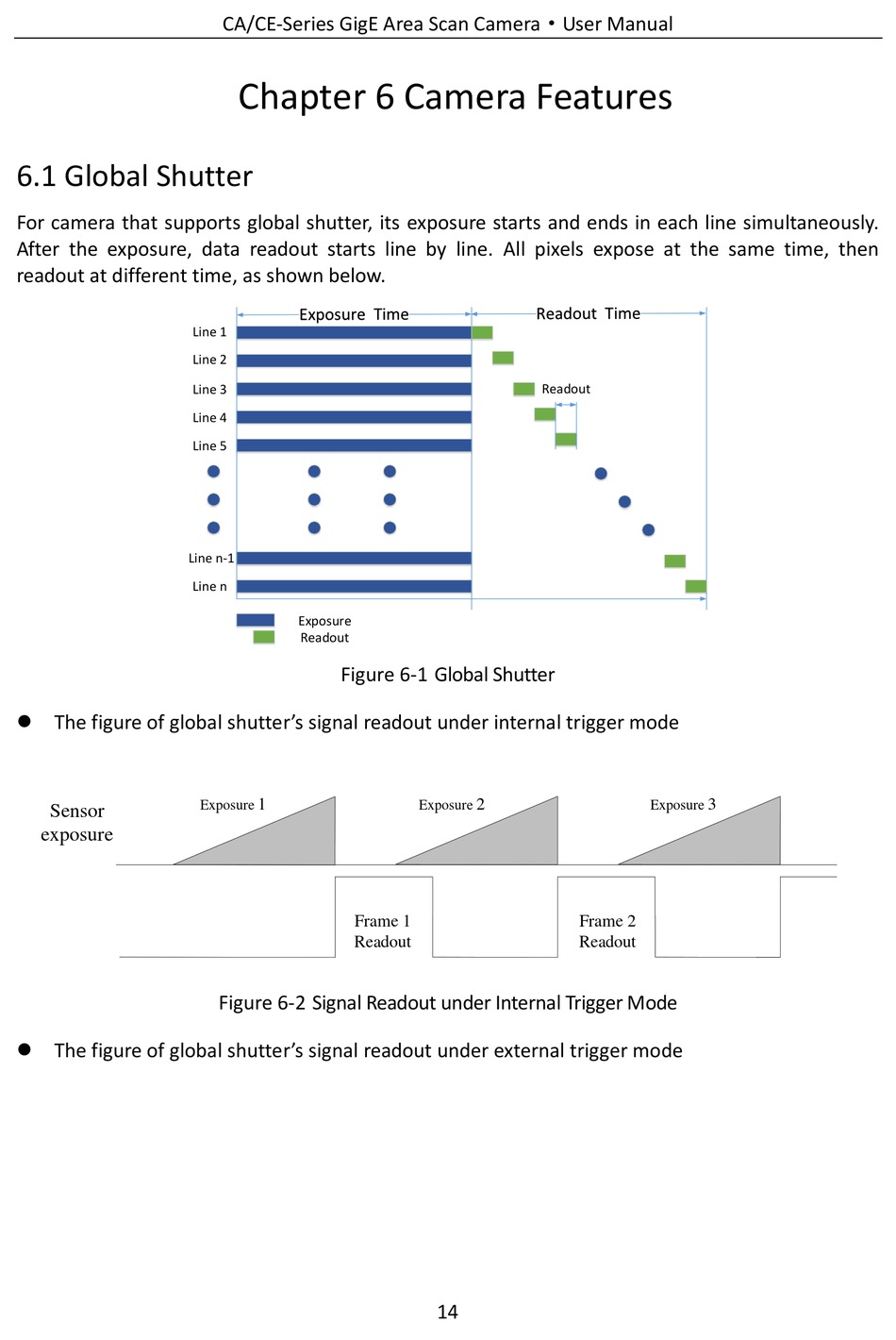

6.1 Global Shutter

For camera that supports global shutter, its exposure starts and ends in each line simultaneously.
After the exposure, data readout starts line by line. All pixels expose at the same time, then
readout at different time, as shown below.
 The figure of global shutter's signal readout under internal trigger mode
Sensor
exposure
 The figure of global shutter's signal readout under external trigger mode
CA/CE-Series GigE Area Scan Camera·User Manual

Chapter 6 Camera Features

Figure 6-1 Global Shutter
1
Exposure
Frame 1
Readout
Figure 6-2 Signal Readout under Internal Trigger Mode
2
Exposure
Frame 2
Readout
14
3
Exposure
