Chapter 4 Live View - HikRobot CA Series User Manual

If the live view is normal, the camera is connected to the MVS. You can use the camera as you need.
If not, please refer to the former steps and repeat again.
After running the MVS client software, you can click
to start acquisition, as shown below.
Software version in this manual is V3.1.0. If other versions are used, the graphic user interface and
icon may differ.
No.
1
2
3
4
5
6
7
8
CA/CE-Series GigE Area Scan Camera·User Manual

Chapter 4 Live View

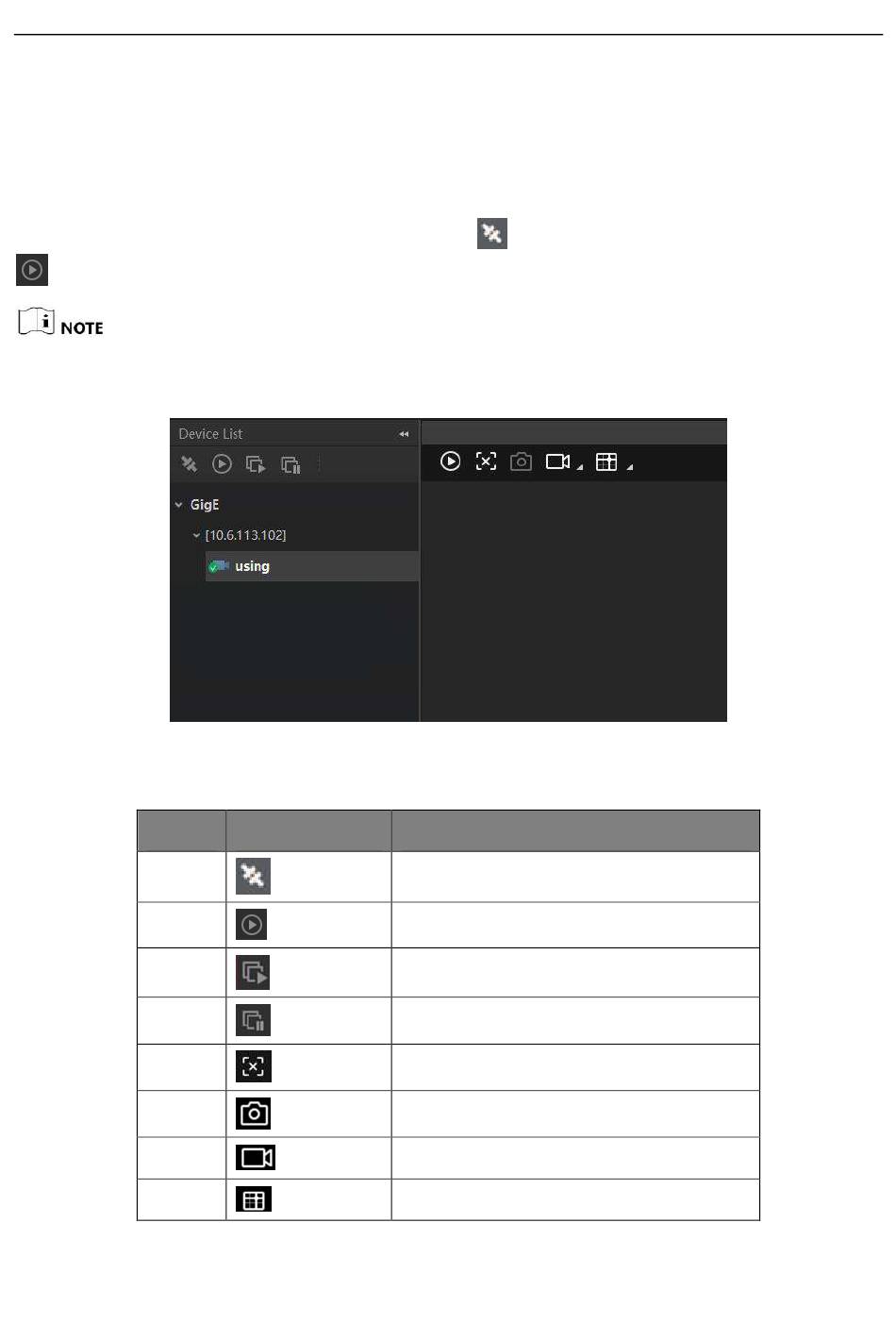

Figure 4-1 Live View in the MVS
Table 4-1 Icon Description
Icon
to connect the camera, and then click
Description
Connect or disconnect camera.
Start or stop acquisition.
Start batch acquisition.
Stop batch acquisition.
Start or stop live view.
Capture and save pictures.
Start recording.
Show cross line.
