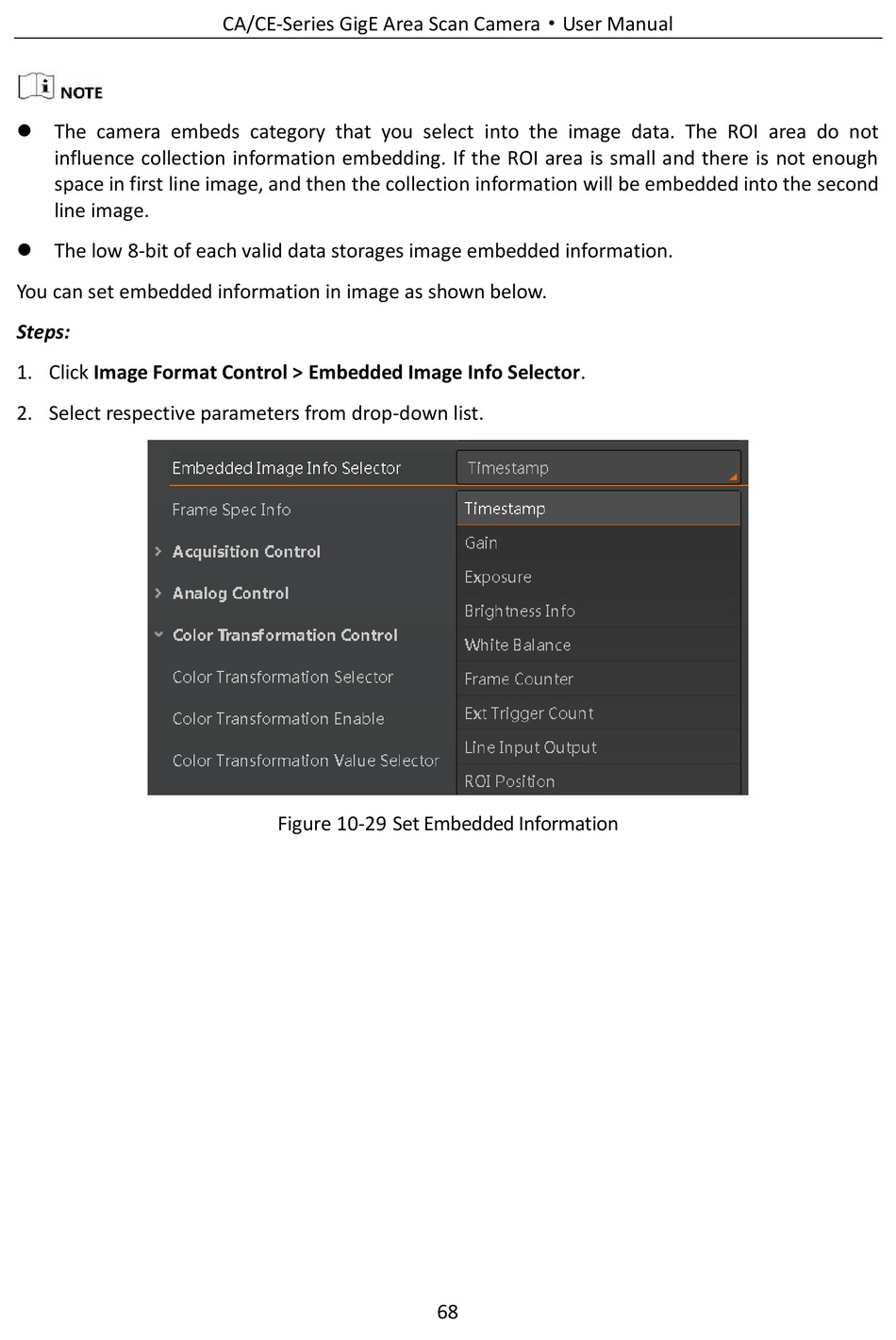

 The camera embeds category that you select into the image data. The ROI area do not
influence collection information embedding. If the ROI area is small and there is not enough
space in first line image, and then the collection information will be embedded into the second
line image.
 The low 8-bit of each valid data storages image embedded information.
You can set embedded information in image as shown below.
Steps:
1. Click Image Format Control > Embedded Image Info Selector.
2. Select respective parameters from drop-down list.
CA/CE-Series GigE Area Scan Camera·User Manual
Figure 10-29 Set Embedded Information
