CA/CE-Series GigE Area Scan Camera·User Manual
You can set test pattern as shown below.
Steps:
1. Click Image Format Control > Test Pattern.
2. Set Test Pattern according to actual demands.

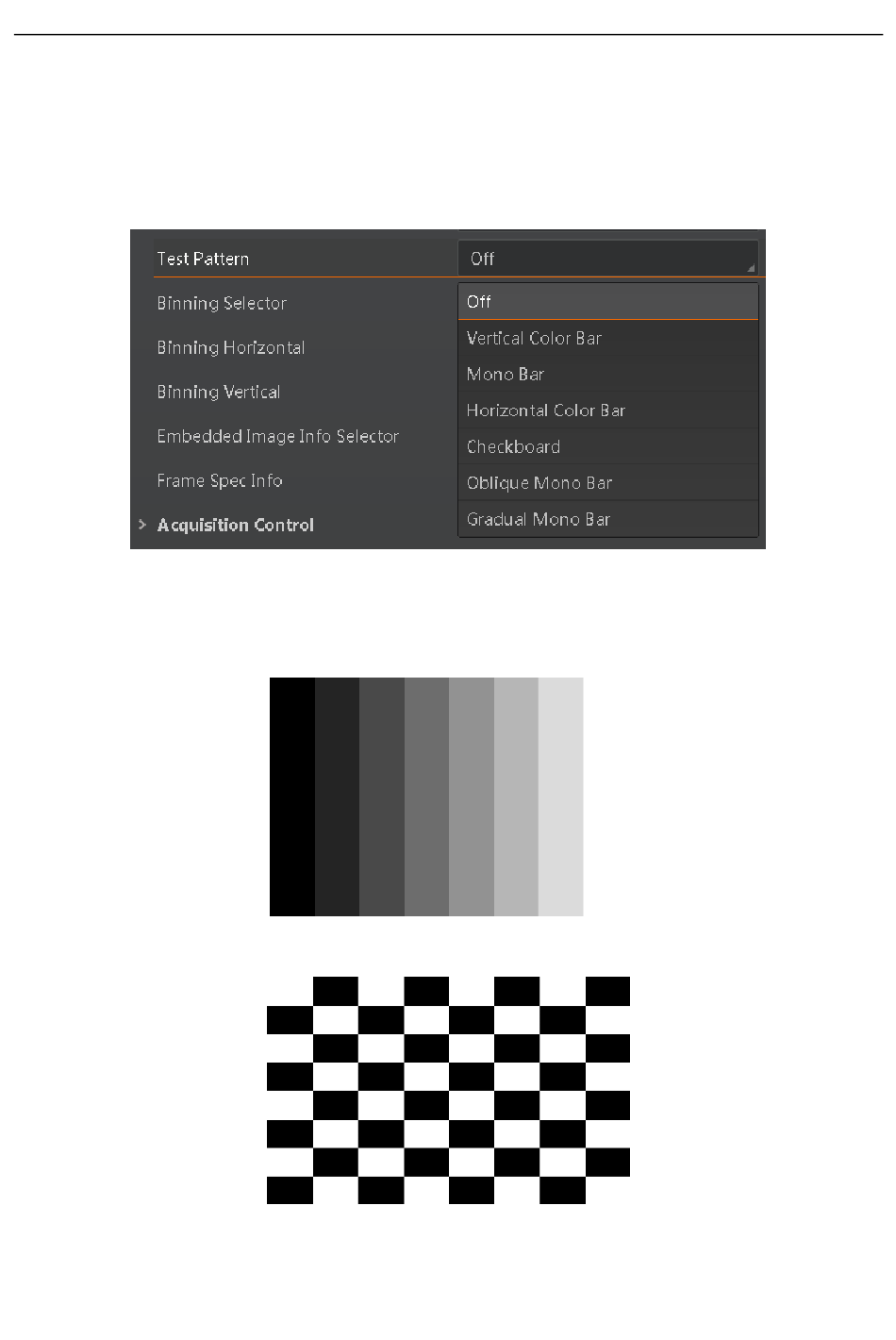

Figure 10-6 Set Test Pattern
The mono camera offers 4 test patterns, including Mono Bar, Checkboard, Oblique Mono Bar and
Gradual Mono Bar. For color camera, it also supports Vertical Color Bar and Horizontal Color Bar.
Figure 10-7 Mono Bar Test Pattern
Figure 10-8 Checkboard Test Pattern
