CA/CE-Series GigE Area Scan Camera·User Manual

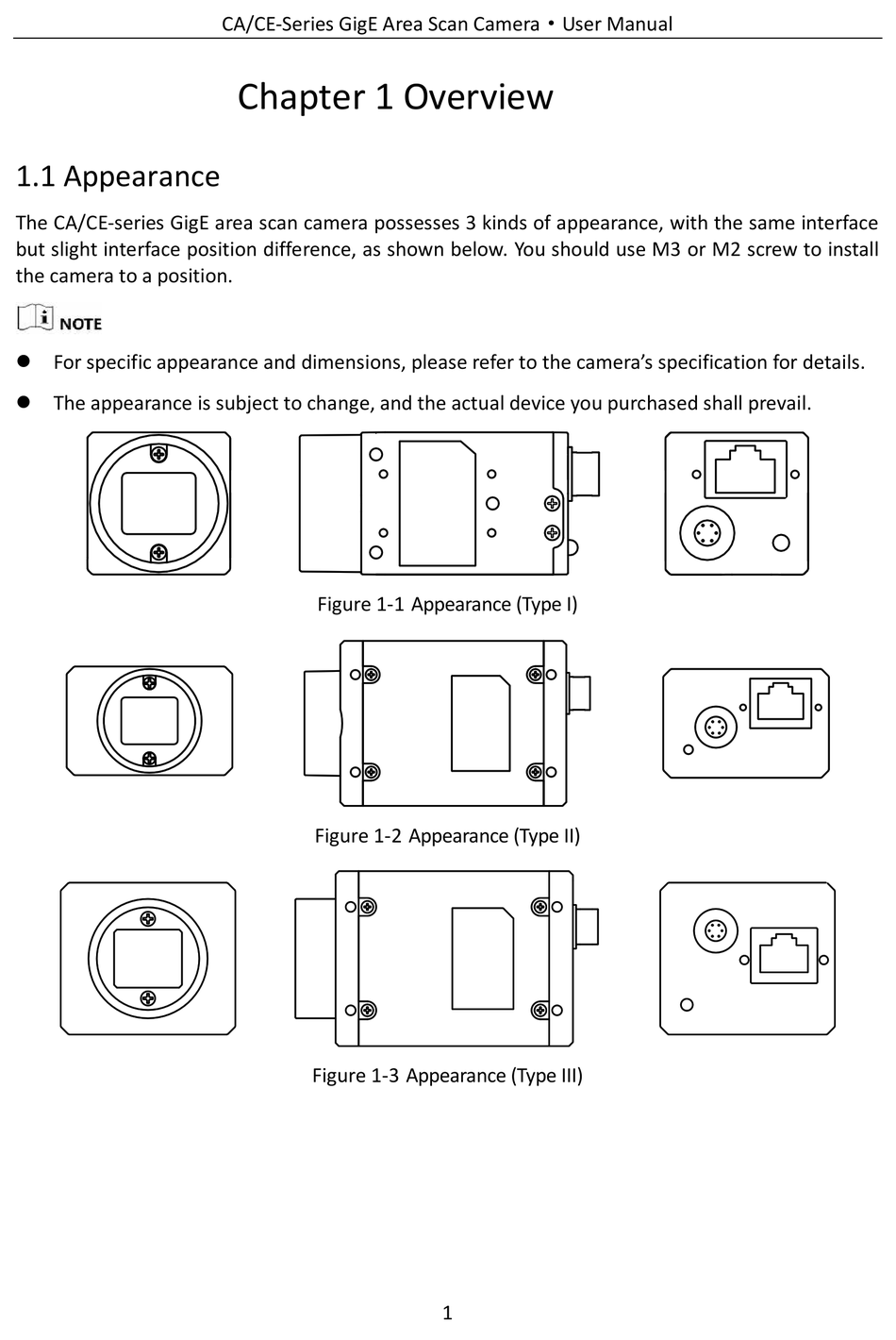

Chapter 1 Overview
1.1 Appearance
The CA/CE-series GigE area scan camera possesses 3 kinds of appearance, with the same interface
but slight interface position difference, as shown below. You should use M3 or M2 screw to install
the camera to a position.
For specific appearance and dimensions, please refer to the camera's specification for details.
The appearance is subject to change, and the actual device you purchased shall prevail.
Figure 1-1 Appearance (Type I)
Figure 1-2 Appearance (Type II)
Figure 1-3 Appearance (Type III)
1
