Trigger Related Parameters; Set Burst Frame Count - HikRobot CA Series User Manual

Steps:
1. Click Acquisition Control > Trigger Selector.
2. Select Frame Burst Start as Trigger Selector, and On as Trigger Mode.
3. Select Anyway as Trigger Source.

7.5 Trigger Related Parameters

Under external trigger mode, you can set burst frame count, trigger delay, trigger cache enable,
trigger activation and trigger debouncer. Different trigger sources can set various trigger
parameters, and their relation is shown below.
Trigger Source
Trigger Parameter
Burst Frame Count
Trigger Delay
Trigger Cache Enable
Trigger Activation
Trigger Debouncer

7.5.1 Set Burst Frame Count

Under external trigger mode, you can set burst frame count as shown below.
CA/CE-Series GigE Area Scan Camera·User Manual

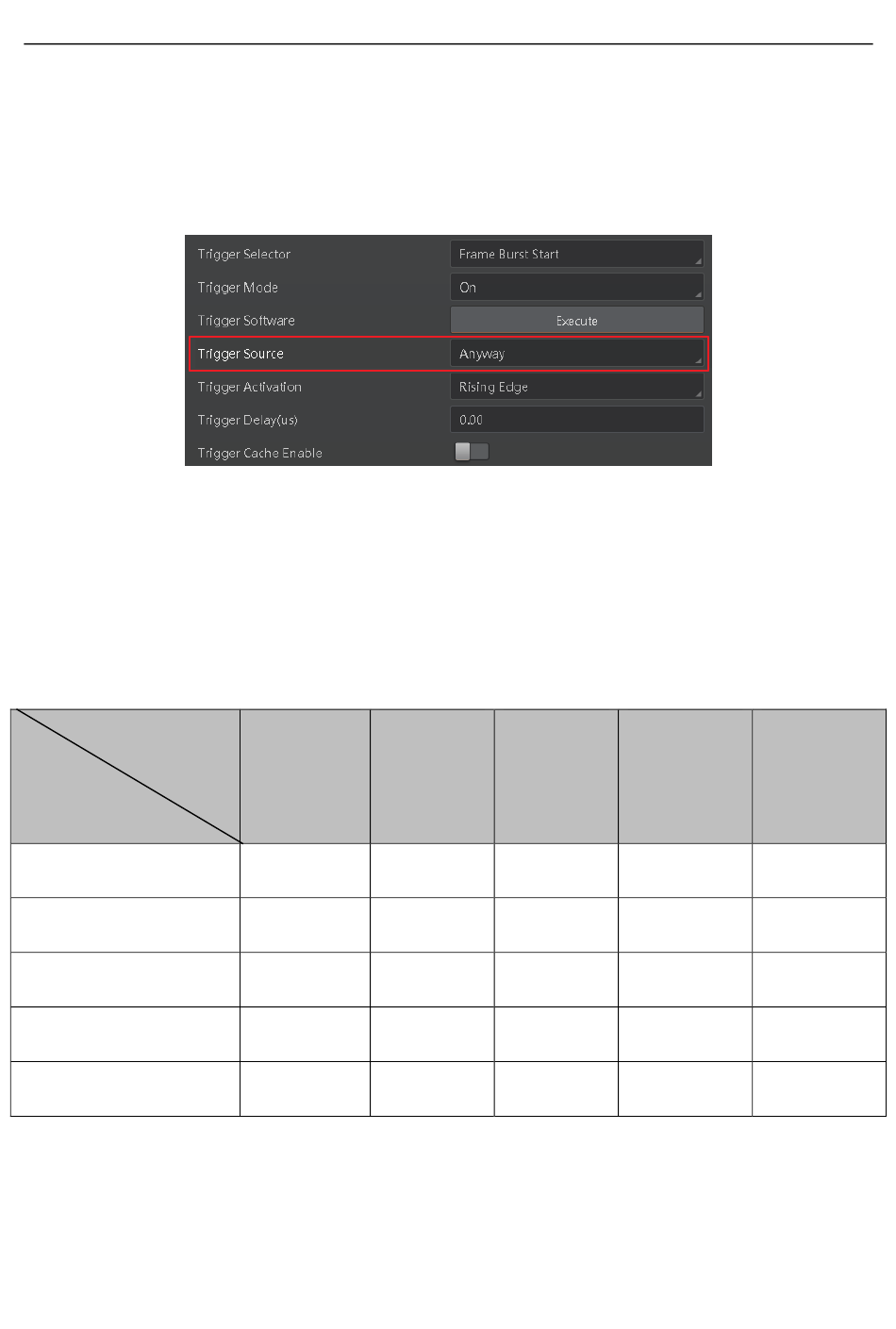

Figure 7-12 Set Anyway Trigger
Table 7-4 Trigger Source and Trigger Parameter
Software Hardware
Trigger Trigger
Support Support
Support Support
Support Support
Not support Support
Not support Support
Counter
Trigger
Support
Support
Support
Support
Support
26
Action Any Trigger
Command
Trigger
Support Support
Support Support
Support Support
Not support Support
Not support Support
