12

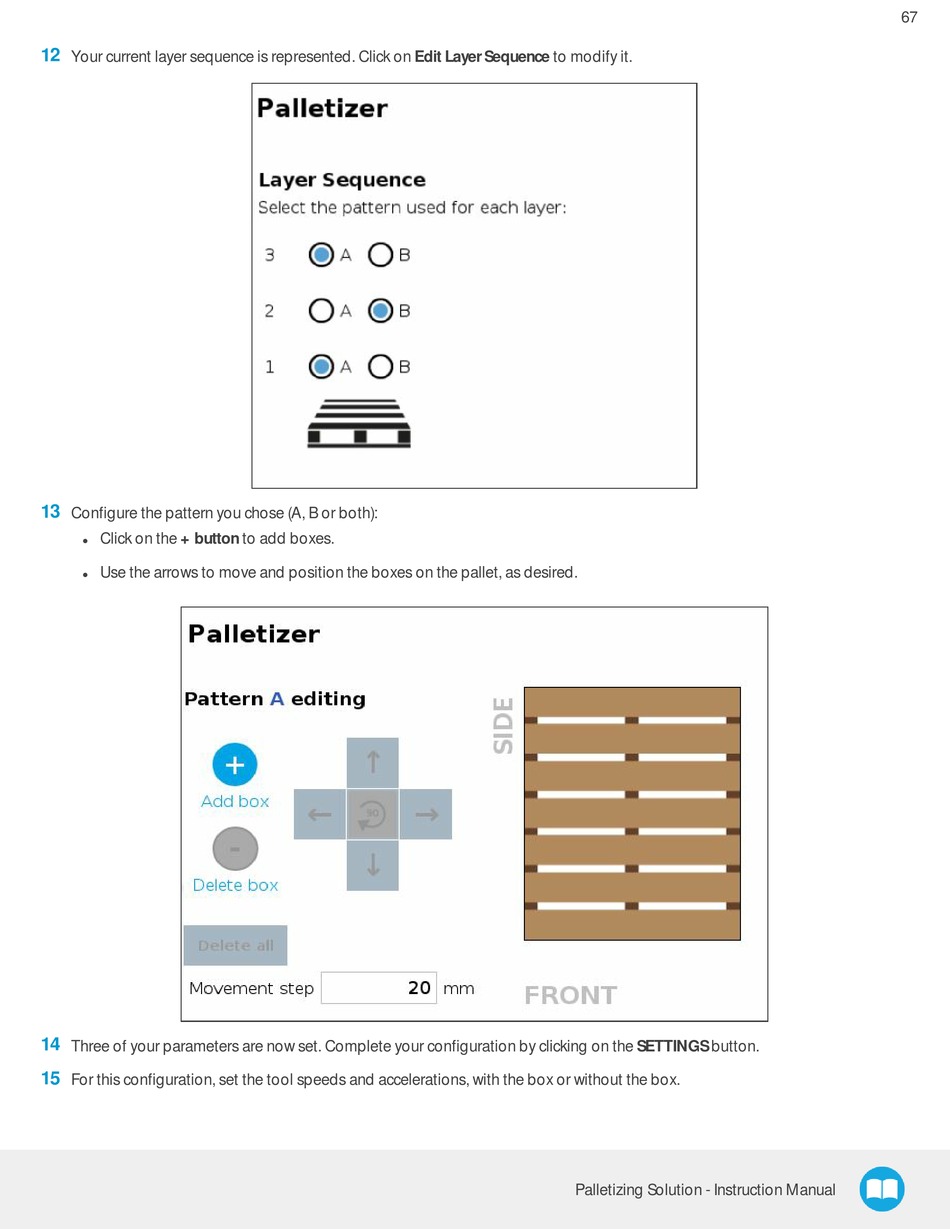

Your current layer sequence is represented. Click on Edit Layer Sequence to modify it.
13
Configure the pattern you chose (A, B or both):
Click on the + button to add boxes.
l
Use the arrows to move and position the boxes on the pallet, as desired.
l
14
Three of your parameters are now set. Complete your configuration by clicking on the SETTINGSbutton.
15
For this configuration, set the tool speeds and accelerations, with the box or without the box.
Palletizing Solution - Instruction Manual
67
