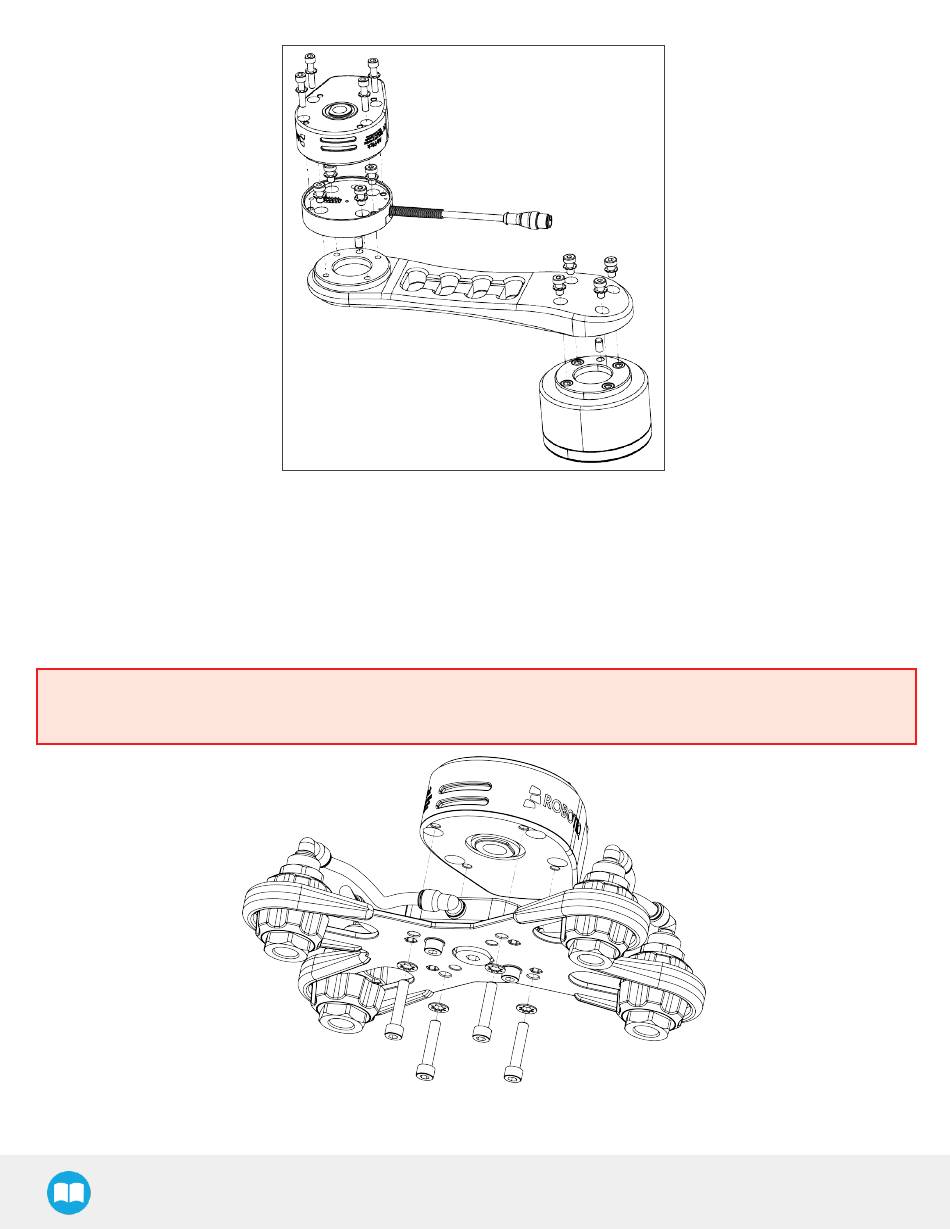

If the two or four suction cups bracket is needed:

1. Align the flat surface on the manifold with the shoulder of the vacuum generator.

2. Secure the manifold by inserting screws and tooth lock washers in a cross pattern to properly compress the O-ring of the gen-

erator.

3. Insert each suction cup, with an O-ring, into an air node. Tighten cups by hands.

Warning

Any unused manifold port should be covered with a provided port plug to avoid air leakage.
