6. Installation

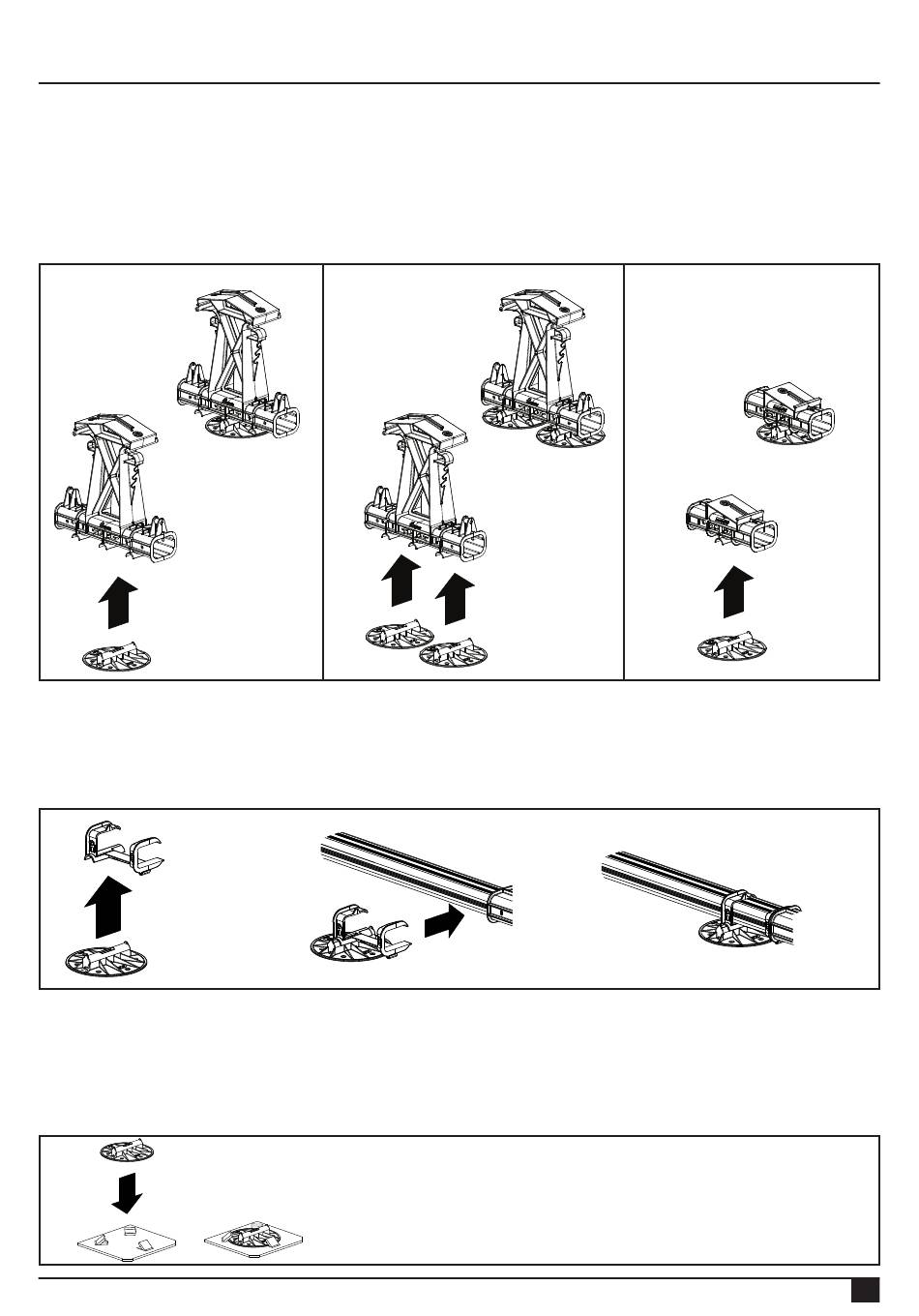

6.1 Mounting roof to base elements
As standard, the high base element is placed on a single roof support.
1. Secure the roof support to the high base element using the click connector. Use the centre click connector to the
underside of the high base element for this. Optional: In situations where ballast is to be placed, two roof supports are
secured under the high base element. Use the two click connectors at the centre (1A) for this.
2. Secure the roof support to the low base element using the click connectors.
1.
CLICK!
6.2 Mounting extra roof support (optional)
If an extra roof support is needed, these can be applied flexibly using the roof support adapter. Secure the roof support to
the adapter using the click connectors. This setup can then be clicked onto a base profile at any point lengthways.
CLICK!

6.3 Mounting of TPO Protective Mat (optional)

The optional TPO protective mat can be used to protect the TPO roofing material. Bend the three rubber lips of the
protective mat open and place the roof support under the lips of the protective mat. Ensure that the roof support is fully
enclosed by the rubber lips.
Rev. 10.09.19
1A. Situation with ballast
MANUAL FOR FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
CLICK!
CLICK!
2.
CLICK!
07
