6.10 Mounting optimisers & cables
Clips are supplied with integrated cable management and optimiser fastenings so that the cables are well-routed and
remain secure. There are also notches in the high base elements for feeding the cables through. This prevents the cables
from lying on a (wet) roof. Follow the steps below for mounting:

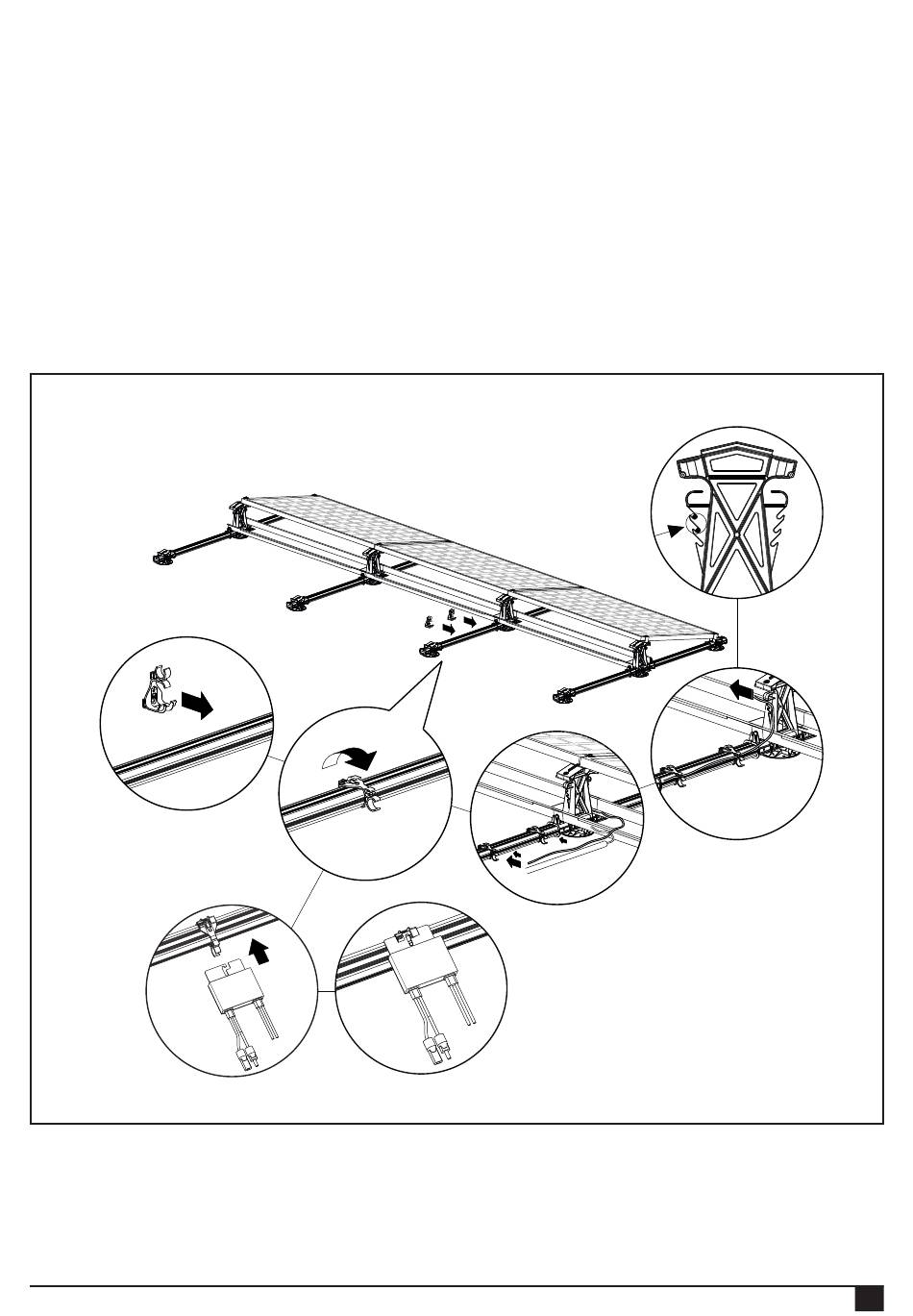

1. Place the clips over the narrow side of the base profiles.
2. Rotate the clips so that they are clamped along the broad side of the base profiles.
3. Place the cables in the notches. The clips also allow for the inclusion of a Ø25 mm conduit.
4. Feed the end of the cable through one of the cable guides of the high base element.
5. The plugs of the solar panel can be fastened to the high base element in the cable guide.
Optional: Click the optional optimiser onto the cable clip.
5
1
Click!
4
2
Ø25mm
3
Option
