ESDEC FlatFix Fusion Manual page 4

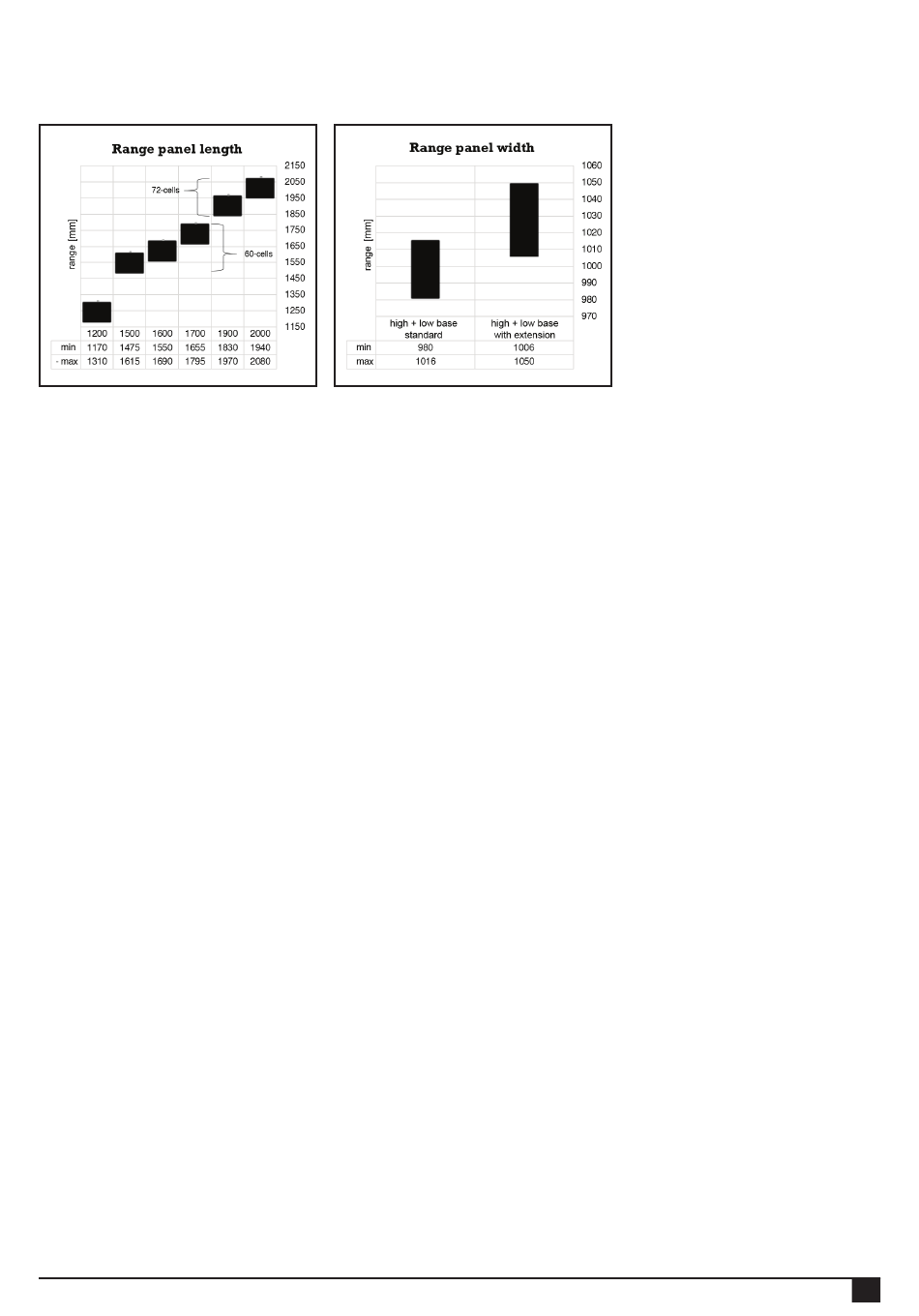

Table of panel dimensions range
Edge zone
The distance of the solar panels to the edge of the roof must be around 1/5 of the height of the building, with a minimum
distance of 30 cm (due to the strongly turbulent wind flows in this zone). No solar panels may be fitted to this zone, neither
partially nor fully. The edge zone to be observed follows from the FlatFix Fusion calculator.
Ballast
If your roof is higher than 12 metres, we recommend you consulting your supplier to assist in determining the correct
ballasting.
Use stone or grit as ballast. Consult the construction plan.
Standards, guidelines and regulations
When fitting a mounting system, it is important that you follow the mounting instructions and associated standards to
prevent incidents. Especially, considering the following standards, guidelines and regulations:
Dutch Building Code
•
PPE Personal Protective Equipment
•
KEMA Inspection of Electrical Equipment
•
DIN 1055 Design loads for buildings
•
DIN 18299 General rules applying to all types of construction work
•
DIN 18451 Scaffolding works
•
NEN EN 1991
•
NEN 7250
•
Removal and dismantling
Remove the product as per local legislation and regulation. At the end of the design life, all materials are recyclable.
The aluminium base profiles are fastened to the base elements using a click system. Use combination pliers to dismantle
the base profile.
Warranty
The warranty is subject to the warranty conditions and the general conditions of Esdec BV. These can be found on our
website www.esdec.com.
Liability
The manufacturer does not accept any liability whatsoever for damage or injury caused by a failure to (strictly) comply with
the safety guidelines and instructions in this manual, or due to negligence during installation of the product stated in this
document and any related accessories.
• printing errors reserved
Rev. 10.09.19 MANUAL FOR FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
