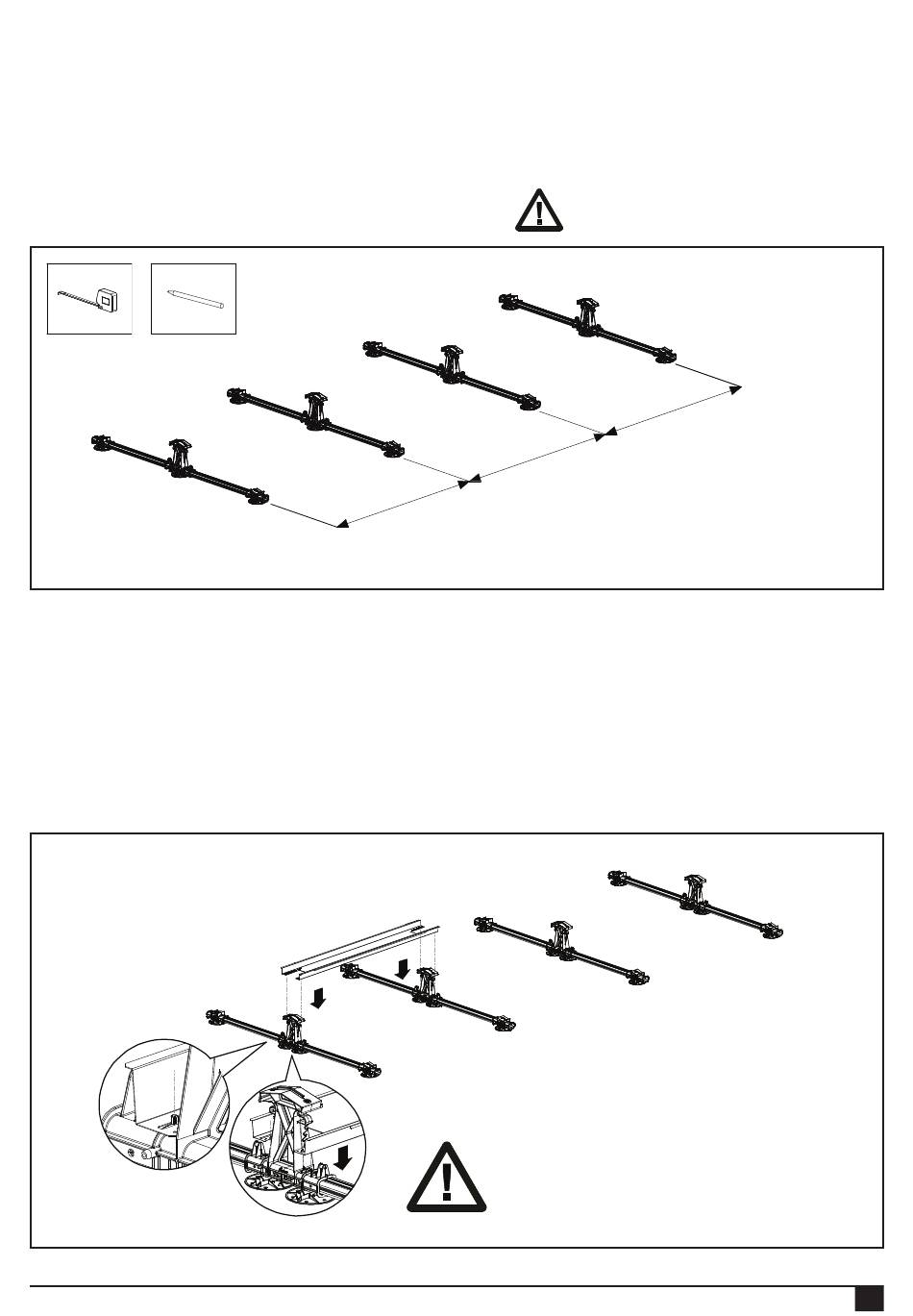

6.5 Positioning FlatFix Fusion segments

The place of the solar panels on the roof is used to determine the position of the FlatFix Fusion segments. Spread the

FlatFix Fusion segments evenly along the line where the solar panels are to be placed. The FlatFix Fusion segments may

be placed centre-to-centre at a maximum of 2 m apart (see calculator for distance).

Use the chalk or marker to mark out on the roof where the FlatFix Fusion segments are to be fitted. Ensure the FlatFix

Fusion segments are aligned with each other.

Measurement solar panel

The ballast positions are determined using the calculator. Place the ballast holders at the locations indicated by the

calculator. ATTENTION! Ensure that the high base elements are always fitted with two roof supports at the location of the

ballast holders!

First insert the ballast holder at an angle between the FlatFix Fusion segments in such a way that the fitted holes of the

ballast holder are positioned over the upright ridges of the high base element.

Make sure that the FlatFix Fusion segments are positioned straight beside each other for the alignment of the solar panels!
