6.4 Levelling and mounting base profile to base elements

The high and low base elements are also available pre-assembled: 1007021-S and 1007030-S If you assemble them
yourself, then follow the instructions below.
Grounding/levelling the base profiles (optional)
1. Place the earthing device in the grooves of the high base element before clicking the base profile in the high base
element. The use of one earthing device is equal to a joint surface of 3 mm2. Two earthing devices (one device on each
side of the base element) is equal to a joint surface of 6 mm2. The teeth of the earthing device bite into the base profile and
guarantees a solid and durable connection.

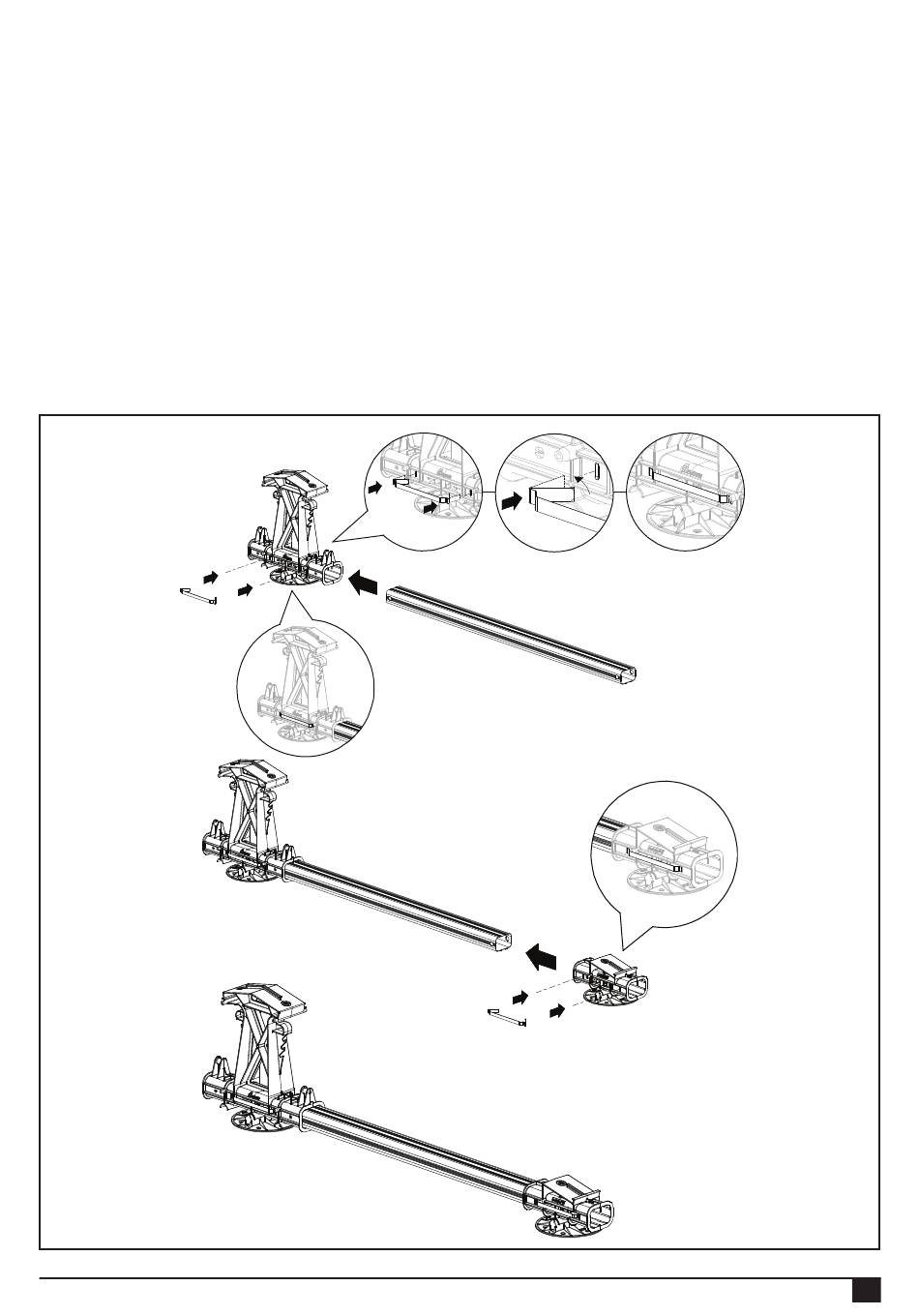

2. Set the base element (incl. roof support) upright and slide the tip of the base profile (length 94 cm) in the opening of the
high base element until it clicks into place.
3. Place the earthing device in the grooves of the low base element before clicking the base profile in the low base element.
4. Slide the low base element (incl. roof support) to the other tip of the base profile until it clicks into place.
5. One side of the FlatFix Fusion segment is ready.
1.
2. CLICK!
4.
CLICK!
5.
3.
