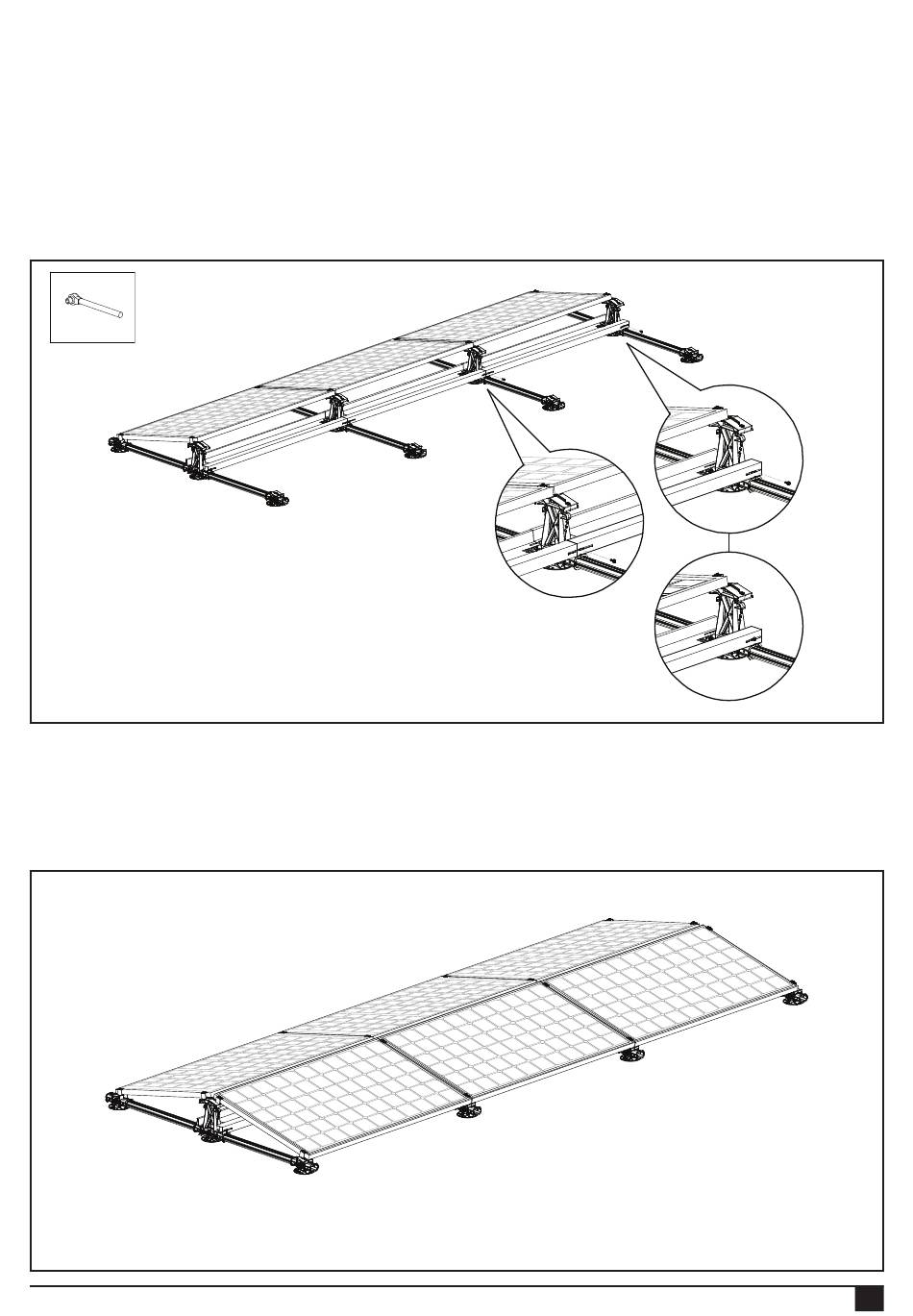

Place the last stabiliser to the rear of the solar panels, so that they lie between the upright ridges and the high base element,
ensuring a small overlap with the adjacent stabiliser.
Mount the stabiliser (on both sides) to the high base element by placing the mounting screw 6.5 x 19 in the two slotted holes
of the stabiliser and tightening it in the mounting holes of the base element.
ATTENTION! The torque of the screw connection is 4.5Nm (max. 6.5Nm). Do not overtighten the mounting screws in the
base element. Consult the manual for your tool to set it to the correct torque.

6.15 Mounting second row of solar panels

You may now mount the second row of solar panels. Follow the mounting steps in sections 6.8 & 6.9.
