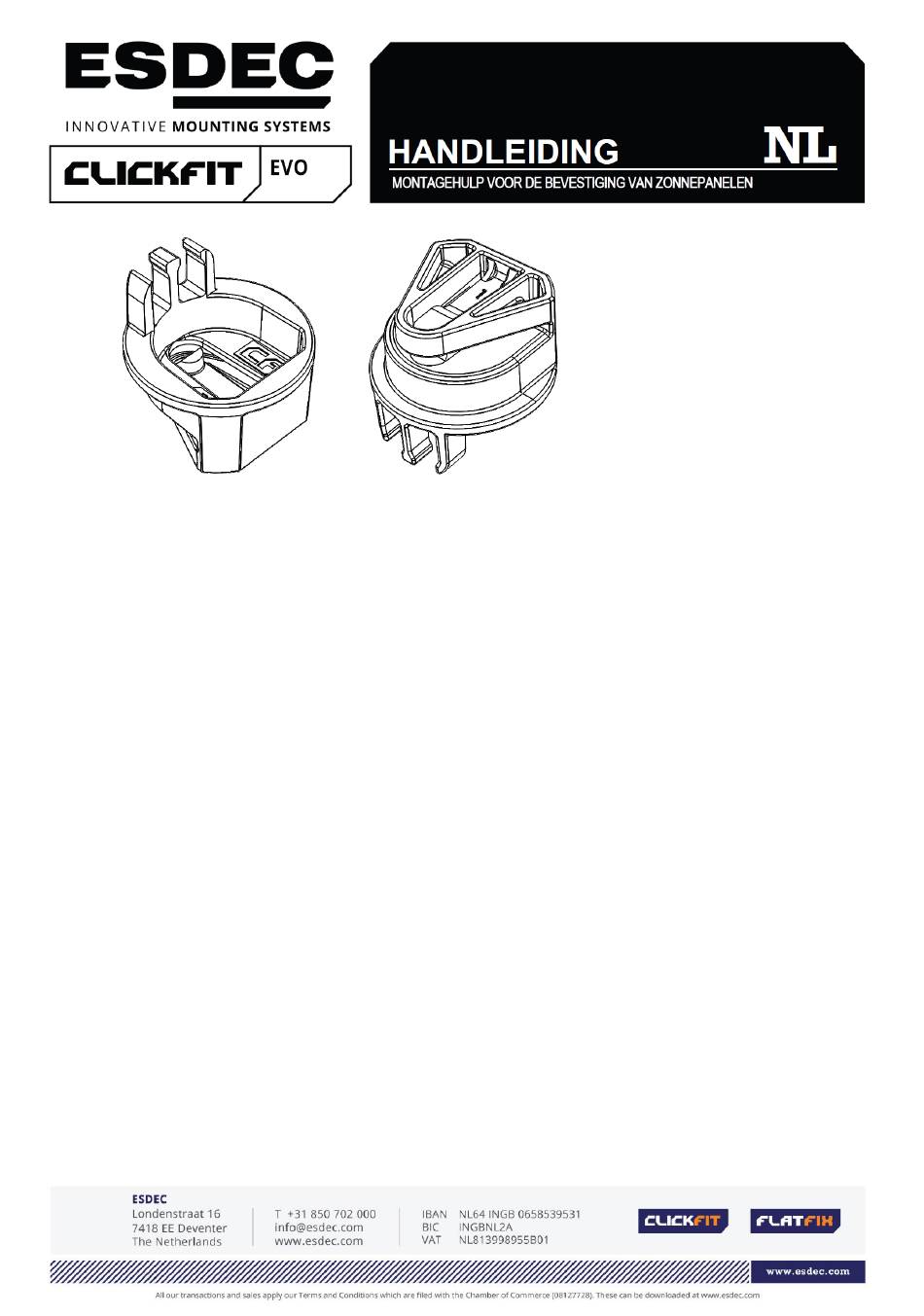

ESDEC Clickfit Evo Manual

Item number: 100-8064

Safety warnings

•
The installation support should only be used by qualified technical staff.
•
Do not install in windy conditions and on a wet and slippery roof surface.
•
When working on a sloping roof, always use fall protection. Use safety nets and edge
protection when necessary.
•
Slide roof tiles up to create spaces to put your feet. Warning: Never stand in the gutter.
•
Wear safety shoes with reinforced toecaps and sturdy, slip-resistant soles.
•
Always wear the right protective clothing when carrying out the work.
•
Ladders must always be placed on a firm and stable surface.
•
Ladders must be positioned at a 75-degree angle and make sure the ladder extends about 1
meter above the roof edge.
•
If possible, secure the top of the ladder with rope or straps.
•
Make sure you follow the instructions in the manual "Working Safely on Roofs".

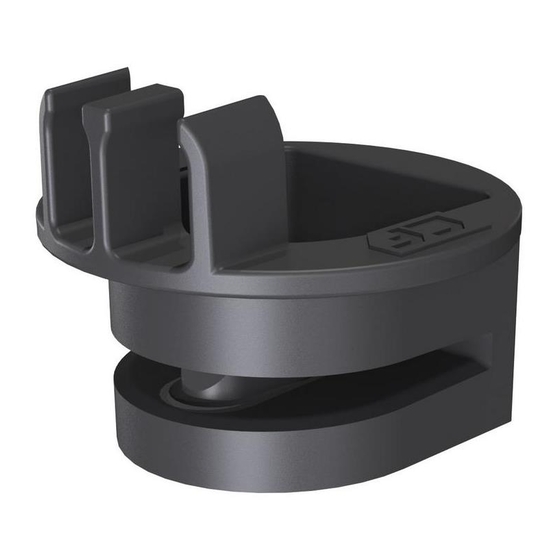

Application range for the ClickFit Evo Installation Support

•
All brands and models of solar panels with a maximum frame edge thickness of 2 mm and a
maximum weight of 25 kg.
•
Minimum diameter of the mounting hole: 6.5 mm
•
Maximum distance from the center of the mounting hole to the frame edge: 17 mm
•
Maximum load per installation support: 30 kg.
•
Roof slope: Between 15 and 60 degrees (optimum slope is 35 degrees).
