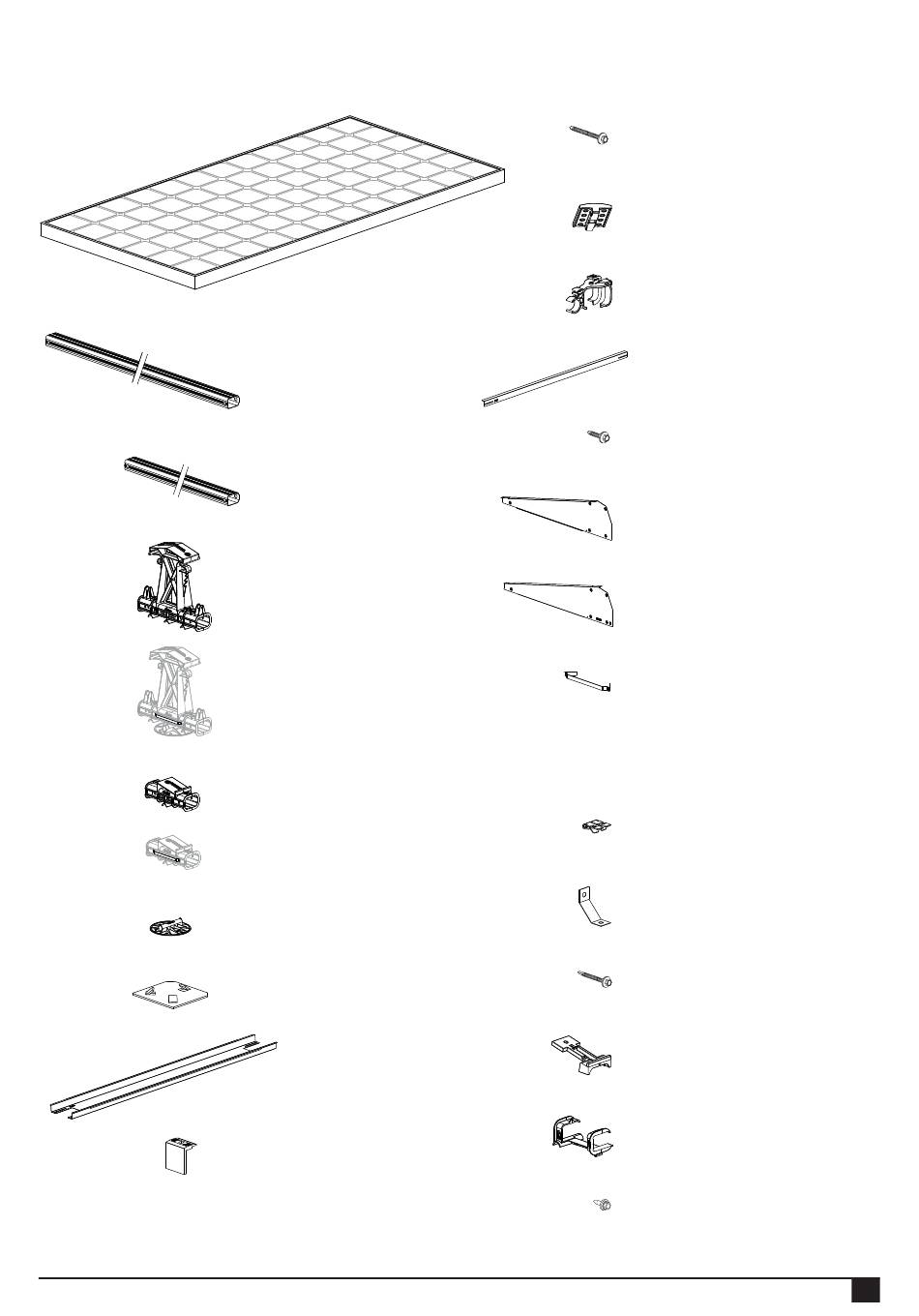

4.2 Parts list

Rev. 10.09.19
1. Solar panel
2. Base profile 940 mm
Item no: 100-7194
2A. Base profile
Item no: 100-71__
For length, see Annex
section 7
3. Base element high
Item no: 100-7030
3A. Base element high
with levelling
Item no: 100-7030-S
4. Base element low
Item no: 100-7021
4A. Base element low
with levelling
Item no: 100-7021-S
5. Roof support
Item no: 100-7012
6. TPO Protection mat
Item no: 100-7015
*optional
7. Ballast holder
Item no: 100-72__
For length, see Annex section 7
8. End clip
Item no: 100-41__
For type, see Annex section 7
MANUAL FOR FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
9. Mounting screw 6,5 x __
Item no: 100-65__
For type, see Annex section 7
10. Universal centre clip
Item no: 100-3022
11. Cable clip optimiser ready
Item no: 100-7041
12. Stabiliser
Item no: 100-72__
For length, see Annex section 7
13. Mounting screw 6,5 x 19
Item no: 100-6519
14. Wind deflector left
Item no:100-7204
14A. Wind deflector right
Item no: 100-7205
15. Earthing device
Item no: 100-7502
*optional
Deliverable pre-assembled
Item no: 1007021-S
Item no: 1007030-S
16. Earthing clip Item
Item no: 100-7505
*optional
17. Earthing bracket
Item no: 100-7503
*optional
18. Self-tapping screw 6,3 x 32
Item no: 100-3015
19. Low base extension
Item no: 100-7021-WP
*optional
20. Roof support adapter
Item no: 100-7011
*optional
21. Self-tapping screw 6,0x25
see section 6.7
Item no: 100-3010
