6.9 Levelling and mounting remaining solar panels

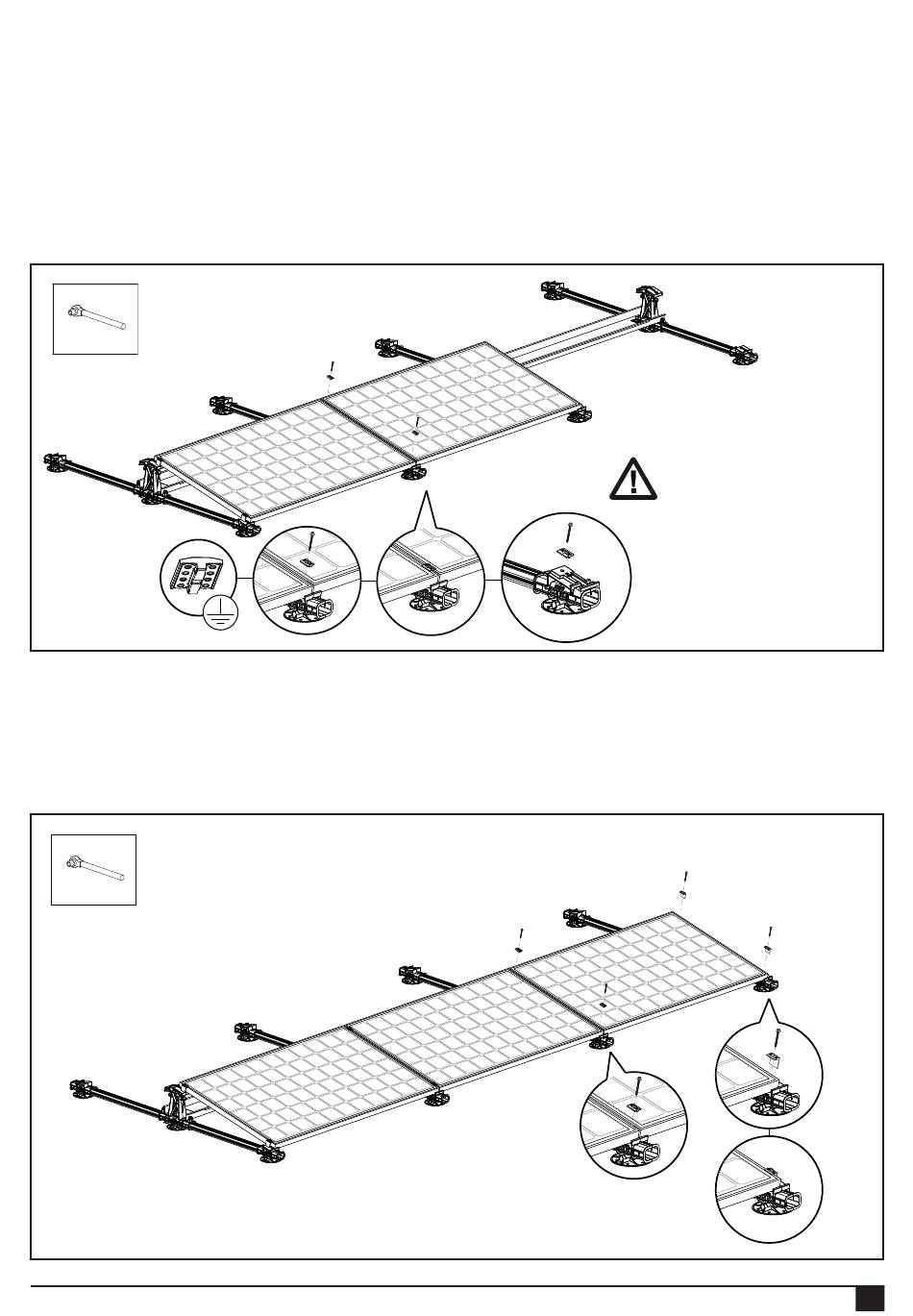

Place the second solar panel on the base elements so that it lies between the upright ridges. Then screw the mounting
screw with a centre clip in the mounting holes of the base elements. The centre clip (Universal Module Clamp with
synchronization) has an integrated levelling function so that the panels are mutually levelled, after which the full row can be
levelled on the earthing rail. Make sure that the solar panels are properly aligned before tightening the screw fully!
ATTENTION! The torque of the screw connection is 4.5Nm (max. 6.5Nm). Do not overtighten the mounting screws in the
base element. Consult the manual for your tool to set it to the correct torque. Repeat the steps above for the remaining
intermediate panels.
Place the last solar panel on the row of the base elements so that it lies between the upright ridges. Then screw the
mounting screw with a centre clip in the mounting holes of the base elements. Then tighten the two end clips using the
mounting screw in the mounting hole. Make sure that the solar panels are straight before tightening the screw fully!
ATTENTION! The torque of the screw connection is 4.5Nm (max. 6.5Nm). Do not overtighten the mounting screws in the
base element. Consult the manual for your tool to set it to the correct torque.
Rev. 10.09.19 MANUAL FOR FLATFIX FUSION MOUNTING SYSTEM FOR FLAT ROOFS
When the "low base
extension",
OPTION
the 100-7021-WP,
is fitted, a 10 mm
longer screw must be
used at the location
of this extension.
For type, see Annex
section 7
