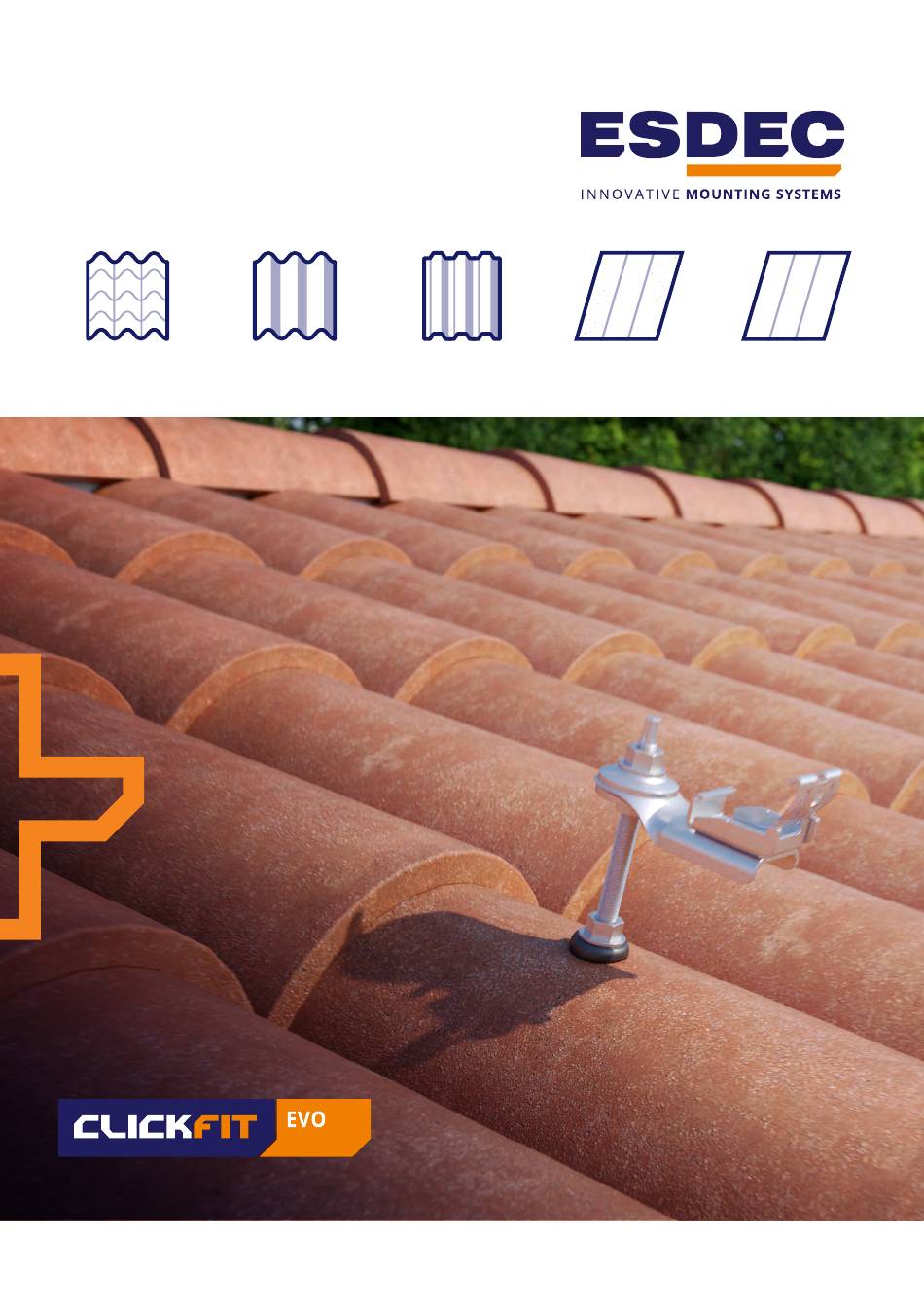

- Page 1 ARABIC TILES CORRUGATED STEEL ROOF BITUMEN EPDM ROOF MANUAL CLICKFIT EVO HANGER BOLT www.esdec.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction About this document Other relevant documents Earthing and bonding Symbols used in this manual Warranty and liability Warranty Liability Product information Intended use Improper use Compatible solar panel flange dimensions Specifications System and application Components Application Safety Personal protective equipment Safety warnings and regulations... -
Page 3: Introduction
Note Emphasises an instruction. WARRANTY AND LIABILITY WARRANTY Esdec extends a 20 year product warranty. The warranty is subject to the warranty terms and general terms & conditions of Esdec BV. These can be found on the www.esdec.com website. LIABILITY... -
Page 4: Product Information
PRODUCT INFORMATION INTENDED USE The ClickFit EVO mounting system is designed for mounting solar panels on pitched roofs. With this mounting system, solar panels can be positioned on the roof either with the short side at the bottom (portrait) or with the long side at the bottom (landscape). -
Page 5: Specifications
Depending on the roof and the result obtained from the calculator, you can lay several segments with solar panels next to each other. Always leave a minimum of 12mm of space between segments to allow for expansion of the roof. If your project has different specifications than these, please contact Esdec. -
Page 6: System And Application
SYSTEM AND APPLICATION COMPONENTS COMPONENT ARTICLE NUMBER 1 ClickFit EVO Hanger bolt 100801 _ 2 ClickFit EVO Mounting Rail 10081_ _ 3 ClickFit EVO Module Clamp 1008020(-B) 4 ClickFit EVO 35 Mounting Rail End Cap 1008060(-B) 5 ClickFit EVO 35 End Clamp Support 1008065(-B) 6 ClickFit EVO End Cap without end clamp support 1008066(-B) -
Page 7: Application
APPLICATION Use the calculator to determine the correct rail orientation for your project. The calculator takes into account, for example, the type of roof covering and the structure supporting the roof. 1 Check the roof type and the roof structure type. Is it a roof with purlins or trusses, or with solid engineering wood boards? 2 Look up the type of roof covering of your project in the table. -
Page 8: Safety
SAFETY PERSONAL PROTECTIVE EQUIPMENT Hearing Safety helmet Safety glasses Face masks Safety gloves Safety clothing Safety shoes protection SAFETY WARNINGS AND REGULATIONS Warning! Installation work should always be carried out by at least two skilled people. Do not use components from other mounting systems. Do not leave out parts. -
Page 9: Tightening Torques
3 MAKE SURE ALL THE REQUIRED TOOLS ARE AT HAND. Marker or chalk Brush Tape measure Hacksaw Water pump pliers Ratchet with hexagon Cordless screwdriver Torque wrench Open-end wrench (2x) Mastic gun socket S13 Hanger bolt M10 Hanger bolt M12 Drill through roofing material 12.5mm 14mm... - Page 10 30 cm must be kept. Likewise, it is wise to keep space in relation to skylights, lighting globes, corners and potential fire hazards. Develop a project plan using the ESDEC calculator and adhere to its guidelines. Access the calculator at calculator.
-
Page 11: Preparing And Sizing Mounting Rails
7 MARK THE POSITION OF THE HANGER BOLTS. Preferably use existing screw holes for the installation of the hanger bolts, especially on corrugated roofs. If you use too many screws in a corrugated sheet roof, it means that the roof material may have too little space to compensate for thermal expansion/contraction. -
Page 12: Install The Hanger Bolts
4 USE COUPLERS TO CONNECT THE MOUNTING RAILS, IF NECESSARY 5 IF THE OVERHANG IS GREATER THAN 250MM: EXTEND THE MOUNTING RAIL TO THE NEXT RAFTER OR BATTEN. 6 CUT THE MOUNTING RAILS TO SIZE. a. If the calculated overhang of the solar panel is more than 250mm beyond the marked position of the last hangerbolt, mark the position of an extra hangerbolt on the nearest rafter or batten. - Page 13 1 PREDRILL THE HOLES IN THE ROOF (WOODEN SUBSTRUCTURE: PURLINS/TRUSSES) The substructure must be at least 50 mm thick. Clear the drill hole and surrounding area of drill cuttings. For corrugated roof: use the existing screw holes as much as possible. Make sure that you do not place too many screws in a corrugated roof, because then the roof material will not have enough space to work thermally.
- Page 14 3 PREDRILL THE HOLES IN THE ROOF (CONCRETE SUBSTRUCTURE) > 100 mm Arabic tiles > 80 mm Concrete slab Pre-drill Arabic tiles at the highest point on the roof tile. This ensures good drainage. The drilling depth is at least 100 mm. For a concrete slab, the drilling depth is at least 80 mm.
- Page 15 5 INSERT THE HANGER BOLT AND ALLOW CHEMICAL ANCHOR TO HARDEN. Align the hanger bolts with each other. 6 TIGHTEN THE NUT SO THAT THE RUBBER SEAL DEFORMS AND THE SCREW HOLE IS SEALED 7 SEAL THE HOLE Bitumen roof material: EPDM roof material: • Sealing kit for bitumen roofing Arabic tiles:...
- Page 16 8 ROTATE THE CLICK CONNECTION INTO THE CORRECT ORIENTATION For horizontal rail orientation, make sure that the cable tray of the click connections is always pointing downwards. For vertical rail orientation, ensure that the adapters are all placed on the same side of the hanger bolt with the click connections pointing in the same direction.
-
Page 17: Attaching The Mounting Rails
9 TIGHTEN THE NUT ON THE TOP OF THE HANGER BOLT Use the cross hairs on the adapter for a good basic position of the EVO click connection and to compensate for any roof irregularities. Diameter of hanger bolt Tightening torque Minimum of 25 Nm Minimum of 40 Nm ATTACHING THE MOUNTING RAILS... - Page 18 2 PLACE THE MOUNTING RAIL IN THE CLICK CONNECTION. 3 FOR UNEVEN ROOFS: LOOSEN THE SCREWS OF ANY MISALIGNED BRACKETS. THE RIGIDITY OF THE RAIL AUTOMATICALLY ALIGNS THE BRACKETS INTO THE CORRECT POSITION. 4 RETIGHTEN THE LOOSENED SCREWS WHEN THE RAIL IS PROPERLY ALIGNED. APPLY A TORQUE OF 9 NM. The mounting rails need to be straight and parallel for proper installation and alignment of the solar panels.
-
Page 19: Optional: Attaching The Mlpe Clips
6 FOR VERTICAL MOUNTING: SECURE THE MOUNTING RAILS TO THE CLICK CONNECTIONS First secure the bottom click connection with a self-drilling screw. Skip two click connections and then screw down the fourth click connection. Repeat until the top click connection. SW-10 OPTIONAL: ATTACHING THE MLPE CLIPS CLICKFIT EVO MLPE CLIP LIGHT WEIGHT... -
Page 20: Clickfit Evo Mlpe Clip Heavy Weight
With vertical rail orientation you have to fix the MLPE clip by bending the edge of the mounting rail with adjustable pliers. CLICKFIT EVO MLPE CLIP HEAVY WEIGHT 1 ATTACH THE OPTIMISER TO THE HEAVY WEIGHT MLPE CLIP 2 CLICK THE HEAVY WEIGHT MLPE CLIP ONTO THE RAIL For larger optimizers (equipped with 2 slots), it is essential to use two Heavy Weight MLPE clips. -
Page 21: Mounting The First Panel
MOUNTING THE FIRST PANEL 1 OPTIONAL: CLICK THE AUXILIARY SET ON THE PANEL. 2× 2 OPTIONAL: CLICK THE CABLES OF THE PANEL FIRMLY INTO THE CABLE CLAMP. 3 CLICK THE UNIVERSAL MODULE CLAMP ON THE RAILS. 2×... - Page 22 4 SLIDE THE END CAPS ONTO THE RAILS. 2× 5 ROTATE THE UPPER PART OF THE MODULE CLAMP OVER THE END CAP. 6 OPTIONAL: GUIDE THE CABLES OF THE SOLAR PANEL THROUGH THE CLICK CONNECTIONS.
- Page 23 7 PLACE THE PANEL ON THE RAILS. 8 SLIDE THE PANEL AGAINST THE CLAMPS. 9 SCREW THE CLAMPS ONTO THE PANEL. APPLY A TORQUE OF 4.5 NM. 4,5Nm TR30...
-
Page 24: Mounting The Following Panels
10 CLICK THE UNIVERSAL MODULE CLAMP ON THE RAILS. Install the module clamp with the drainage channel of the module clamp pointing downwards. 2× MOUNTING THE FOLLOWING PANELS Optional: Repeat steps 1.1. and 1.2.: Click the Auxiliary set on the panel and Click the cables of the panel firmly into the cable clamp. -
Page 25: Mounting The Last Panel
12 SCREW THE CLAMPS ONTO THE PANEL. APPLY A TORQUE OF 4.5 NM. 4,5Nm TR30 MOUNTING THE LAST PANEL Optional: Repeat steps 1.1. and 1.2.: Click the Auxiliary set on the panel and Click the cables of the panel firmly into the cable clamp. - Page 26 2 CLICK THE UNIVERSAL MODULE CLAMP ON THE RAILS. 2× 3 SLIDE THE END CAPS ONTO THE RAILS. 2× 4 ROTATE THE UPPER PART OF THE MODULE CLAMP OVER THE END CAP.
-
Page 27: Mounting Multiple Rows
5 SCREW THE CLAMPS ONTO THE PANEL. APPLY A TORQUE OF 4.5 NM. TR30 4,5Nm MOUNTING MULTIPLE ROWS 1 MOUNT EACH NEXT ROW AGAINST THE PREVIOUS ROW Always keep a minimum of 12 mm between each row of panels in the case of horizontal rails, or each panel column in the case of vertical rails. - Page 28 Esdec Londenstraat 16 7418 EE Deventer The Netherlands +31 850 702 000 info@esdec.com www.esdec.com...
