6.7 Perimeter ballast (optional)

Perimeter ballast, with ballast trays being mounted in the direct vicinity of the high base, under the panel.

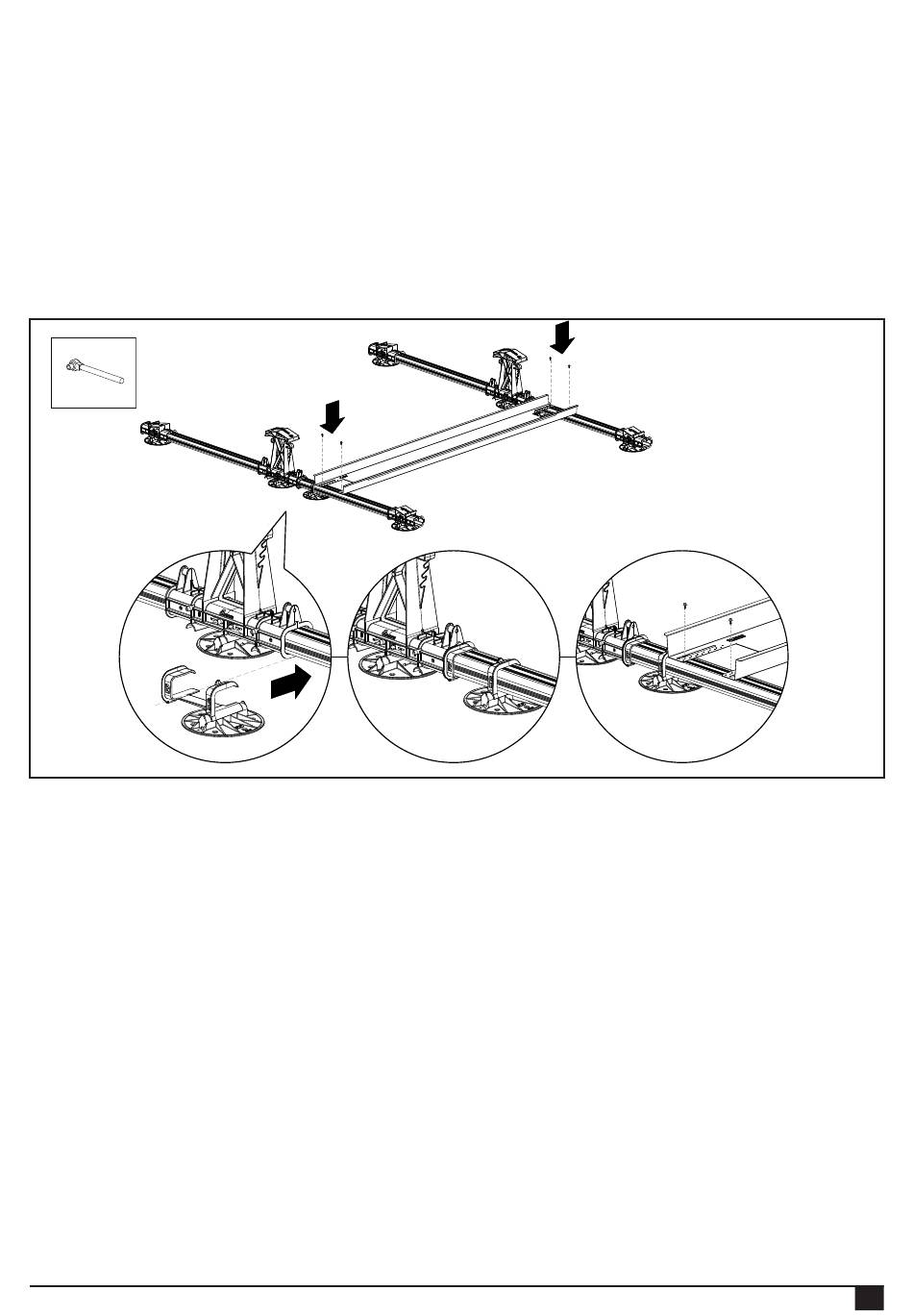

Under the panel:
Mount an extra roof support with adapter to the base profile under the panel. Place the adapter in such a way that it is also
hooked over the rib under the high base. This way, the adapter also functions as a spacer for the ballast tray to be placed.
The ballast tray must then be screwed to the base profile using the self-tapping screw 6.0x25 (Item no. 100-3010) through
one of the pre-punched holes in the ballast tray. Where two ballast trays positioned beside each other overlap, one screw is
enough.
1. 2. 3.
CLICK!
