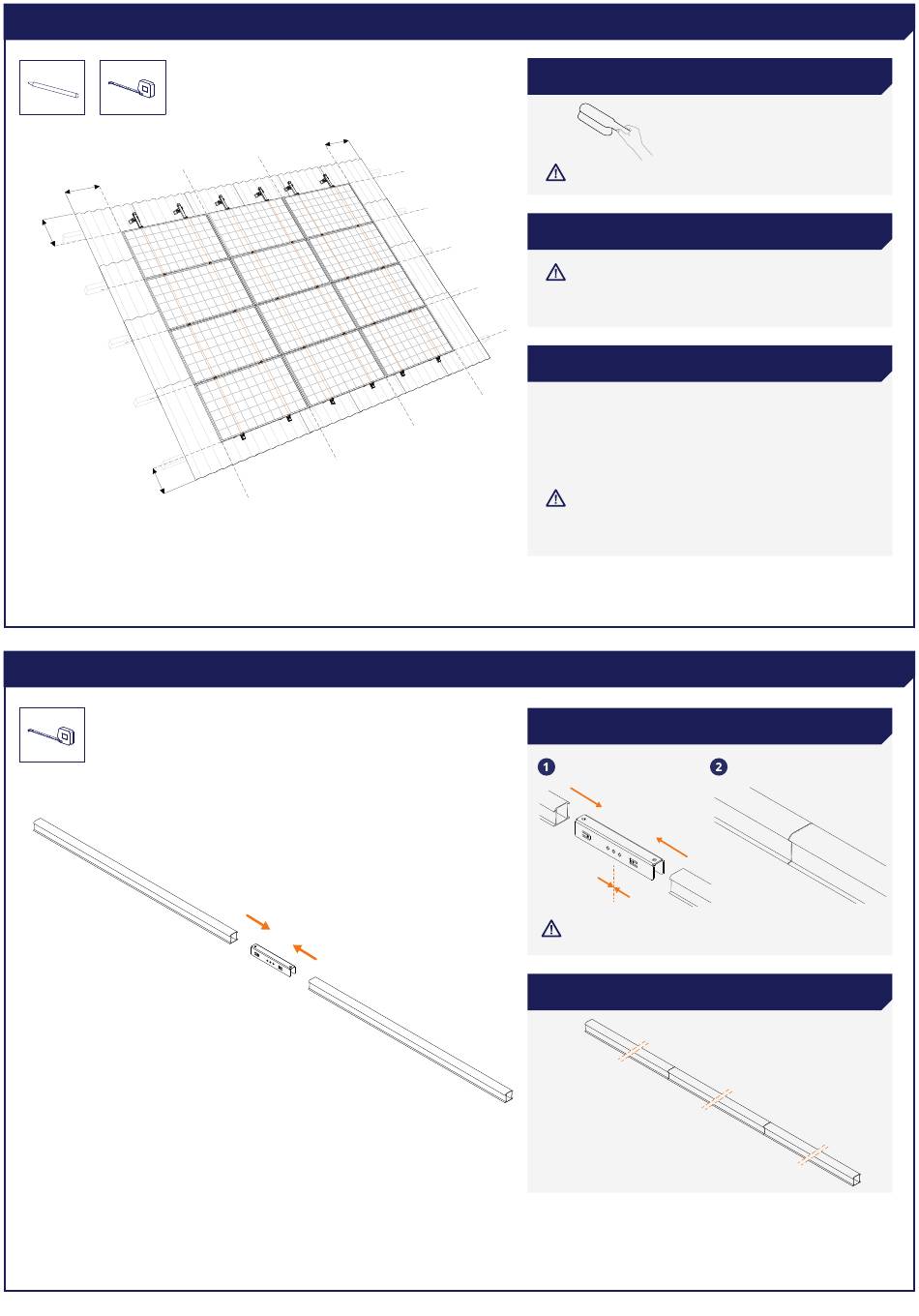

2 INSTALLATION PREPARATIONS

min. 30 cm

3 ASSEMBLING THE RAILS (OPTIONAL)

min. 30 cm

1 DETERMINE THE ROOF CONDITION

Note:

Make sure your roof is in good condition!

2 POSITION THE SOLAR PANELS

Note:

Place the solar panels on a roof surface without

shade. Shade negatively affects the solar panel yield.

3 MEASURING AND MARKING

1. Calculate the space you need based on your panel dimen-

sions.

2. Maintain 30 cm of space around the panel field (30 cm

from the ridge and gutter due to wind load).

3. Mark the intended location of the panel field, the rails and

brackets.

Note:

For many cases it is not allowed to mount on

the ridge components. Please check with your roof

supplier.

1 DETERMINE THE TOTAL RAIL LENGTH & MOUNT THE

RAILS USING CONNECTOR PIECES IF NECESSARY

Note:

Dilatation (an interruption) is required for rail

lengths larger than 15 metres.

2 CONNECT THE RAILS UP TO THE TOTAL REQUIRED

RAIL LENGTH*

*If necessary
