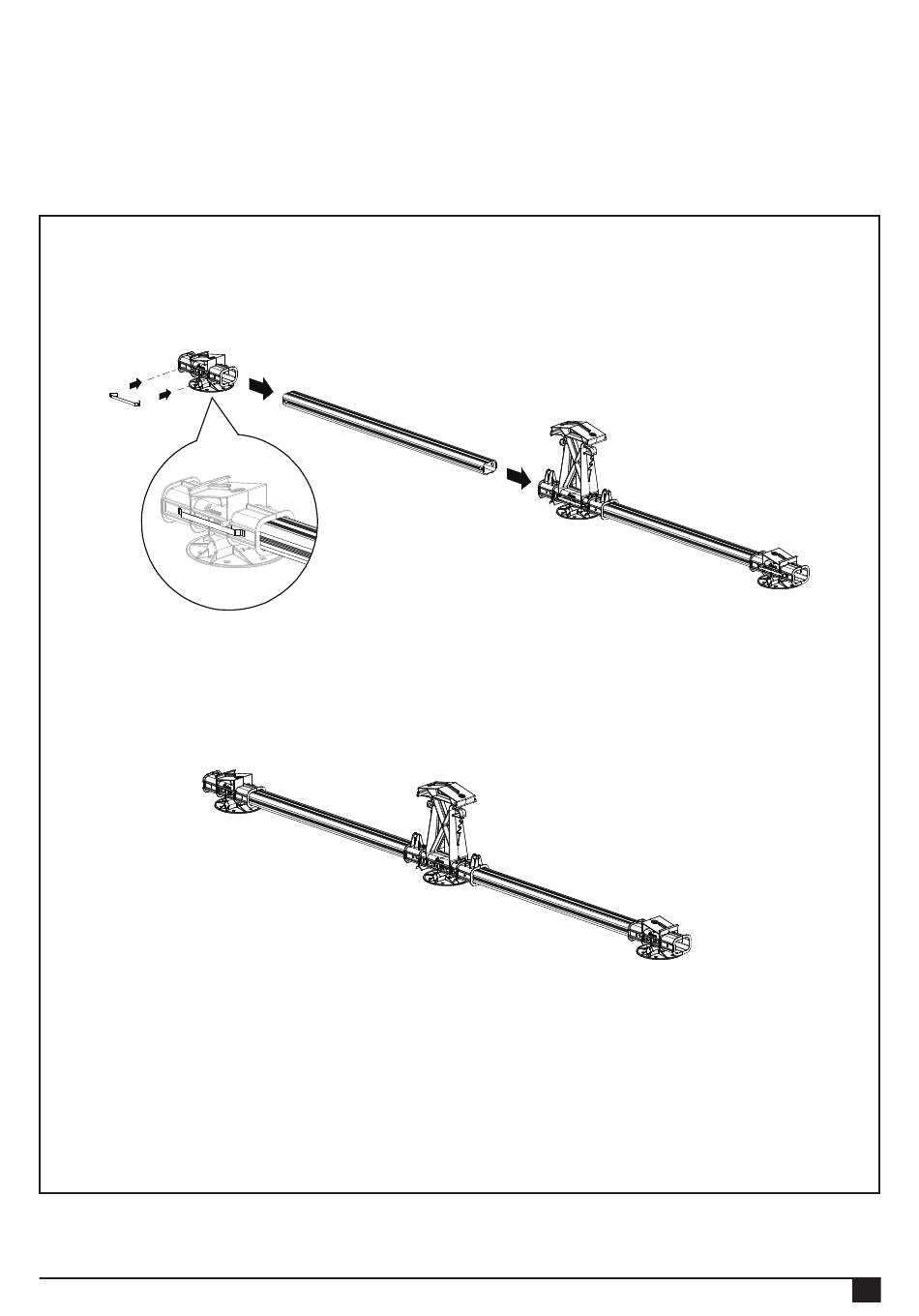

6. Slide the tip of the second base profile (length 94 cm) in the opening of the high base element until it clicks into place.
7. Place the earthing device in the grooves of the low base element before clicking the base profile in the low base element.
8. Slide the low base element (incl. roof support) to the other tip of the base profile until it clicks into place.
9. The first FlatFix Fusion segment is ready. Repeat the steps above until you have enough FlatFix Fusion segments to fit
