SINTERIT LISA PRO User Manual page 36

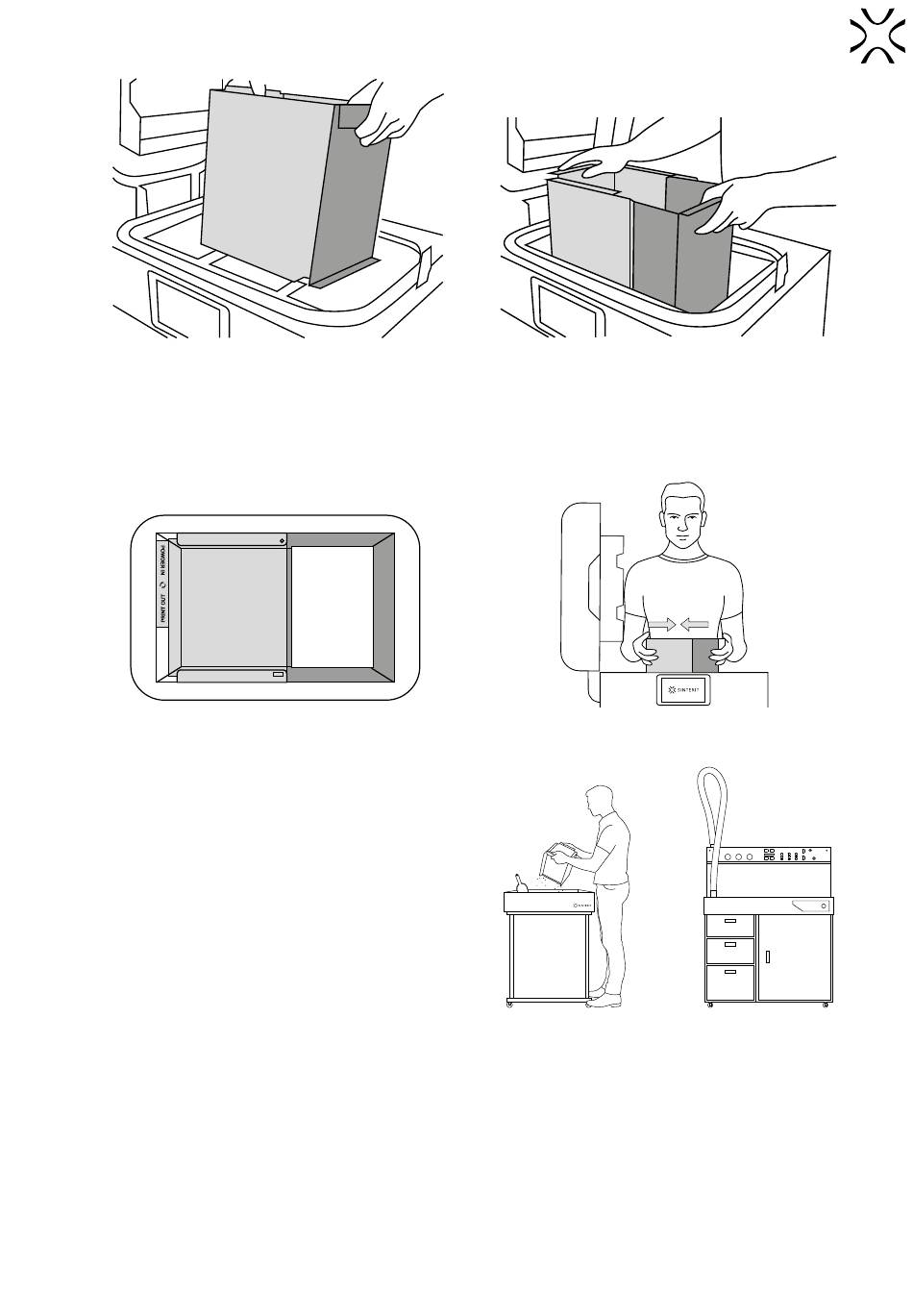

Insert the folded IO Box into the Print Chamber...
10. When finished ejecting the print from Print Bed, the message YOU CAN NOW REMOVE THE PRINTOUT FROM THE
PRINTER will appear.
11. Connect both parts of the IO Box (fig. below) and take out the contents of the Print Bed. Then press the DONE
button on the screen.
The printout has been ejected into the IO Box
and is ready to be removed.
12. The IO Box with its contents can be transferred to Foldable
Tray or a PHS worktop.
13. There is still powder in the printer, both in the Print Chamber and the Overflow Bin. It must be removed.
14. At this step, do not transfer the powder from the Print Chamber to the Overflow Bin (through the Overflow Bin gap)
because it may be full.
15. Remove the powder from the Overflow Bin. To do this, press UNLOCK OVERFLOW BIN on the next screen. The
magnetic blockade deactivates for 10 seconds. After 10 seconds, it will re-activate.
16. Remove the Overflow Bin from the printer and transfer its contents to Foldable Tray or PHS worktop.
17. Insert the Overflow Bin in its place and press the DONE button.
...and then gently slide it apart.
Slide the two IO Box elements together
(with the printout inside) and take it out.
OR
Place the printout on the Foldable Tray
or PHS worktop.
Sinterit LISA PRO User Manual | 36
