SINTERIT LISA PRO User Manual page 15

16
16
17
18
16
17
16

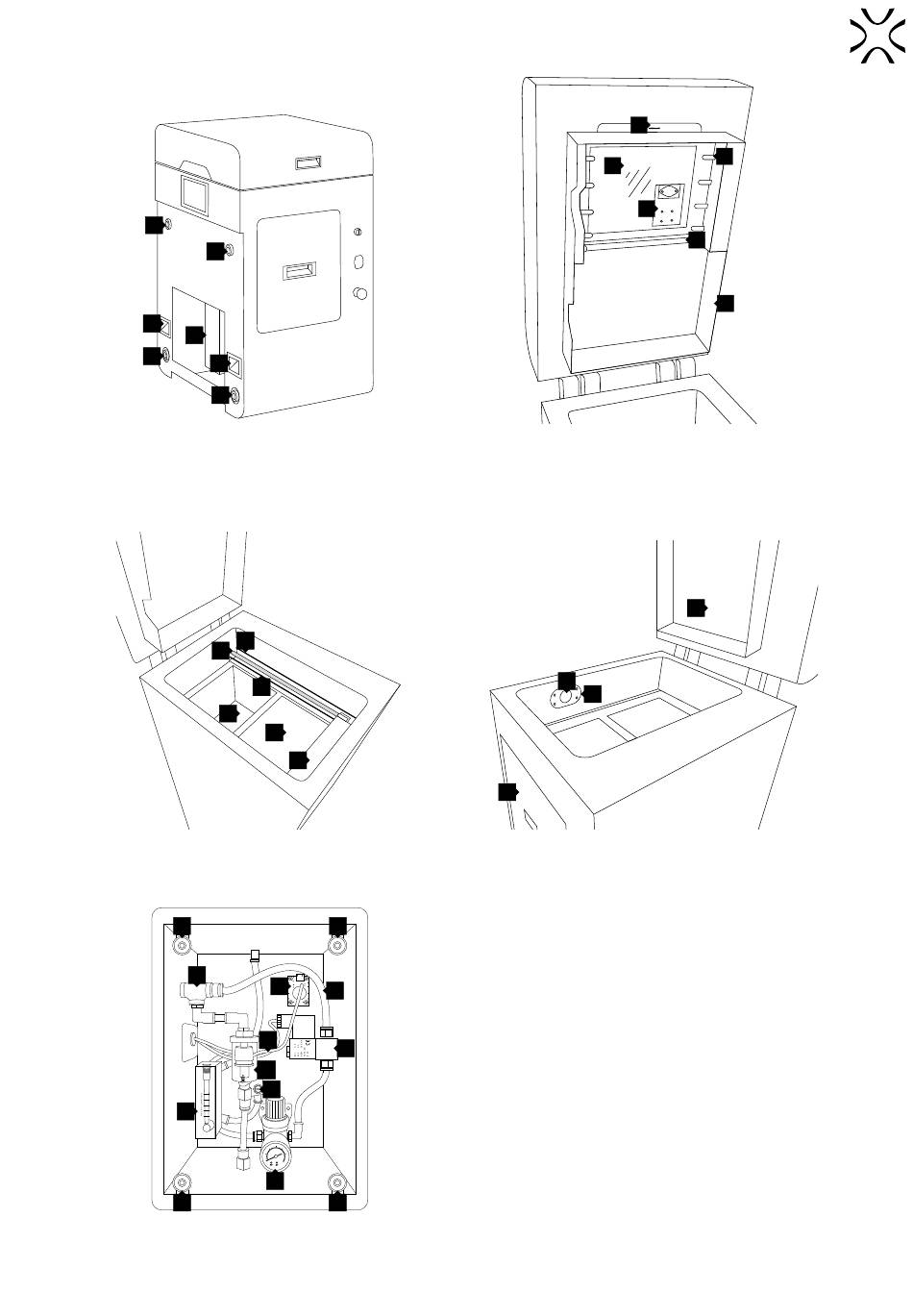

View of the printer without a front panel.
16.Magnetic fasteners / 17.Front holders /
18.Service area under BEDs
25
26
28
Front view of the printer's Print Chamber.
25.Recoater drive unit cord / 26.Recoater guide bar / 27.Recoater
cord / 28.Feed Bed / 29.Print Bed / 30.Recoater
41
33
10
8
6
38
4
2
41
27
29
30
41
34
35
40
36
39
42
bar psi
37
41
19
20
22
View of the printer Heating module.
19.Split pin / 20.dedicated place for Laser Protective Glass
/ 21.Short Infrared heaters (white) four psc. on each side /
22.Laser module / 23. Long infrared heaters (red) /
24.Heating module
31
32
17
Back view of the printer's Print Chamber.
31.Embedded camera (for Print Bed) /
32.Print Bed pyrometer behind Pyrometer Window Module
View of the chamber with nitrogen installation.
33.T-type push-in fitting with a pressure sensor /
34.Oxygen level sensor / 35.Pneumatic tubings /
36.Pneumatic solenoid valve /
37.Pressure regulator with built-in manometer /
38.Rotameter / 39.Filter air dehydrator / 40.Cable /
41.Magnetic fasteners / 42.Throttle-return valve
21
23
24
24
Sinterit LISA PRO User Manual | 15
