Installation and Operation Manual
IP-DECT Base Station & IP-DECT Gateway
5.2

Pin the IPBL Cable

All data cables used for the IPBL is standard CAT5 unshielded cable. It is assumed that
installation personnel know how to crimp these connectors to a cable.
5.2.1

Synchronization Cable

The maximum cable length between two IPBLs must not exceed 2000 meters.
1 Cut the cable to the correct length.
2 Connect the cable to a RJ45 modular jack. For information on pinning, see
13 and
3 Label the cable.
Sync IN
Figure 27.
RJ45
modular jack

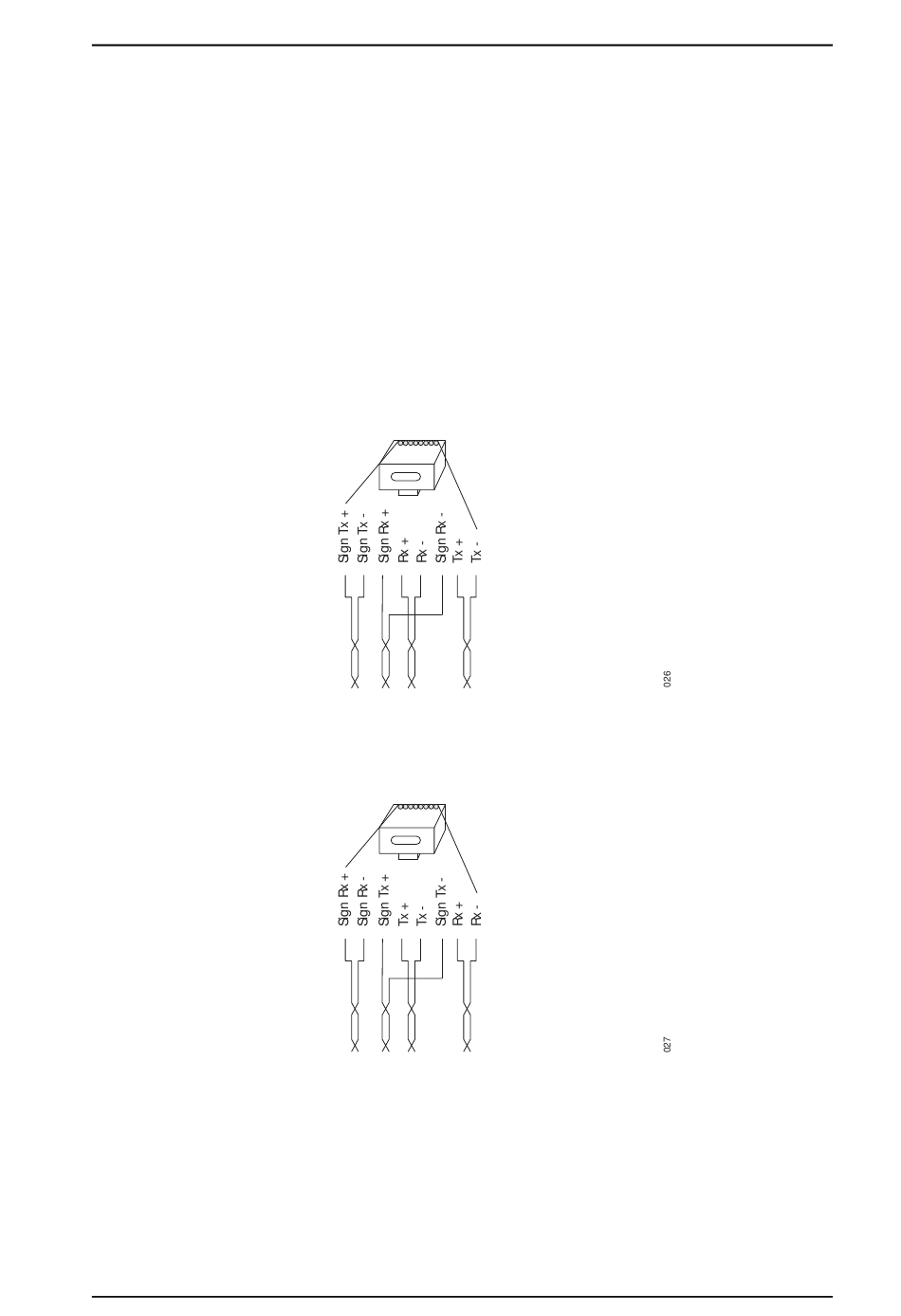

Figure 13. Connector pinning of the Sync IN cable
Sync OUT
Figure 28.
RJ45
modular jack
Figure 14. Connector pinning of the Sync OUT cable
2007-06-18/ Ver. E
figure 14.
1 2 3 4 5 6 7
1 2 3 4 5 6 7
8
Tx = Transmitter data pair
Rx = Reciever data pair
Sign = Signalling
8
Tx = Transmitter data pair
Rx = Reciever data pair
Sign = Signalling
TD 92372GB
figure
