Installation and Operation Manual
IP-DECT Base Station & IP-DECT Gateway
Figure 20.

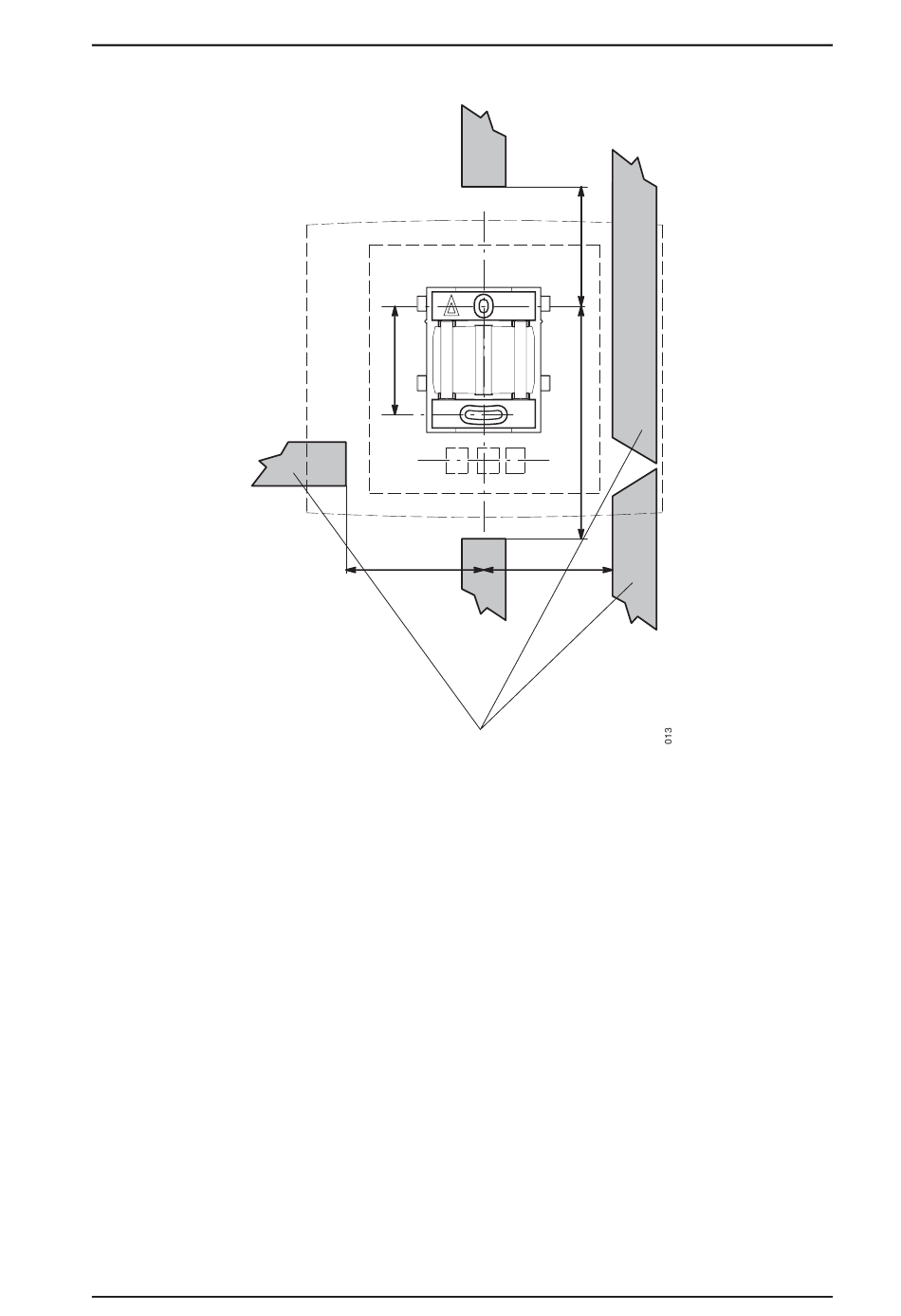

Figure 6. Minimum distances between a cable duct and the mounting bracket
4.2.5

Secure the Cable

1 For safety reasons secure the base station cable to a convenient point at about 30
cm from the base station.
If for some reason the base station drops, it is secured by the cable.
4.2.6

Pinning

1 Cut the cable to the correct length and connect the cable to a RJ45 modular jack.
2 For information on the pinning of the data jack see the following:
• IPBS,
• BS3x0,
Do not plug the connector in the base station yet!
Note: Since the distance between the base station and the wall is limited, a RJ45 modular
jack without cable retention must be used.
2007-06-18/ Ver. E
57 mm
75 mm
15 mm thick cable ducts
Pin the IPBS Cable on page 17.
Pin the BS3x0 Cable on page 17.
65 mm
TOP
125 mm
70 mm
TD 92372GB
16
