5.3.2

48 VDC

The 48 VDC (42 – 56 VDC) power input includes a fuse on the 48 VDC input to protect
against overload. The IPBL also has a protection circuit to protect both the IPBL and the
external power supply from damages caused by the user reversing the input terminals
during installation.
Figure 32.

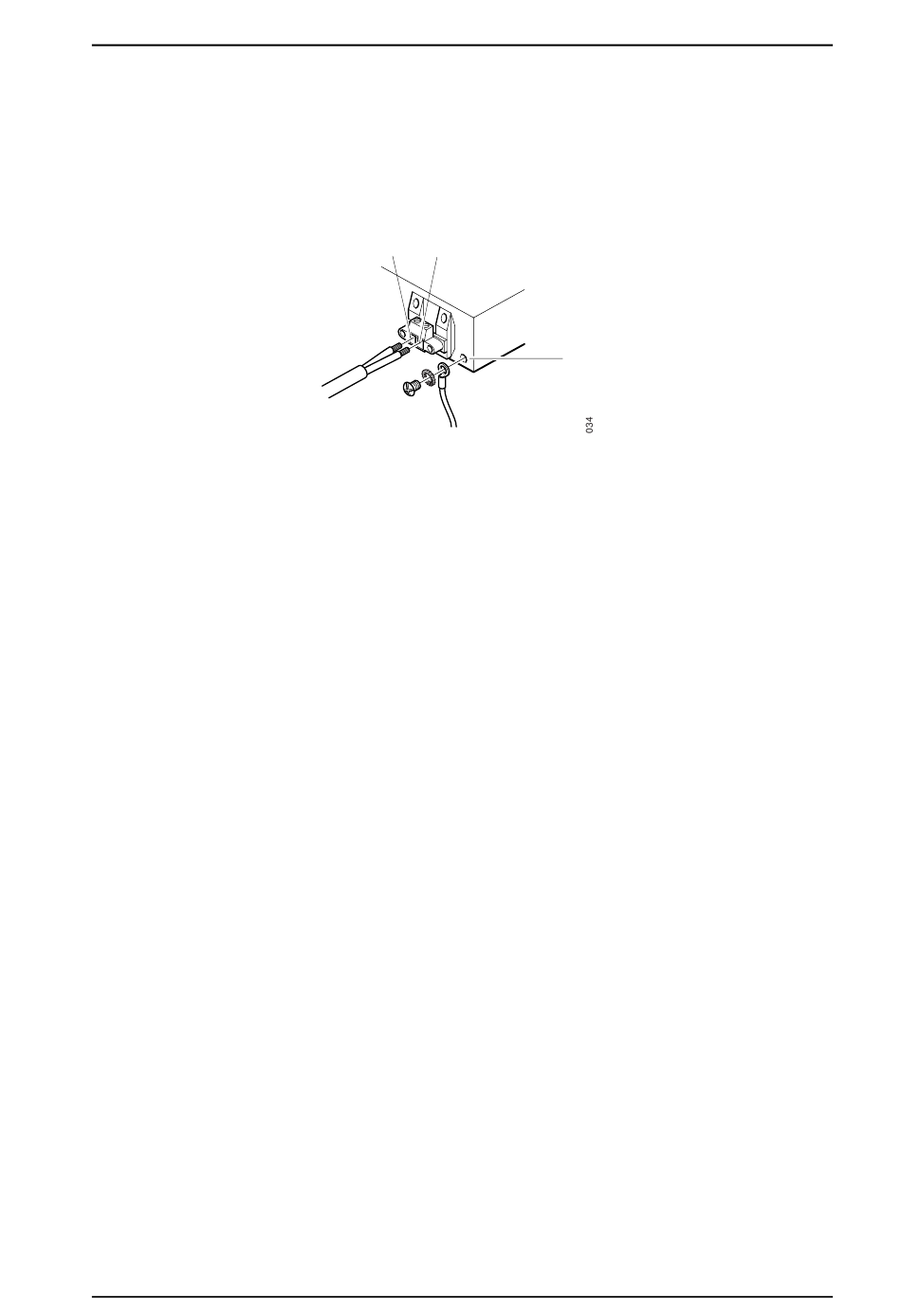

Figure 18. Pinning of the 48 VDC power supply
Note: An ground cable must be fastened to the protective earth (3) when 48 VDC is used
as power source.
1 Fasten the ground cable to the protective earth (3) using the attached M4 screw
(Philips) and washer.
2 Cut the power cable to the correct length.
3 Attach the positive lead to (1).
4 Attach the negative lead to (2).
5 Connect the power cable to 48 VDC power source.
The IPBL is switched on.
6

Configuration

This section describes how to configure the IPBS and IPBL using the web interface. The
recommended order to configure the equipment in the IP-DECT system is as follows:
1 Configure the master, see
2 Configure the standby master, see
3 Configure the slaves, see
6.1 Requirements
The following is required in order to configure the IP-DECT system:
• PC
• 10/100base-T Ethernet connection
6.1.1

Web Browser Requirements

To use the interface properly, the web browser has to meet the following requirements:
