Installation and Operation Manual
IP-DECT Base Station & IP-DECT Gateway
4.2.7
Connect the Base Station Cables
1
If it is required that the cables enter the base station centrally from above, guide the
cables through the recess in the middle of the base station as shown in
page 18.
Figure 24.
Data cable

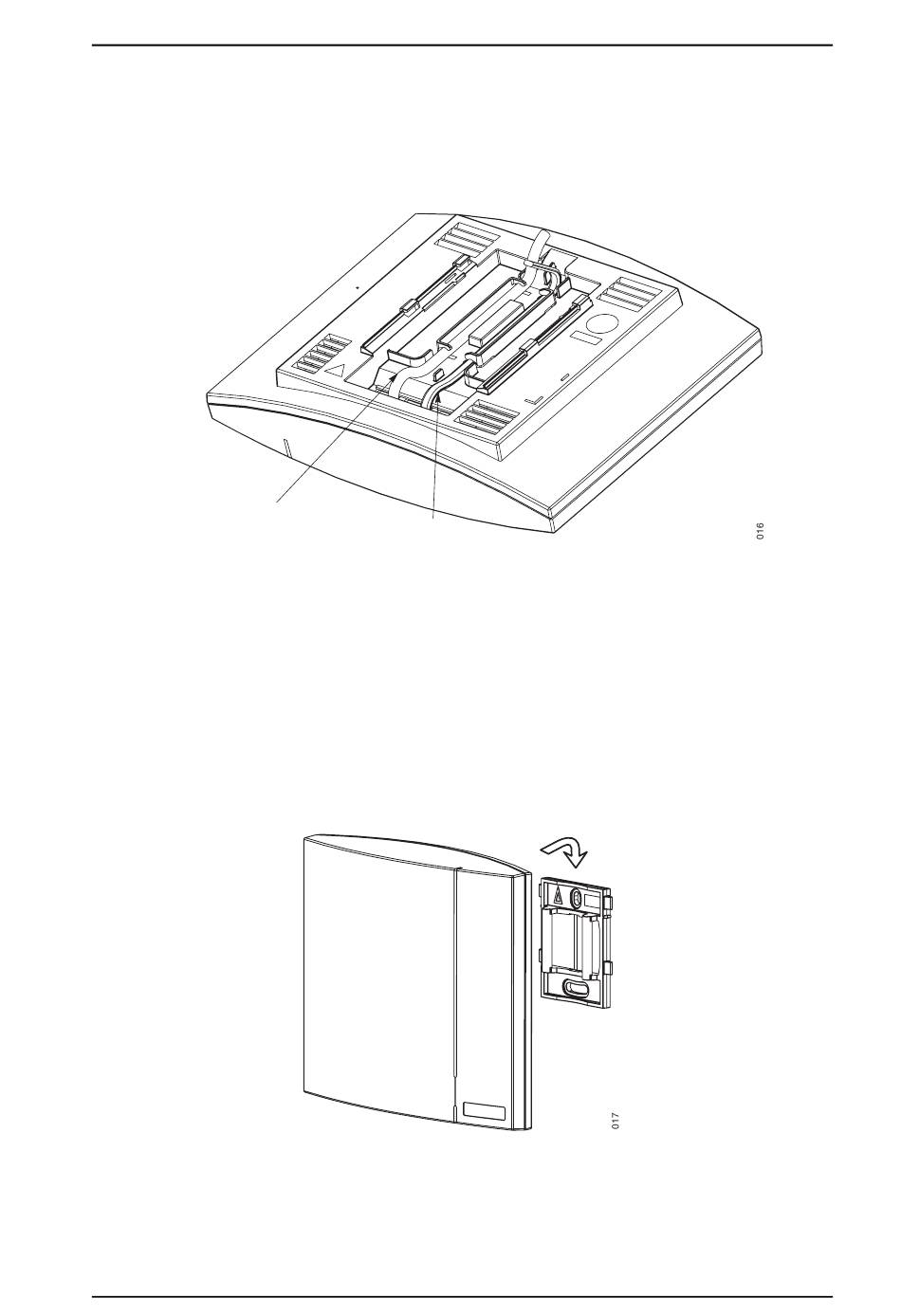

Figure 10. Cables entering centrally from above
2
Plug the modular jack of the data cable into one of the data/power connectors.
3
When an AC-adapter is used:
• Plug the modular jack of the AC-adapter in one of the data/power connectors.
• Plug the AC-adapter into a wall-outlet.
4.2.8
Mount the Base Station
1
Hold the base station flat against the mounting bracket and move it downwards
until it clicks, see
Figure 25.
Figure 11. Mounting the base station
2007-06-18/ Ver. E
Power cable
(if used)
figure
11.
TD 92372GB
figure 10
on
18
