Installation and Operation Manual
IP-DECT Base Station & IP-DECT Gateway
2.3
DECT Base Station BS3x0
The following versions of the are available:
• BS330 with Internal antenna
• BS340 with External antennas
2.3.1
DECT Base Station
Figure 11.
Front viewBack view

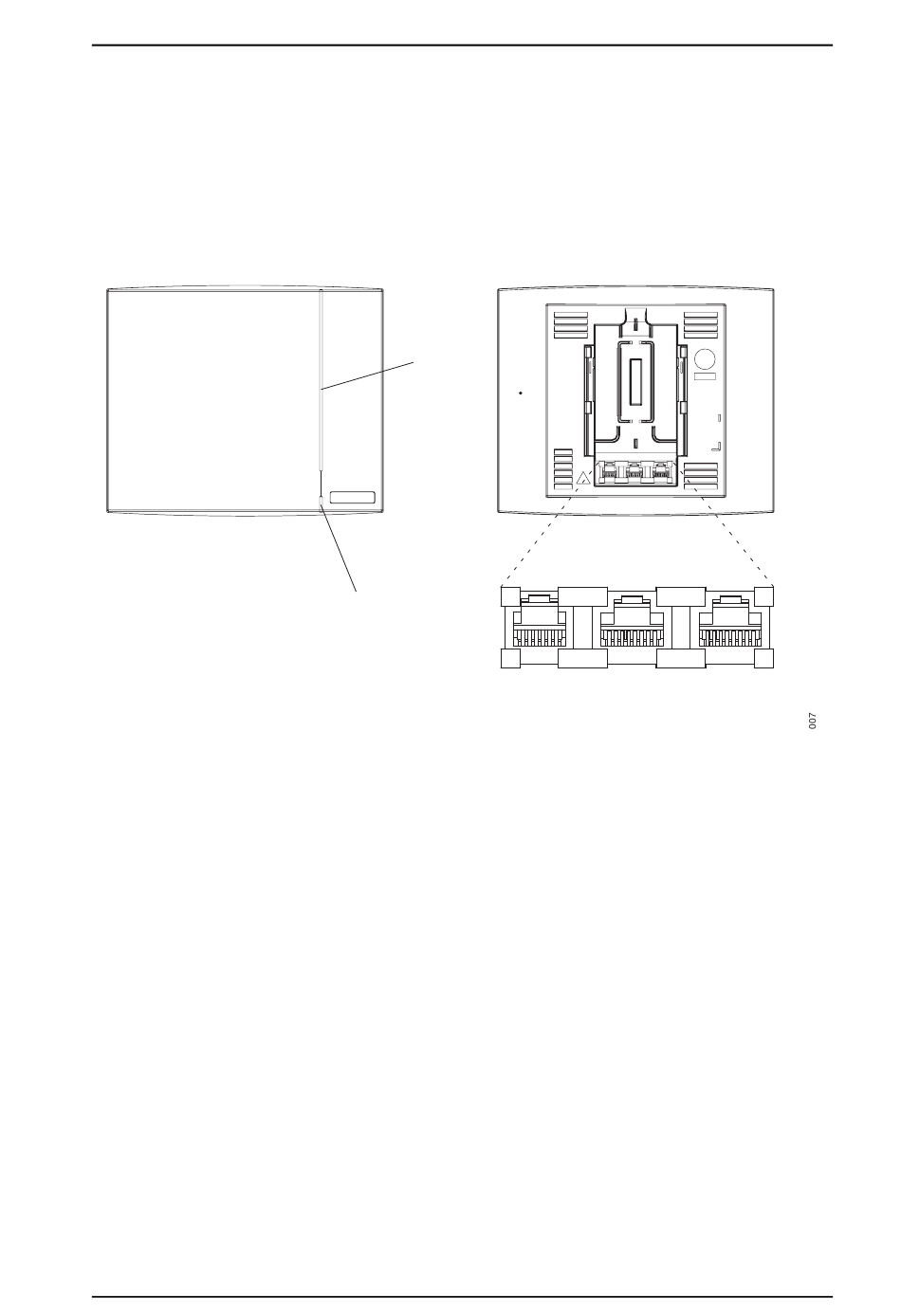

Figure 3. BS3x0 Overview
Contents of the Box
The box in which the base station is packed contains:
• A base station
• Two antennas (only base station with external antenna)
• A mounting bracket
• Two screws with wall plugs
Power Distribution
The base station can be powered using the following methods:
• From the IPBL via the Express Powering Pair (EPP) and data pairs
• With a local AC-adapter
Note: For more information about power distribution, see
page 19.
2007-06-18/ Ver. E
LED2
LED1
Test
Data/Power
(RJ12)
(RJ45)
4.3 Power the Base Station
TD 92372GB
Data/Power
(RJ45)
on
7
