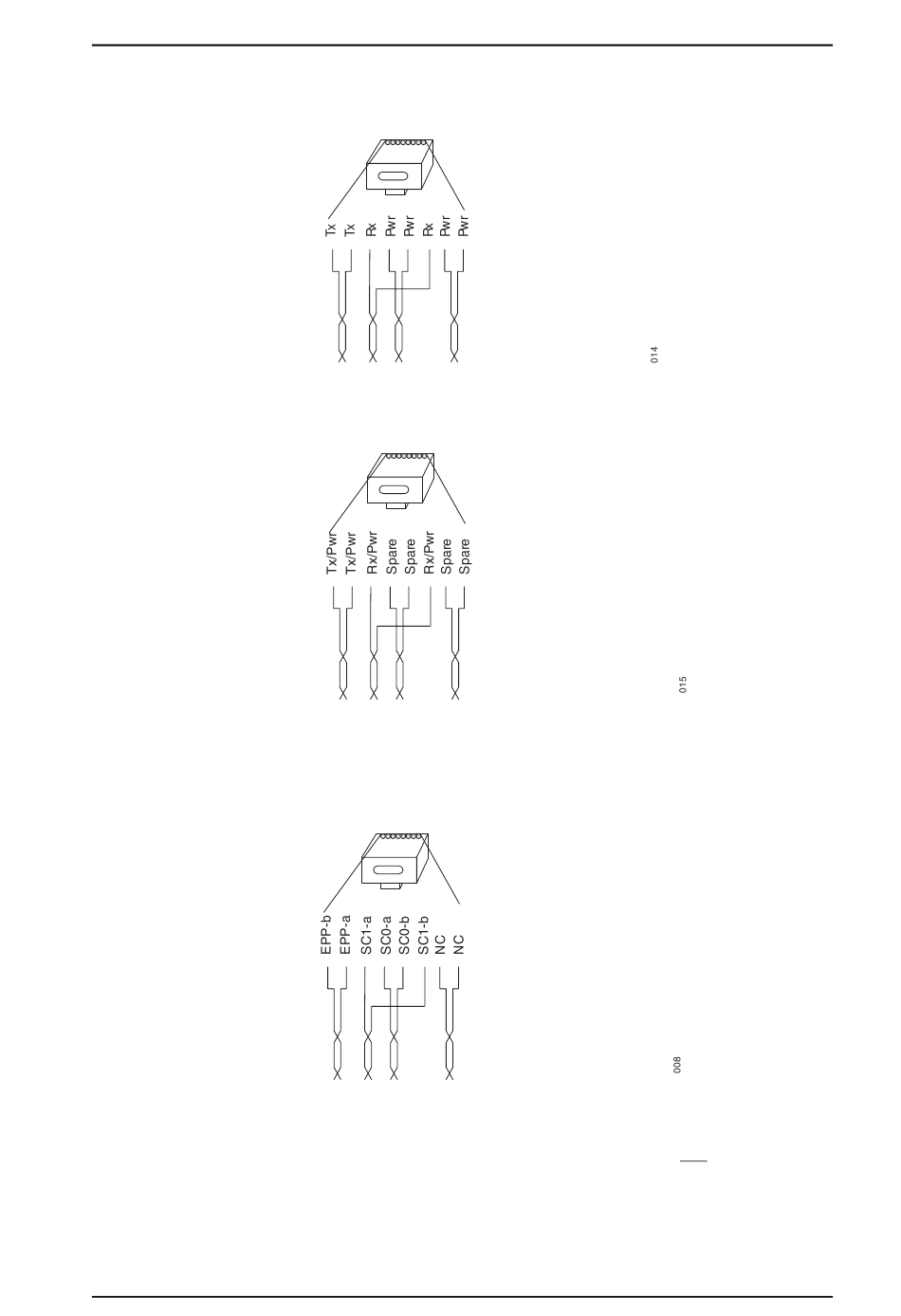

Pin the IPBS Cable
Figure 21.
RJ45
modular jack
Figure 7. Connector pinning of the LAN/PoE connector, power feed over the spare
Figure 22.
RJ45
modular jack
Figure 8. Connector pinning of the LAN/PoE connector, power feed over the Rx/Tx
Pin the BS3x0 Cable
Figure 23.
RJ45
modular jack
Figure 9. Connector pinning of the Data connector
IMPORTANT: If local power supply is used, the EPP cable pair must not be connected.
2007-06-18/ Ver. E
1
2
3
4
5
6
7
8
cable pairs.
1
2
3
4
5
6
7
8
data cable pairs.
1
2
3
4
5
6
7
8
Tx = Transmitter data pair
Rx = Reciever data pair
Pwr = Power pairs
Tx/Pwr = Transmitter & power pair
Rx/Pwr = Reciever & power pair
NC = Not Connected
SC = Serial Channel
EPP = Express Power Pairs
NC = Not Connected
TD 92372GB
