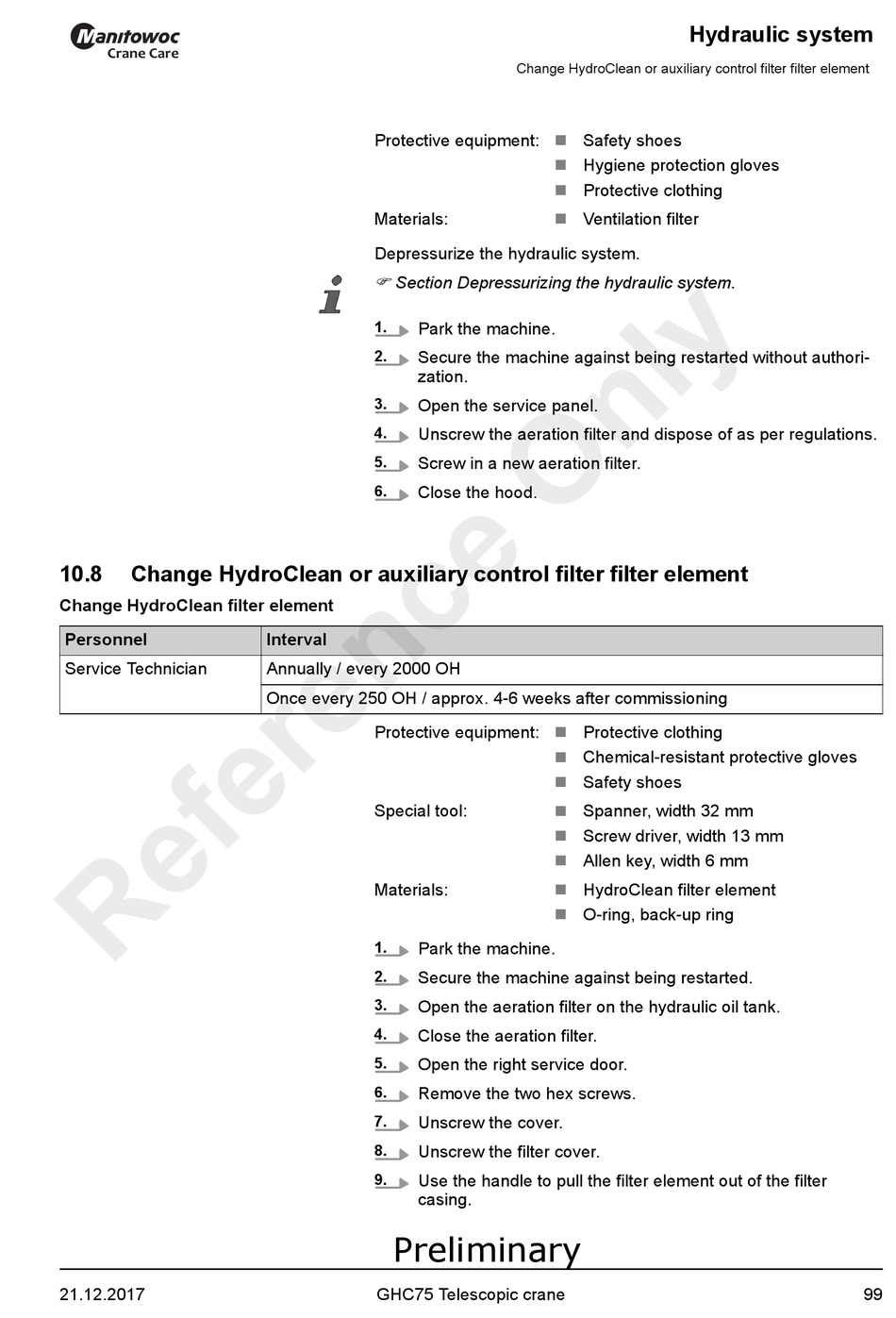

Change HydroClean or auxiliary control filter filter element

Change HydroClean filter element
Personnel
Service Technician
21.12.2017
Protective equipment:
Materials:
Depressurize the hydraulic system.
F Section Depressurizing the hydraulic system.
Park the machine.
1.
Secure the machine against being restarted without authori-
2.
zation.
3. Open the service panel.
Unscrew the aeration filter and dispose of as per regulations.
4.
Screw in a new aeration filter.
5.
Close the hood.
6.
Interval
Annually / every 2000 OH
Once every 250 OH / approx. 4-6 weeks after commissioning
Protective equipment:
Special tool:
Materials:
Park the machine.
1.
Secure the machine against being restarted.
2.
Open the aeration filter on the hydraulic oil tank.
3.
Close the aeration filter.
4.
5. Open the right service door.
Remove the two hex screws.
6.
Unscrew the cover.
7.
Unscrew the filter cover.
8.
Use the handle to pull the filter element out of the filter
9.
casing.
Preliminary
GHC75 Telescopic crane
Change HydroClean or auxiliary control filter filter element
Safety shoes
n
Hygiene protection gloves
n
Protective clothing
n
Ventilation filter
n
Protective clothing
n
Chemical-resistant protective gloves
n
Safety shoes
n
Spanner, width 32 mm
n
Screw driver, width 13 mm
n
Allen key, width 6 mm
n
HydroClean filter element
n
O-ring, back-up ring
n
Hydraulic system
99
