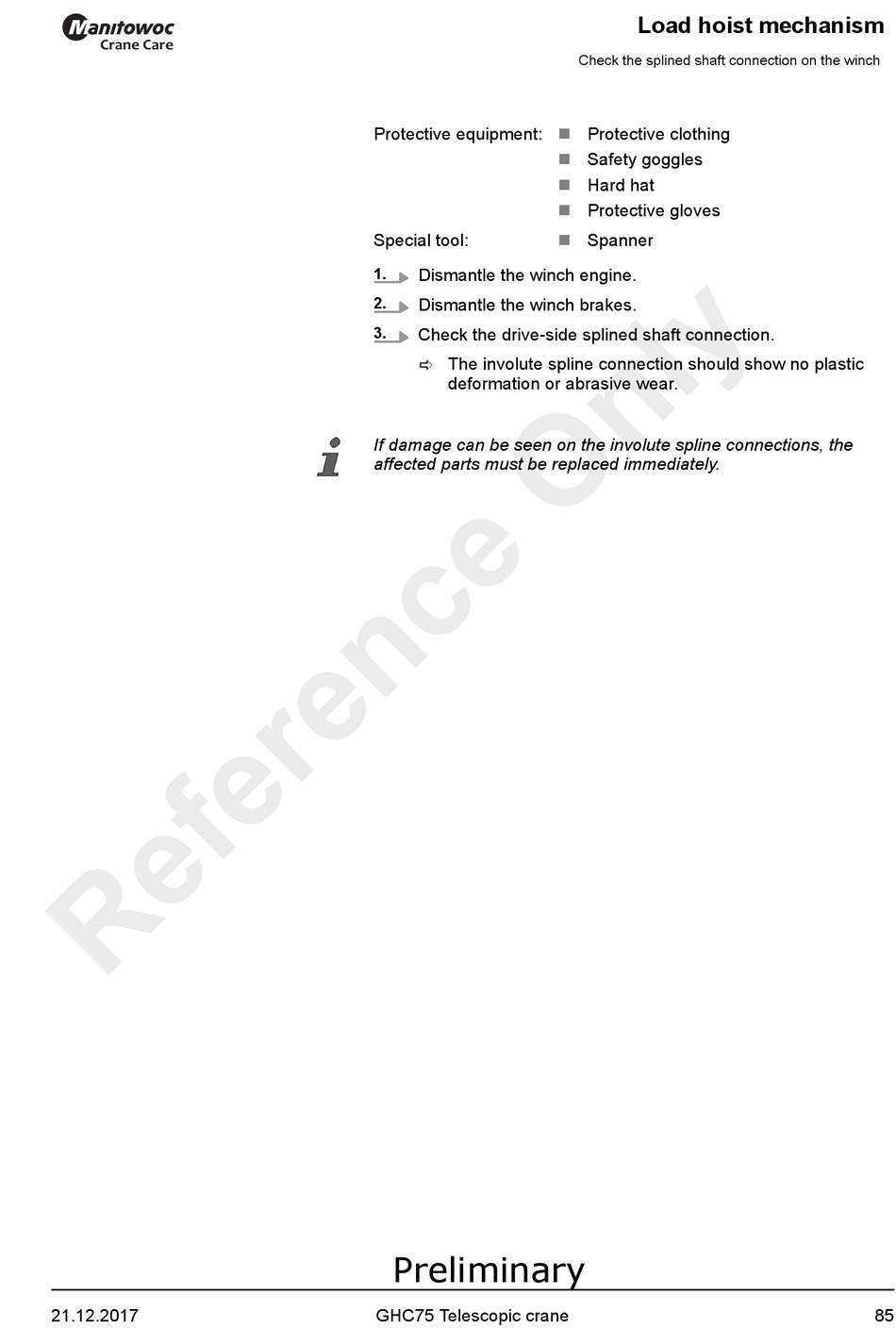

Manitowoc GHC75 Maintenance Instructions Manual page 85

Crane Care
21.12.2017
Protective equipment:
Special tool:
1. Dismantle the winch engine.
Dismantle the winch brakes.
2.
3. Check the drive-side splined shaft connection.
ð The involute spline connection should show no plastic
deformation or abrasive wear.
If damage can be seen on the involute spline connections, the
affected parts must be replaced immediately.
Preliminary
GHC75 Telescopic crane
Load hoist mechanism
Check the splined shaft connection on the winch
Protective clothing
n
Safety goggles
n
Hard hat
n
Protective gloves
n
Spanner
n
85
