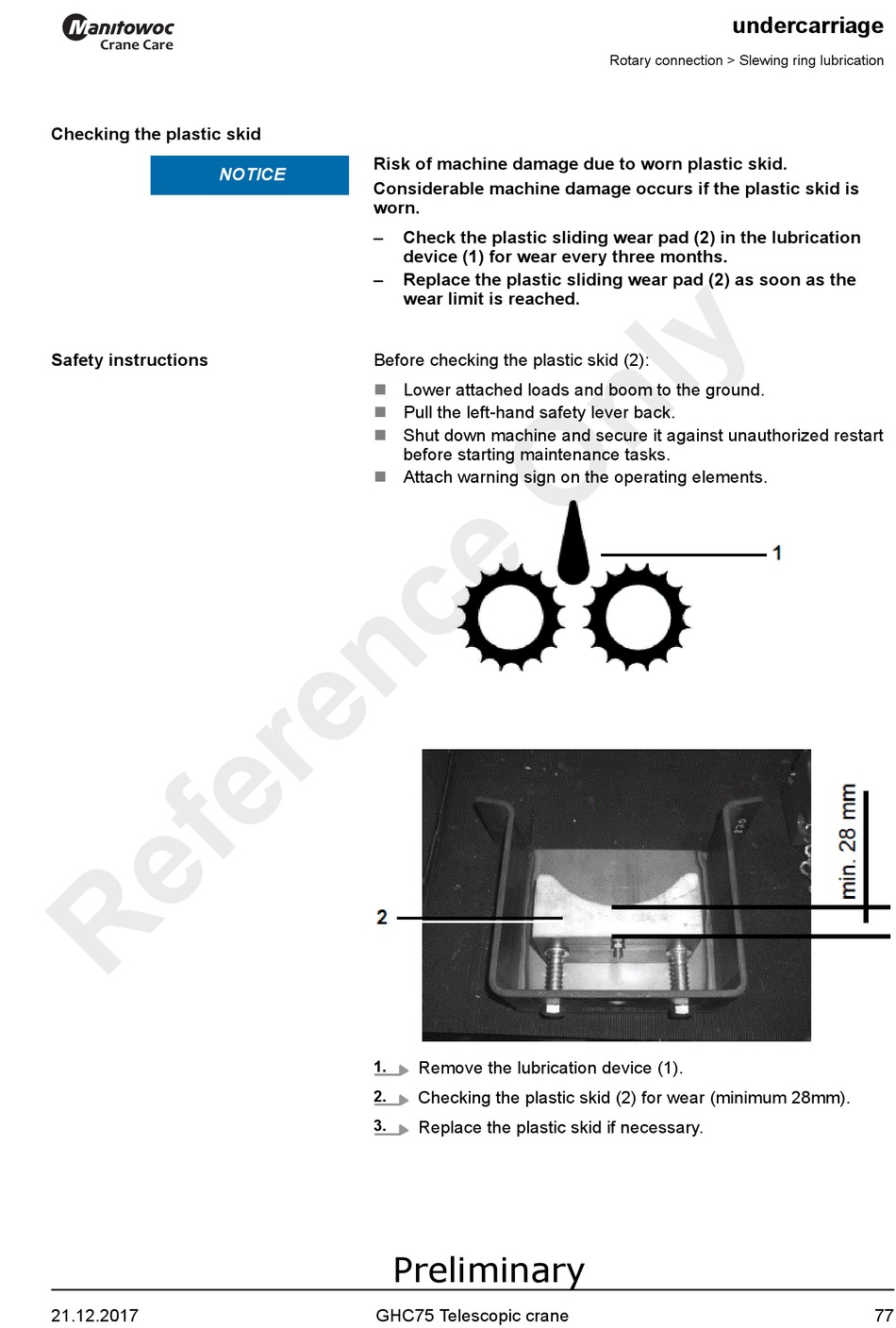

Checking the plastic skid
NOTICE
Safety instructions
21.12.2017
Risk of machine damage due to worn plastic skid.
Considerable machine damage occurs if the plastic skid is
worn.
– Check the plastic sliding wear pad (2) in the lubrication
device (1) for wear every three months.
– Replace the plastic sliding wear pad (2) as soon as the
wear limit is reached.
Before checking the plastic skid (2):
Lower attached loads and boom to the ground.
n
Pull the left-hand safety lever back.
n
Shut down machine and secure it against unauthorized restart
n
before starting maintenance tasks.
Attach warning sign on the operating elements.
n
Remove the lubrication device (1).
1.
Checking the plastic skid (2) for wear (minimum 28mm).
2.
Replace the plastic skid if necessary.
3.
