Installing the Device in the Rack

NOTE
Two people are required to install the device in a rack. One person must hold the device while the other attaches
it to the rack.
Complete the following steps to install the device in the rack.
1. Position the device in the rack as shown in the following figure. Provide temporary support under the device as you
secure it to the rack.
2. Attach the right front bracket to the right front rack post using two 10-32 x 5/8-in. screws and two retainer nuts. Select
the correct nuts for either square or round holes in the rack posts.
3. Attach the left front bracket to the left front rack post using two 10-32 x 5/8-in. screws and two nuts and tighten all
10-32 x 5/8-in. screws to a torque of 25 in.-lb (29 cm-kg).

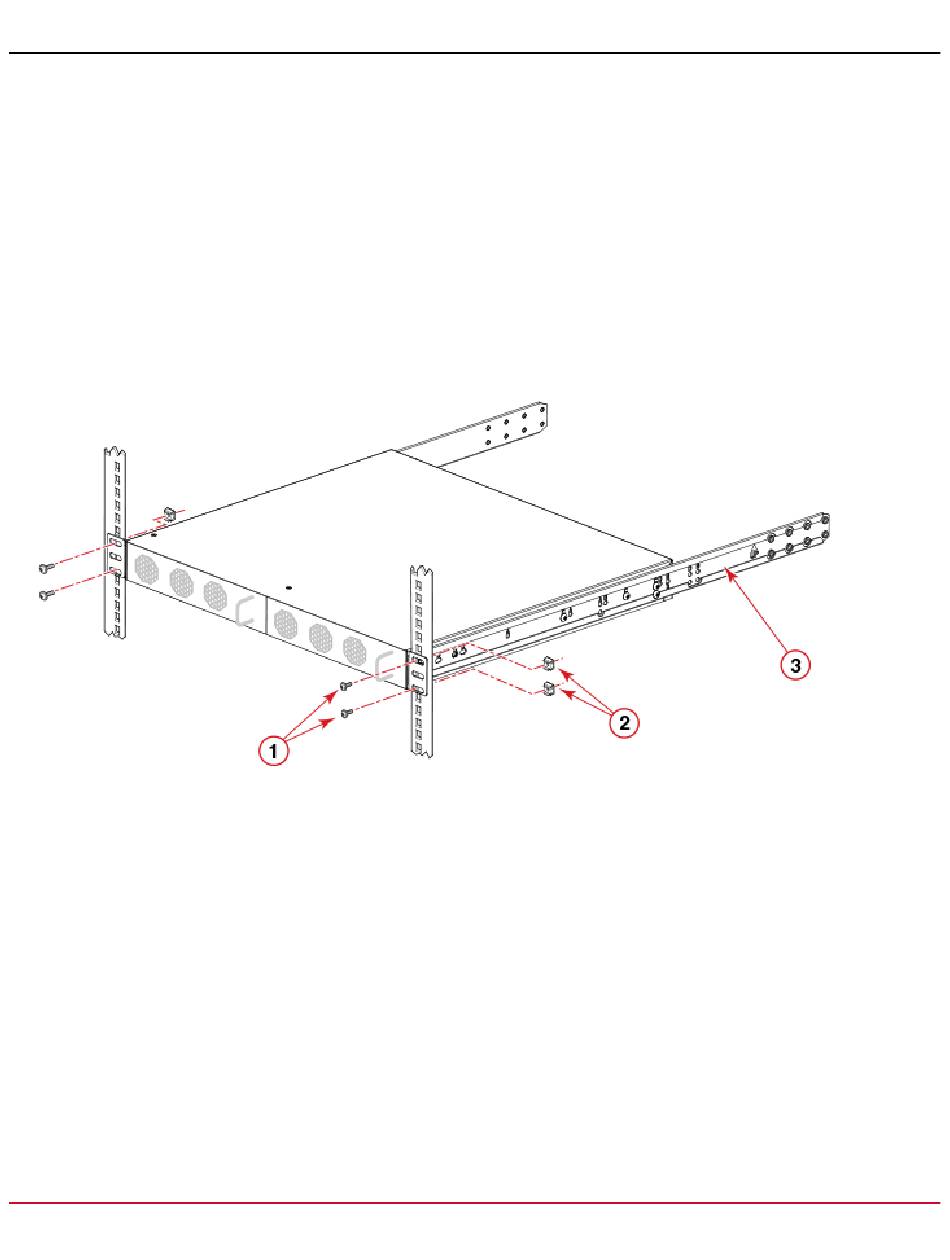

Figure 16: Positioning the Device in the Rack
1. Screws, 10-32 x 5/8 in. Panhead Phillips
2. Retainer Nuts, 10-32, Square or Round Hole (as needed)
3. Bracket, Front Right

Attaching the Rear Brackets to the Front Brackets

NOTE
The rear brackets in the kit are also labeled UP with an upward pointing arrowhead to reduce confusion in
mounting.
