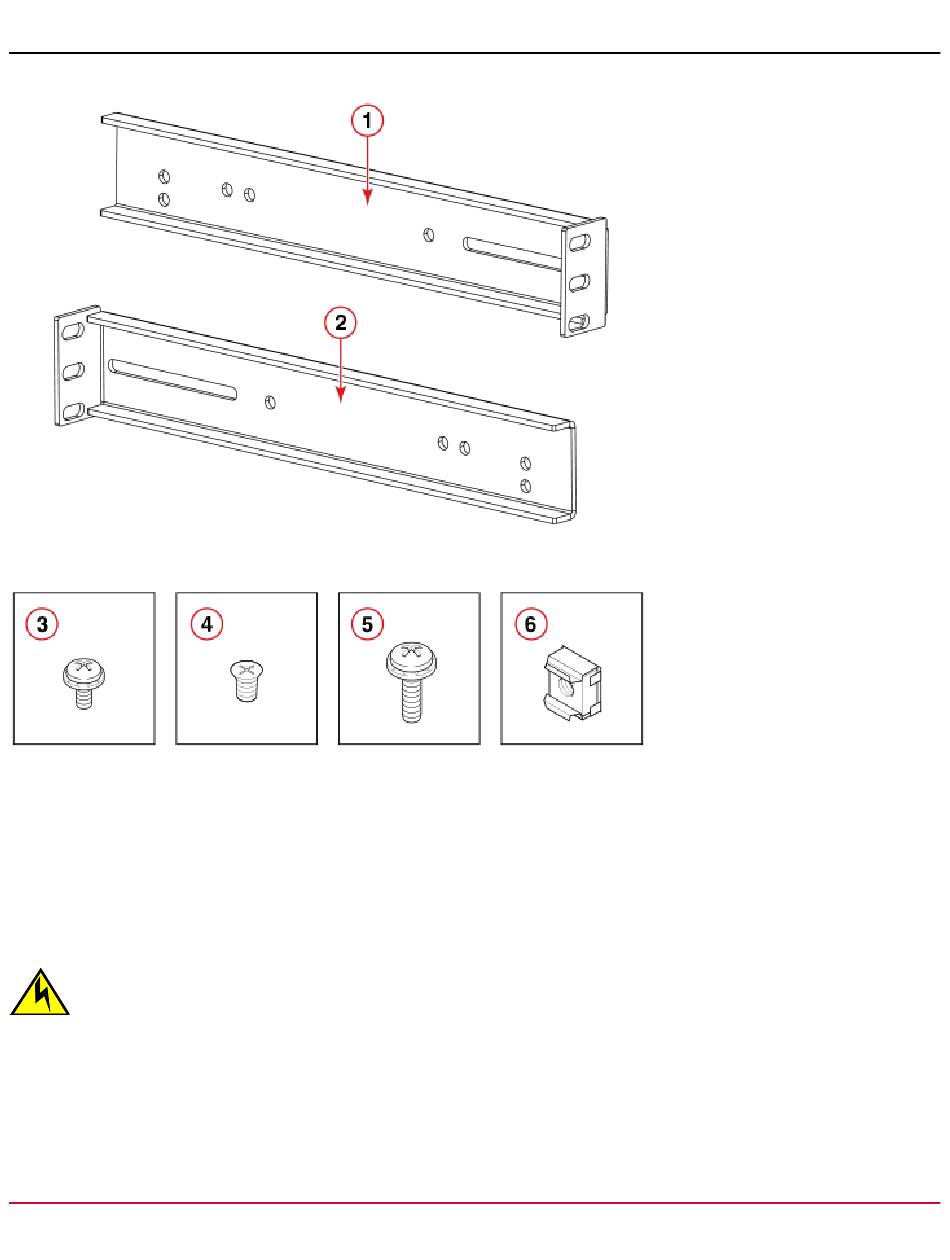

Figure 3: Rack Kit Parts
1. Bracket, Front Right and Back Left
2. Bracket, Front Left and Back Right
3. Screw, 8-32 x 5/16-in. Panhead Phillips (12)
4. Screw, 6-32 x 1/4-in. Flathead Phillips (8)
5. Screw, 10-32 x 5/8-in. Panhead Phillips (8)
6. Retainer Nut, 10-32 (8)

Attaching the Front Brackets to the Device

CAUTION
The device must be turned off and disconnected from the fabric during this procedure.
