53-1004408-11 Installation Guide

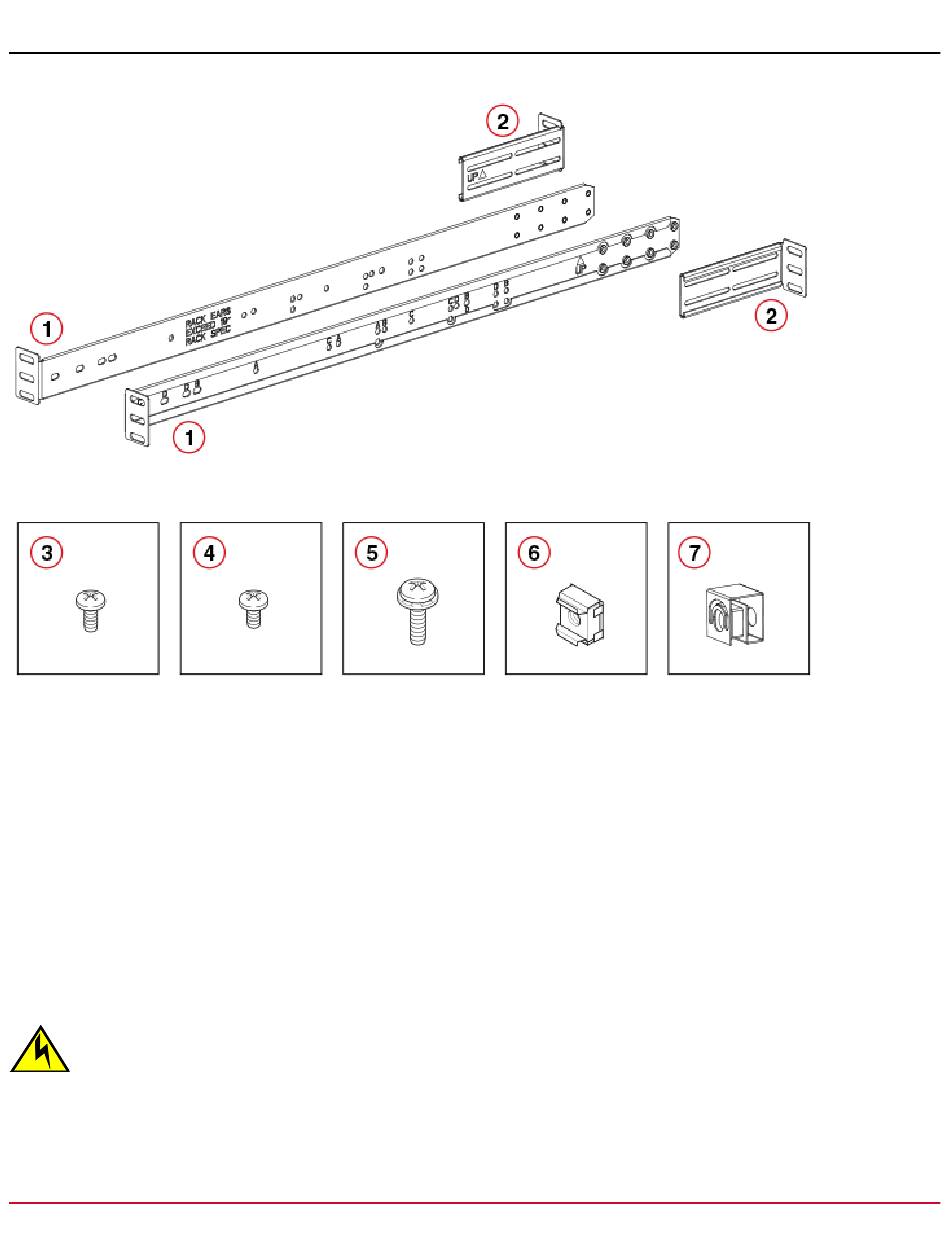

Figure 13: Rack Kit Parts
1. Brackets, Front (2)
2. Brackets, Rear Short (2)
3. Screws, 8-32 x 5/16-in. Panhead Phillips with Patchlock (10)
4. Screws, 6-32 x 1/4-in. Panhead Phillips with Patchlock (8)
5. Screws, 10-32 x 5/8-in. Panhead Phillips (8)
6. Retainer nuts, 10-32, for Square-Hole Rack Posts (8)
7. Clip nuts, 10-32, for Round-Hole Rack Posts (8)
NOTE
The brackets in the kit are labeled UP with an upward pointing arrowhead to reduce confusion in mounting.
NOTE
Depending on the device type , not all parts may be used in an installation.

Attaching the Front Brackets

CAUTION
The device must be turned off and disconnected from the fabric during this procedure.
Complete the following steps to attach the front brackets to the device.
NOTE
Pay particular attention to the labeling on the brackets.
