Monitoring the Device

Interpreting Port-Side LEDs

System activity and status can be determined through the activity of the LEDs on the switch. There are three possible LED
states: no light, a steady light, and a flashing light. Flashing lights may be slow, fast, or flickering. The lights are green or
amber. Sometimes, the LEDs may flash either of the colors during boot, POST, or other diagnostic tests. This is normal; it
does not indicate a problem unless the LEDs do not indicate a healthy state after all boot processes and diagnostic tests
are complete.

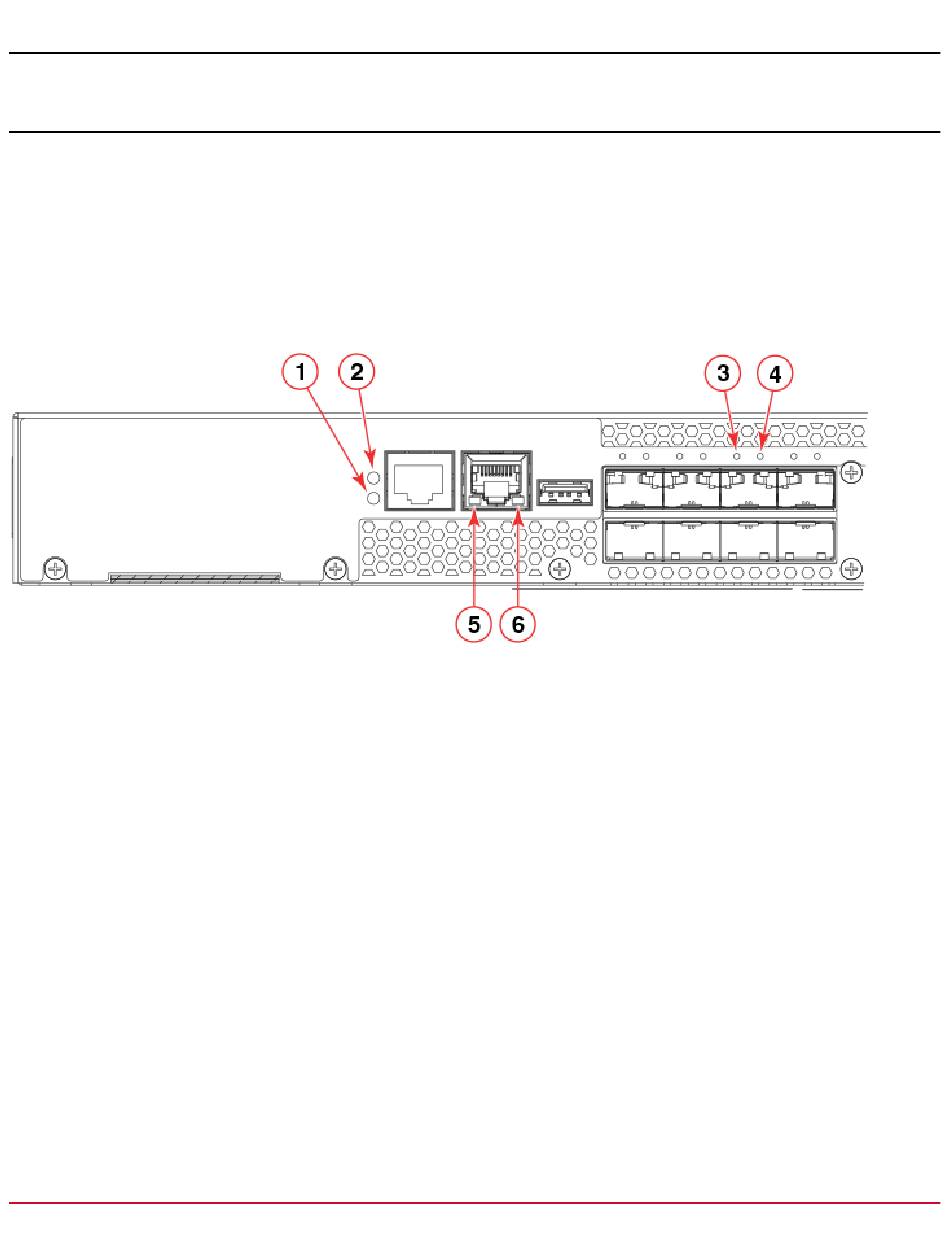

Figure 23: Brocade G610 Port-Side LEDs
1. System Status LED

2. System Power LED

3. SFP+ (Upper) Port 2 Status LED
4. SFP+ (Lower) Port 6 Status LED
5. Eth Port Link/Speed LED
6. Eth Port Activity LED
NOTE
There are four built-in fans in Brocade G610. The device continues to run even if two fans fail. However, if the
third fan fails, the device will shut down.
NOTE
The condition of the Status LED is independent of MAPS "Current Switch Policy Status."
System Power LED
See the following table to interpret the system power status LED.
