Installing Transceivers and Cables

Time and Items Required

The installation or replacement procedure for one transceiver takes less than 5 minutes. Ensure that the following items
are available:
•
Required number of compatible power cables
•
Required number of supported Brocade-branded transceivers
For current information on qualified transceivers supported by this device, refer to the Brocade Transceiver Support
Matrix and Brocade Transceiver Modules webpage on www.broadcom.com.
DANGER
Use only optical transceivers that are qualified by Broadcom and comply with the FDA Class 1 radiation
performance requirements defined in 21 CFR Subchapter I, and with IEC 60825 and EN60825. Optical
products that do not comply with these standards might emit light that is hazardous to the eyes.
•
Required number of compatible fiber-optic cables
•
Optical transceiver extraction tool
NOTE
Many Brocade switches, backbones, and directors come with a transceiver extraction tool and holster. The
extraction tool is designed to remove transceivers from modules where the space is limited. If you did not
receive this tool with your product, you can order it from Broadcom using part number XBR-48000-R0129.

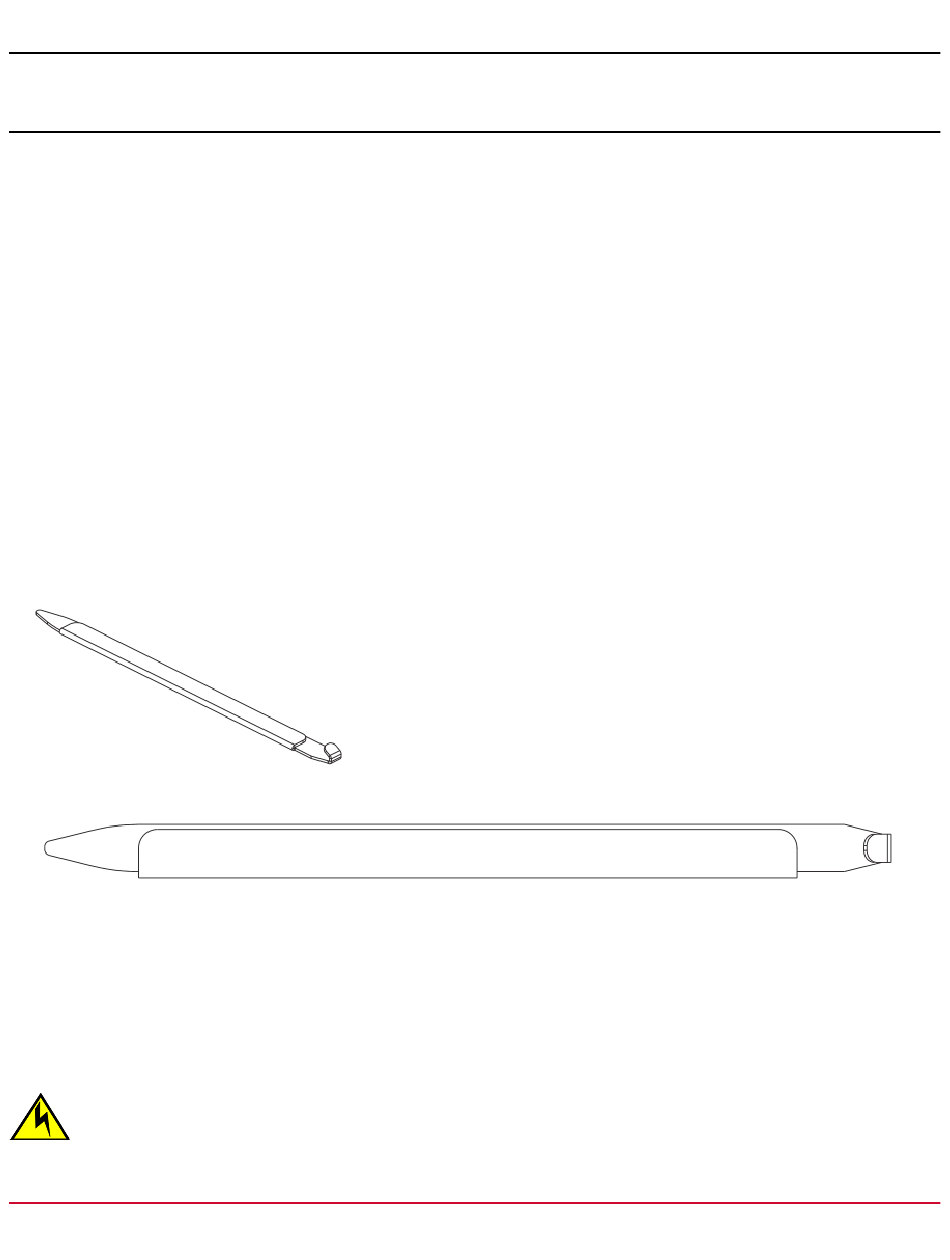

Figure 19: Optical Transceiver Extraction Tool

Precautions Specific to Transceivers and Cables

DANGER
All fiber-optic interfaces use Class 1 lasers.
DANGER
Use only optical transceivers that are qualified by Broadcom and comply with the FDA Class 1 radiation
performance requirements defined in 21 CFR Subchapter I, and with IEC 60825 and EN60825. Optical products
that do not comply with these standards might emit light that is hazardous to the eyes.
CAUTION
Before plugging a cable into any port, be sure to discharge the voltage stored on the cable by touching the
electrical contacts to ground surface.
