Attaching the Rear Brackets to the Front Brackets

Complete the following steps to attach the rear brackets to the front brackets.
1. Position the right rear bracket inside the right front bracket, as shown in the following figure.
2. Attach the brackets using four 6-32 x 1/4-in. screws.
3. Repeat step 1 and step 2 to attach the left rear bracket to the left front bracket.
4. Adjust the brackets to the rack depth and tighten all the 6-32 x 1/4-in. screws to a torque of 9 in-lbs (10 cm-kgs).

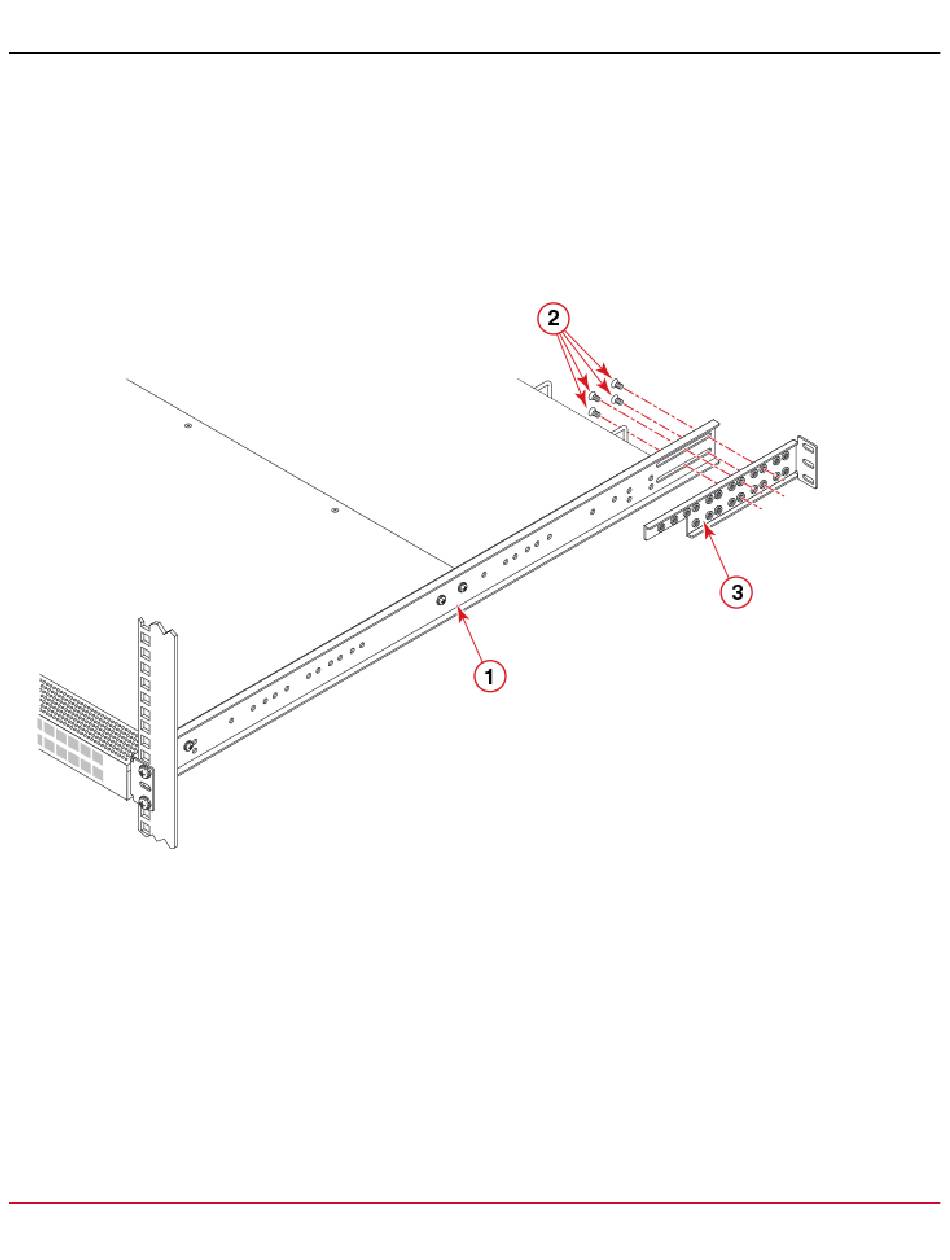

Figure 11: Attaching the Rear Brackets to the Front Brackets
1. Bracket, front right
2. Screw, 6-32 x 1/4-in., flathead Phillips
3. Bracket, rear right
