Replacing An Sfp+ Transceiver - Broadcom G610 Hardware Installation Manual

53-1004408-11 Installation Guide

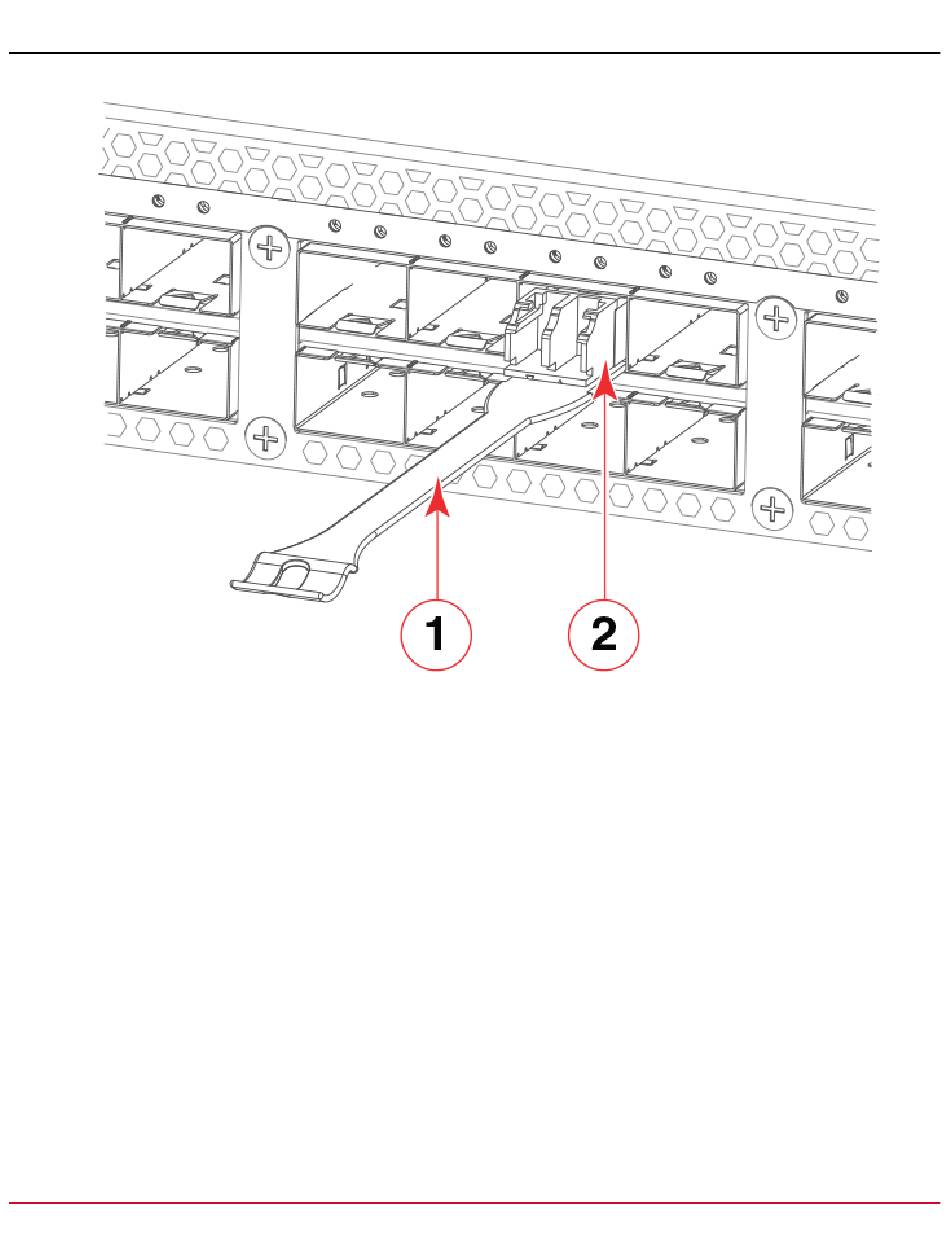

Figure 21: Closeup of Installing a 32G SFP+ Transceiver into an Upper Port
1. Pull Tab
2. Transceiver
2. Position a cable so that the key (the ridge on one side of the cable connector) is aligned with the slot in the transceiver.
Insert the cable into the transceiver until the latching mechanism clicks.
NOTE
Cables are keyed so that they can be inserted in only one way. If a cable does not slide in easily, ensure that
it is correctly oriented. Do not insert any unsupported cable intended for an other type of transceiver into a
regular SFP+ transceiver. You may damage the cable as well as the transceiver.

Replacing an SFP+ Transceiver

Complete the following steps to remove an SFP+ transceiver and then install a new SFP+ transceiver.
NOTE
SFP+ transceivers are hot-swappable.
