Attaching the Front Brackets

Perform the following steps to attach the front brackets to the device:
1. Position the right front bracket with the flat side against the right side of the device at the front of the device.
2. Insert four 8-32 x 5/16-in. flathead screws through the vertically aligned holes in the bracket and then into the holes on
the side of the device. Use the upper and lower screw holes, leaving the center holes empty.
3. Repeat Step 1 and Step 2 to attach the left front bracket to the left side of the device.
4. Tighten all 8-32 x 5/16-in. screws to a torque of 17 cm-kg (15 in.-lb).

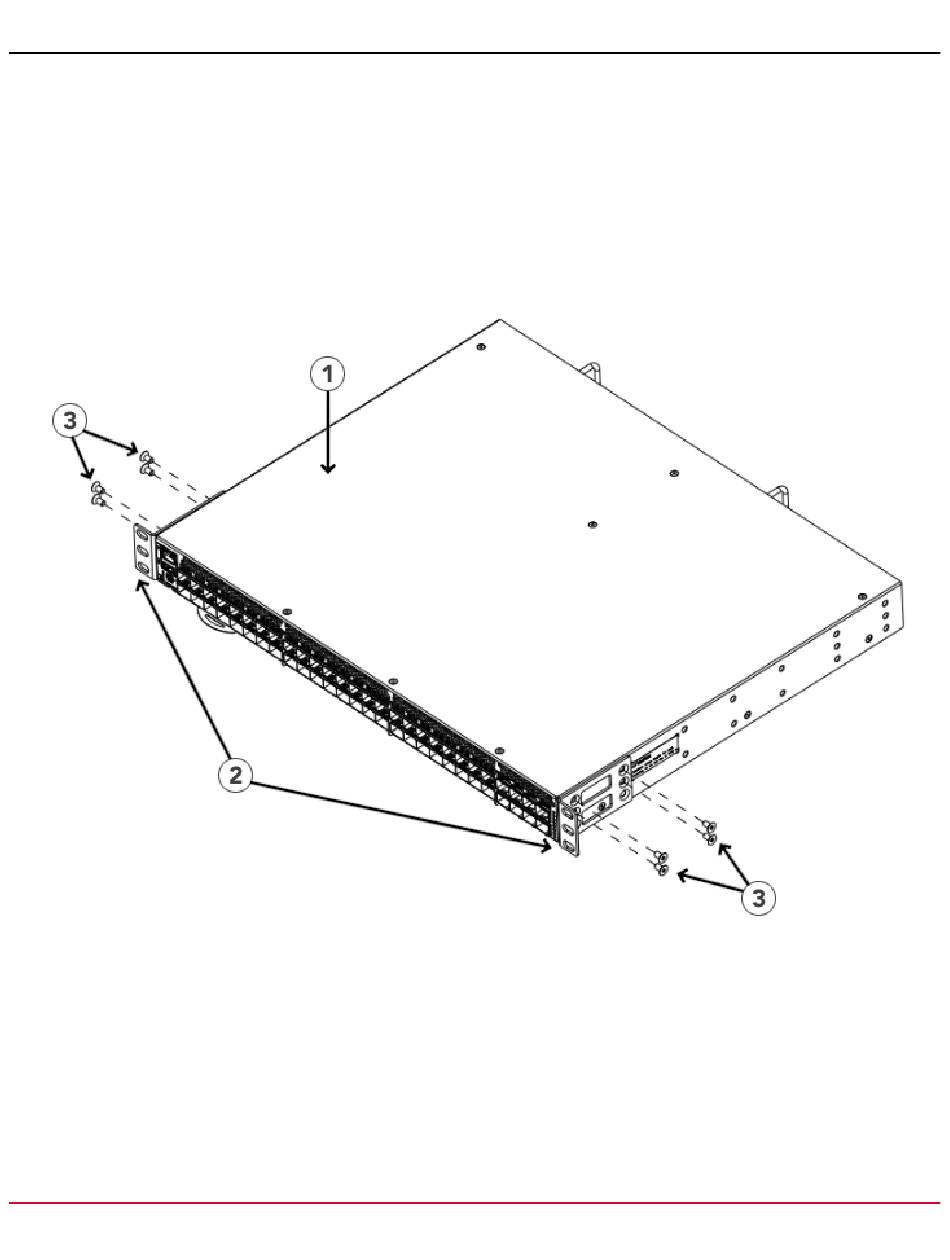

Figure 6: Attaching the Front Brackets
1. Brocade Device
2. Front Brackets
3. Screws, 8-32 x 5/16-in. Flathead Phillips
®
