STM32CubeMX is a graphical tool that allows to easily configure STM32 microcontrollers
and to generate the corresponding initialization C code through a step-by-step process.
The first step consists in selecting the STM32 microcontroller that matches the required set
of peripherals. MCU can be selected as stand-alone for custom PCB (MCU Selector) or pre-
integrated into one of STMicroelectronics hardware kit (Board Selector)
In the second step, the user must configure each required embedded software thanks to a
pinout-conflict solver, a clock-tree setting helper, a power-consumption calculator, and a
utility performing MCU peripheral configuration (GPIO, USART, and others) and middleware
stacks (USB, TCP/IP, and others).
Finally, the user launches the generation of the initialization C code based on the selected
configuration. This code is ready to be used within several development environments. The
user code is kept at the next code generation.
Key features
•
Intuitive STM32 microcontroller selection
•
Rich graphical user interface configuration:
–
–
–
–
•
C code project generation covering STM32 microcontroller initialization compliant with
IAR Systems
•
Available as a standalone software running on Windows
operating systems, or through Eclipse plug-in

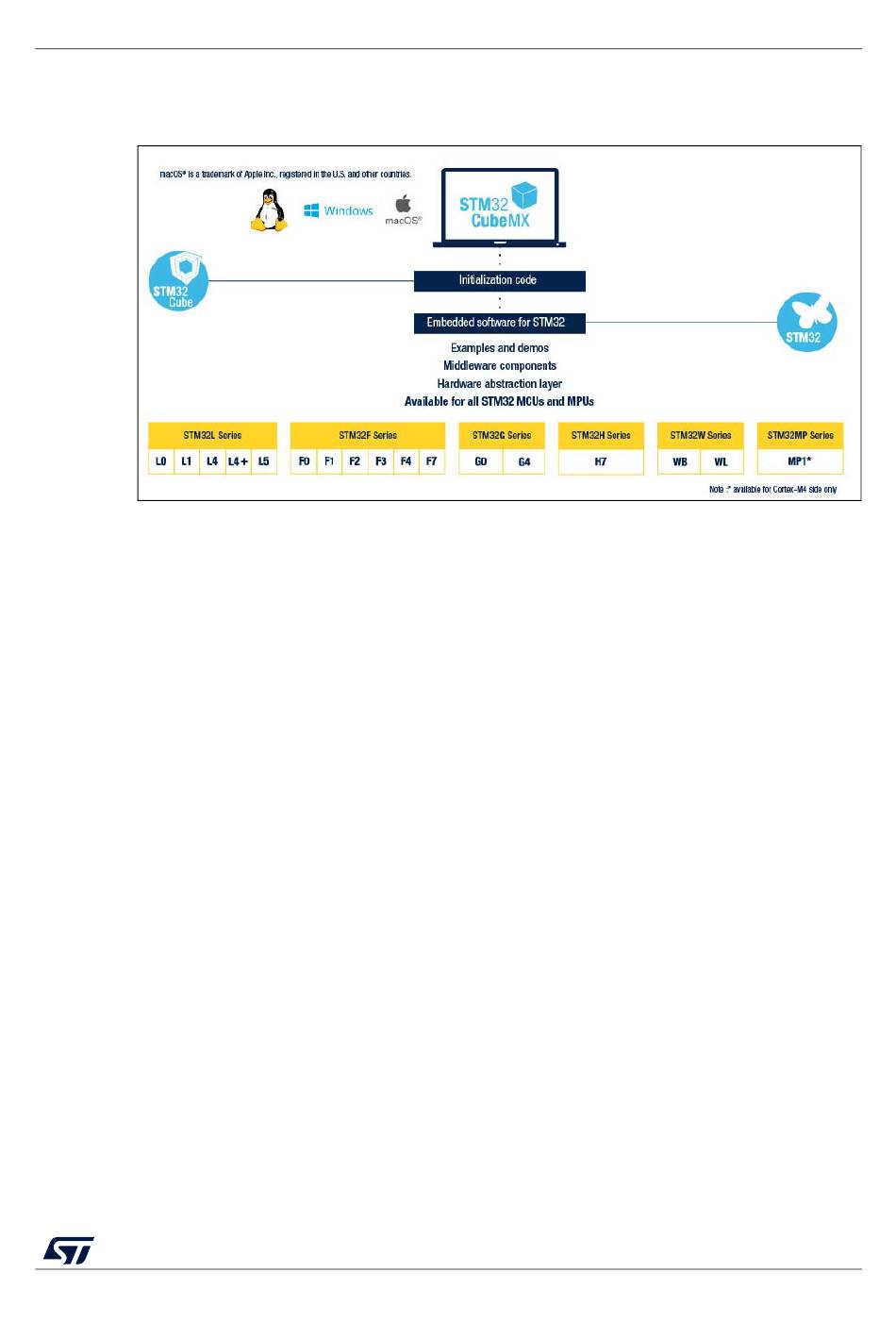

Figure 12. STM32CubeMX Configure and code generation

Pinout with automatic conflict resolution
Clock tree with dynamic validation of configuration
Peripherals and middleware functional modes and initialization with dynamic
validation of parameter constraints
Power consumption calculation for a user-defined application sequence
® ®
, Keil and GCC compilers.
