AN4989 STM32 ecosystem outlines
All STM32 Nucleo boards integrate an ST-LINK debugger/programmer, so there is no need
for a separate probe.
The figure below shows an example of STM32 Nucleo structure

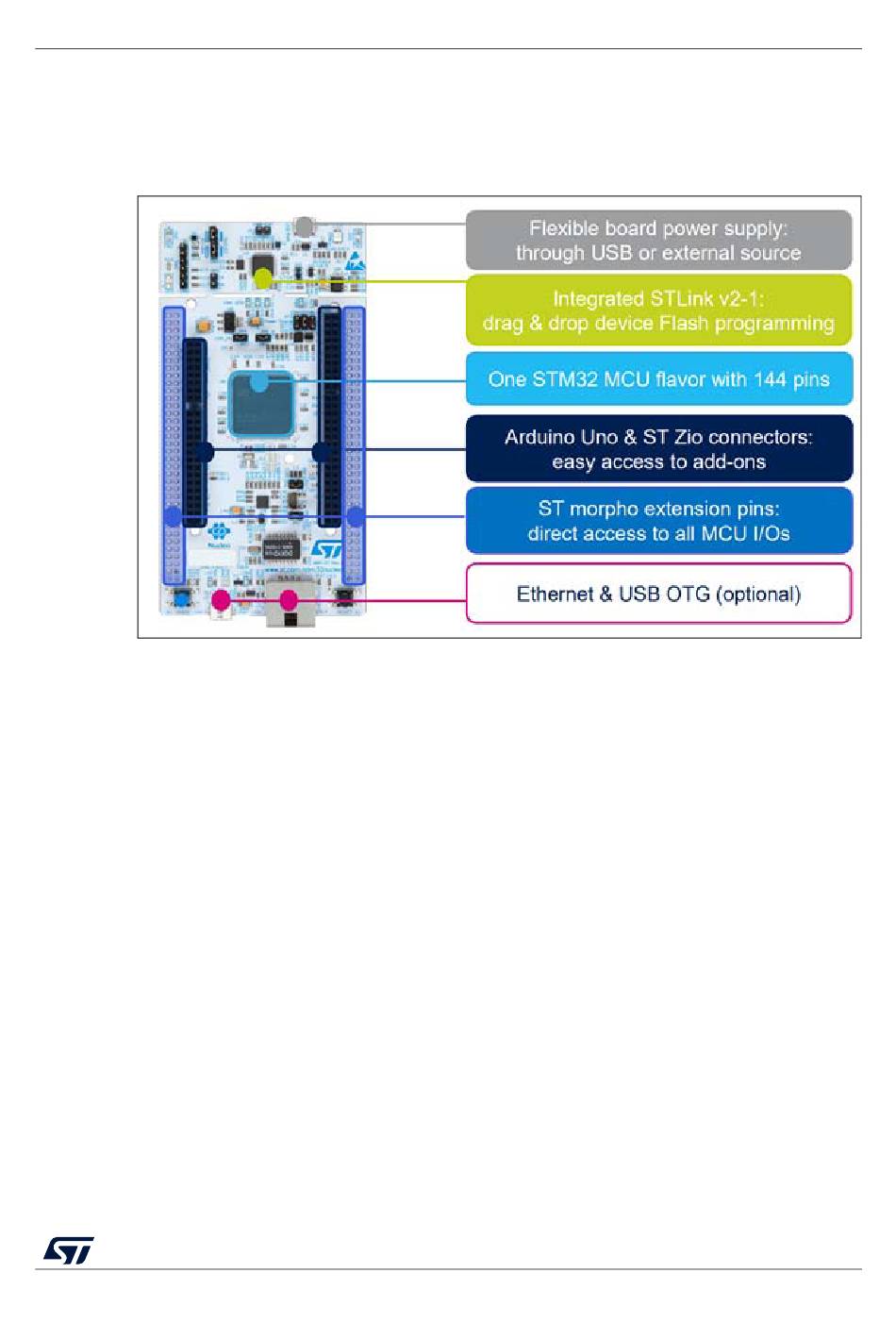

Figure 4. STM32 Nucleo-144 structure

A complete description of the embedded ST-LINK features is provided in Section 2.1.2: ST-
LINK probe on page 16. Additional information and access to Nucleo boards complete
documentation sets are available at www.st.com.
AN4989 Rev 3 11/118
117
