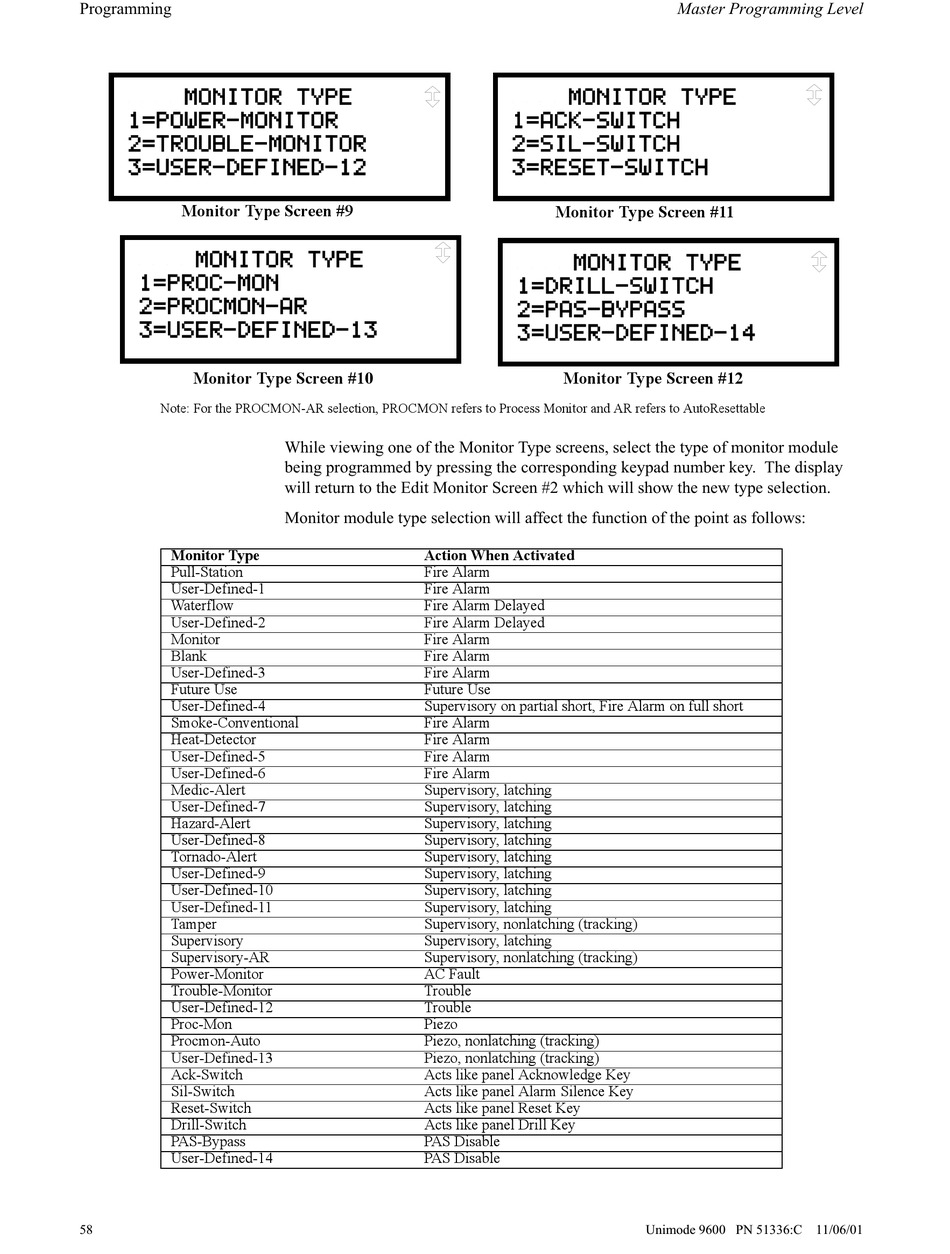

ADT Unimode 9600 Installation And Operating Instruction page 58

@@@@MONITOR@TYPE
1=POWER-MONITOR
2=TROUBLE-MONITOR
3=USER-DEFINED-12
Monitor Type Screen #9
@@@@MONITOR@TYPE
1=PROC-MON
2=PROCMON-AR
3=USER-DEFINED-13
Monitor Type Screen #10
Note: For the PROCMON-AR selection, PROCMON refers to Process Monitor and AR refers to AutoResettable
Monitor Type
Pull-Station
User-Defined-1
Waterflow
User-Defined-2
Monitor
Blank
User-Defined-3
Future Use
User-Defined-4
Smoke-Conventional
Heat-Detector
User-Defined-5
User-Defined-6
Medic-Alert
User-Defined-7
Hazard-Alert
User-Defined-8
Tornado-Alert
User-Defined-9
User-Defined-10
User-Defined-11
Tamper
Supervisory
Supervisory-AR
Power-Monitor
Trouble-Monitor
User-Defined-12
Proc-Mon
Procmon-Auto
User-Defined-13
Ack-Switch
Sil-Switch
Reset-Switch
Drill-Switch
PAS-Bypass
User-Defined-14
@@@@MONITOR@TYPE
1=ACK-SWITCH
2=SIL-SWITCH
3=RESET-SWITCH
Monitor Type Screen #11
@@@@MONITOR@TYPE
1=DRILL-SWITCH
2=PAS-BYPASS
3=USER-DEFINED-14
Monitor Type Screen #12
Action When Activated
Fire Alarm
Fire Alarm
Fire Alarm Delayed
Fire Alarm Delayed
Fire Alarm
Fire Alarm
Fire Alarm
Future Use
Supervisory on partial short, Fire Alarm on full short
Fire Alarm
Fire Alarm
Fire Alarm
Fire Alarm
Supervisory, latching
Supervisory, latching
Supervisory, latching
Supervisory, latching
Supervisory, latching
Supervisory, latching
Supervisory, latching
Supervisory, latching
Supervisory, nonlatching (tracking)
Supervisory, latching
Supervisory, nonlatching (tracking)
AC Fault
Trouble
Trouble
Piezo
Piezo, nonlatching (tracking)
Piezo, nonlatching (tracking)
Acts like panel Acknowledge Key
Acts like panel Alarm Silence Key
Acts like panel Reset Key
Acts like panel Drill Key
PAS Disable
PAS Disable
